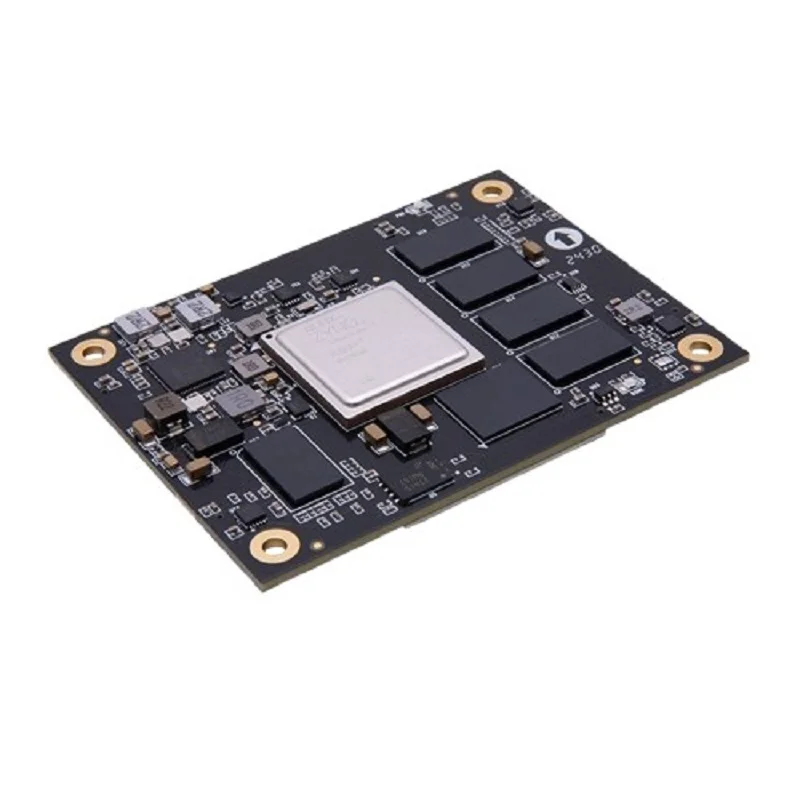

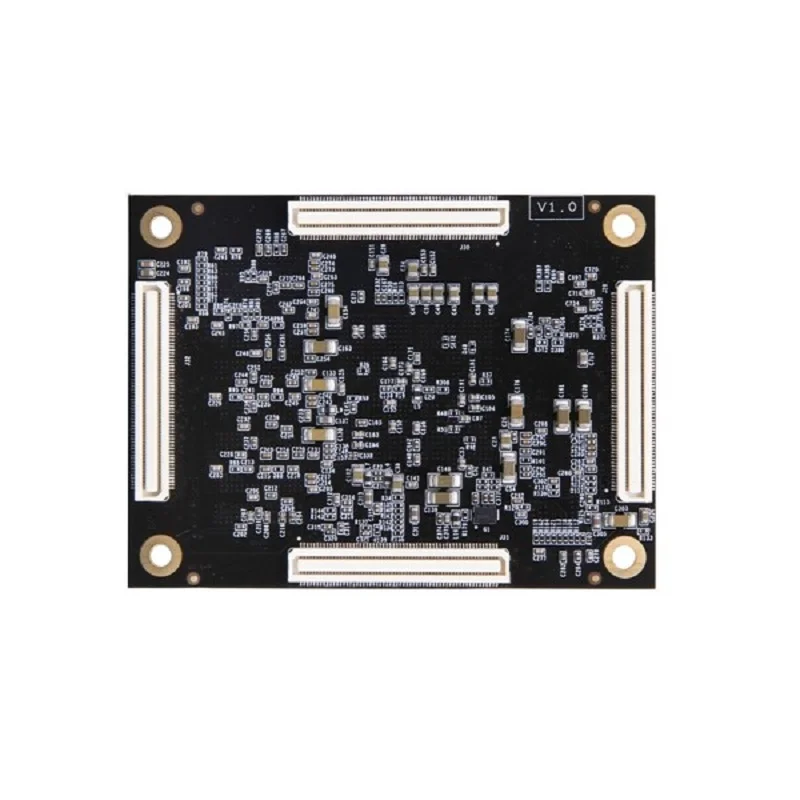

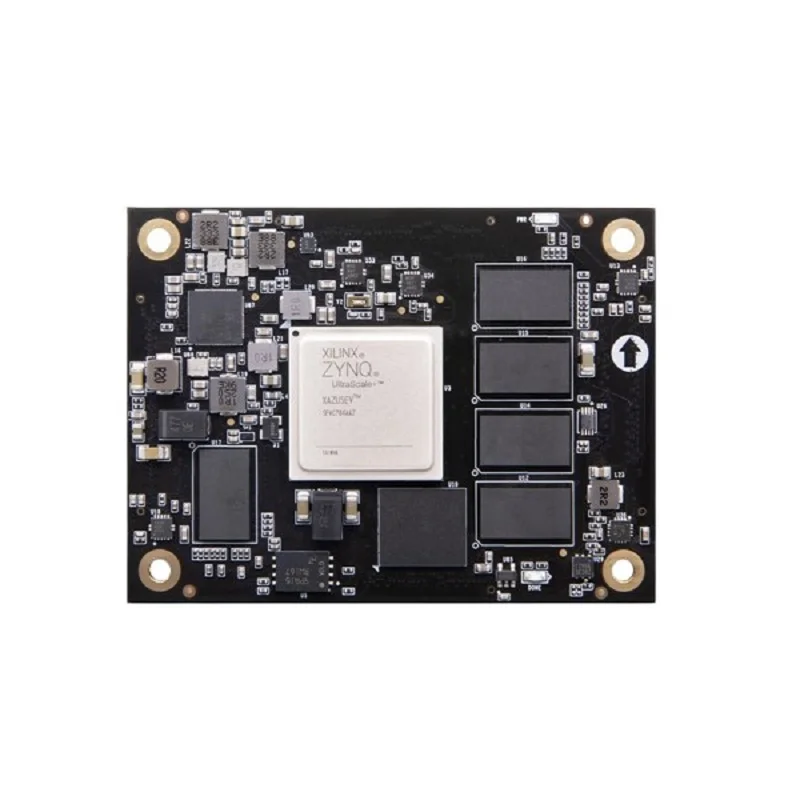

Alinx ACU5EV SoM AMD Zynq UltraScale+ MPSoC XCZU5EV
The Alinx ACU5EV SoM is a high-performance embedded processing system based on the AMD Zynq UltraScale+ MPSoC, integrating Quad-core Cortex-A53 and dual-core Cortex-R5 processors with extensive FPGA fabric for AI, vision, and 5G communication applications.
Features
- Powered by AMD Zynq UltraScale+ MPSoC XCZU5EV with Quad-core Cortex-A53 (1.3 GHz) & dual-core Cortex-R5 (533 MHz) for heterogeneous processing.
- Features 4 GB DDR4 SDRAM on PS and 1 GB DDR4 SDRAM on PL for high-speed data handling and FPGA acceleration.
- Includes 8 GB eMMC Flash and 32 MB QSPI Flash for robust, high-speed boot and data storage.
- Equipped with PCIe Gen3 x4 (PL) and PCIe Gen2 x4 (PS) interfaces for high-bandwidth expansion and connectivity.
- Industrial-grade operating temperature range from -40°C to +85°C ensures reliability in harsh environments.
Out of stock
The Alinx ACU5EV System-on-Module (SoM) delivers a complete, production-ready embedded platform centered on the AMD/Xilinx Zynq UltraScale+ MPSoC architecture. It combines a powerful application processing unit (APU) with a high-logic-density programmable fabric, enabling complex algorithm offloading and hardware acceleration. The module is built on 16nm FinFET+ technology, offering a balance of performance and power efficiency for compute-intensive tasks.
High-speed serial transceivers, including 4 PS-GTR lanes (up to 6 Gbps) and 4 PL GTH lanes (up to 12.5 Gbps for ZU4/5), provide the backbone for high-bandwidth communication protocols like PCIe and DisplayPort. This makes the SoM ideal for interfacing with high-resolution cameras, network interfaces, and custom FPGA IP cores. The board is supplied by a single 12V input, simplifying power system design for integration into larger systems.
Additional Information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 9 × 8 × 3 cm |
