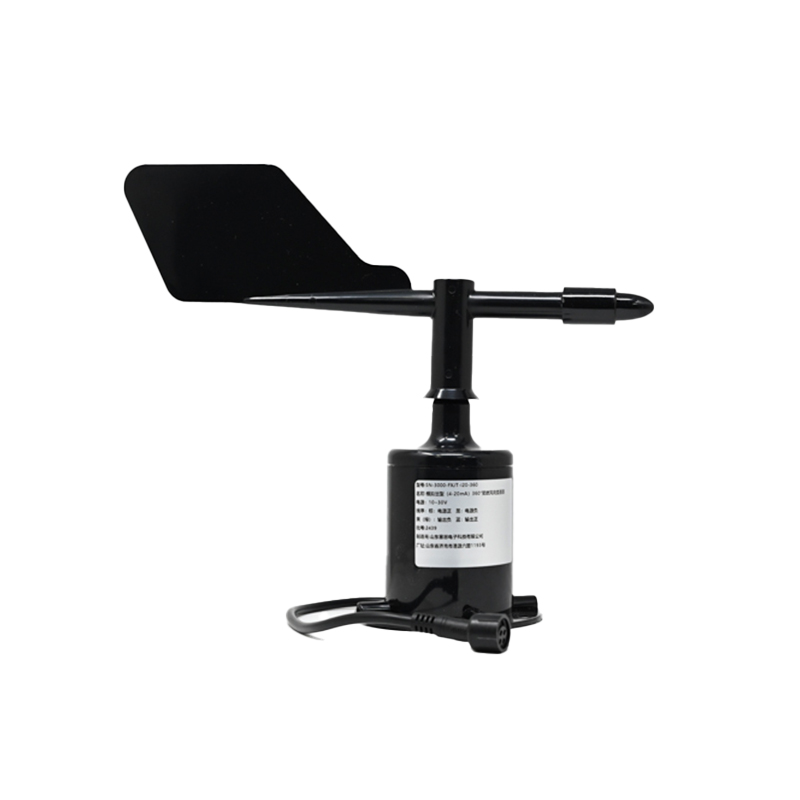

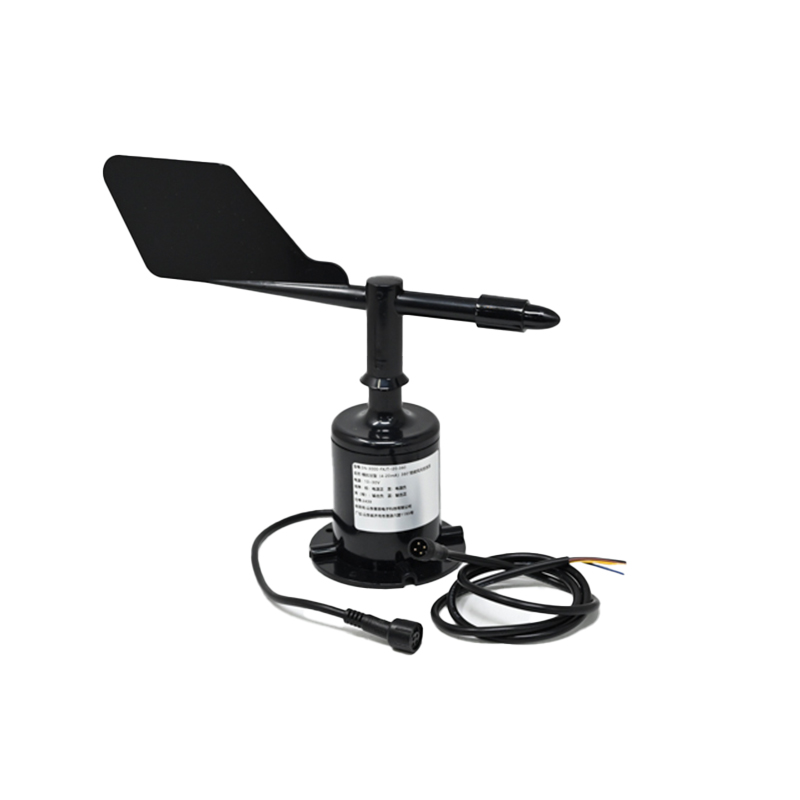

Pro-Range SN-3000-FXJT-I20-360 Wind Direction Sensor - 4-20mA Output, Polycarbonate Shell

Name: Pro-Range SN-3000-FXJT-I20-360 Wind Direction Sensor - 4-20mA Output, Polycarbonate Shell
Brand: Pro-Range
SKU: SENS-0445
Price: 1579.00 INR
Availability: OutOfStock

₹1,579.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range SN-3000-FXJT-I20-360 is a precision wind direction transmitter delivering a 4-20mA analog signal for seamless integration with industrial PLCs, data loggers, and SCADA systems. Its robust polycarbonate housing ensures reliable 0-360° measurement in demanding outdoor environments.

Features

High-precision 360° wind direction measurement with ±0.3° accuracy.
Standard 4-20mA current loop output for industrial control compatibility.
Durable polycarbonate composite shell with high UV and corrosion resistance.
Low-friction imported bearing system for sensitive and accurate response.
Wide operating voltage range from DC 12-24V.

Out of stock

Get Notified When Available

Description

The SN-3000-FXJT-I20-360 wind direction sensor employs a precision potentiometer coupled to a low-inertia vane assembly, translating angular position into a proportional 4-20mA analog signal. This robust design ensures stable, noise-immune data transmission over long cable runs, ideal for industrial monitoring networks.

Engineered for permanent outdoor installation, the sensor’s polycarbonate housing provides exceptional mechanical strength and resistance to environmental exposure, salt spray, and temperature extremes from -20°C to +60°C. The integrated anti-electromagnetic interference (EMI) circuitry guarantees signal integrity in electrically noisy environments.

Key Features

Full 0-359.9° continuous measurement range for precise wind direction monitoring.
Industrial-standard 4-20mA two-wire current output ensures compatibility with most PLCs and controllers.
High-performance imported bearings minimize rotational resistance and hysteresis.
Polycarbonate composite construction offers high impact strength and long-term weatherproof durability.
Optimized mechanical design with low moment of inertia for fast and sensitive response to wind shifts.
Supports flexible 3-wire or 4-wire connection methods for simplified installation.
Wide supply voltage range (DC 12-24V) accommodates various industrial power supplies.

Applications

Industrial weather station networks for environmental monitoring and reporting.
Wind resource assessment and turbine yaw control in renewable energy installations.
Port, harbor, and maritime navigation safety systems.
Agricultural and greenhouse climate control and ventilation management.
Airport and aviation weather observation systems.

Technical Specifications

Manufacturer Part Number	SN-3000-FXJT-I20-360
Measurement Range	0 - 359.9°
Output Signal	4-20mA
Supply Voltage	DC 12-24V
Operating Temperature	-20°C to +60°C
Housing Material	Polycarbonate Composite
Accuracy	±0.3°
Item Type	Wind Direction Sensor / Transmitter

Frequently Asked Questions

What is the output signal of this wind direction sensor?

This specific model (SN-3000-FXJT-I20-360) is configured for a standard two-wire 4-20mA analog current loop output. At 0° wind direction, it outputs 4mA, scaling linearly to 20mA at 360°. This signal is highly resistant to noise and voltage drop over long cable runs.

What power supply is required for the 4-20mA model?

The sensor requires a DC power supply within the 12-24V range. The 4-20mA output loop is powered directly from this supply. Ensure your data acquisition system or PLC can provide loop power or use an external DC power supply compatible with a two-wire transmitter.

How is the sensor mounted and what is its environmental rating?

The sensor is typically mounted on a vertical mast using its integrated base. The polycarbonate housing provides robust protection against UV exposure, corrosion, and impact, but a specific IP rating is not provided by the manufacturer. It is designed for continuous outdoor operation in temperatures from -20°C to +60°C.
