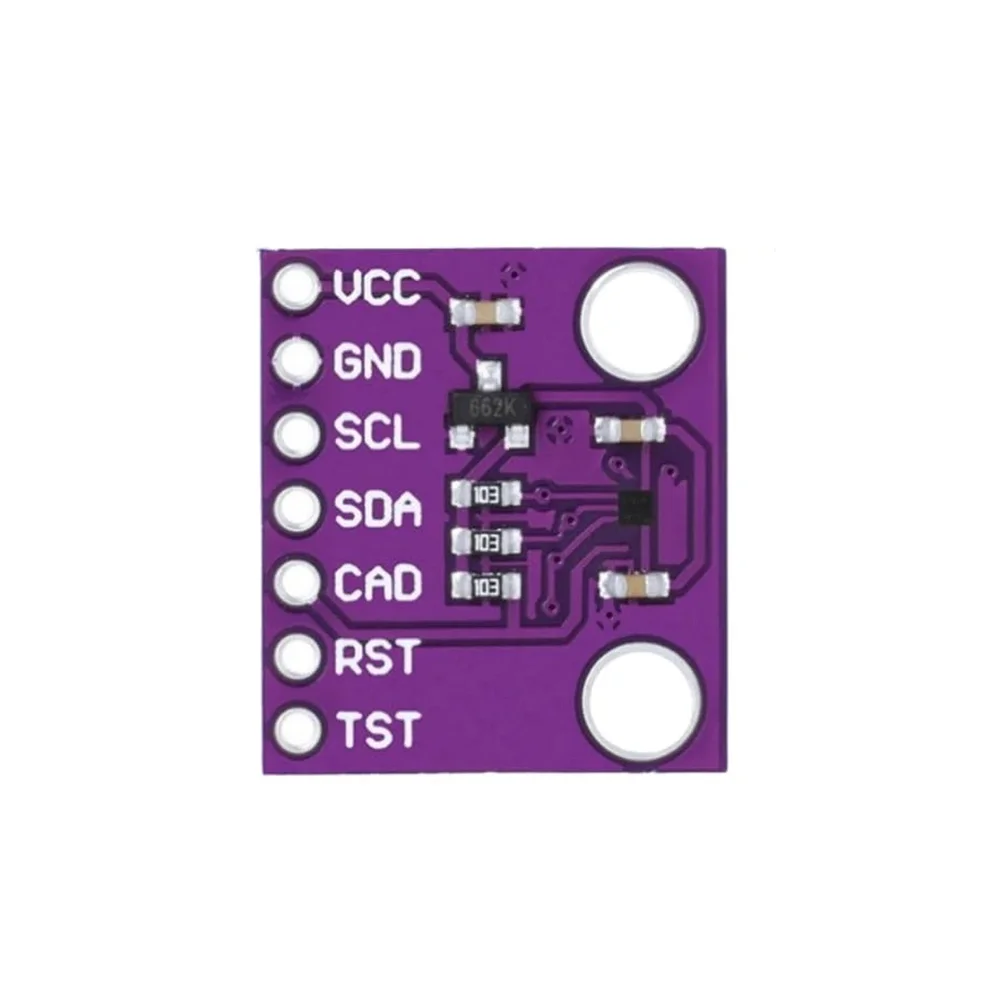

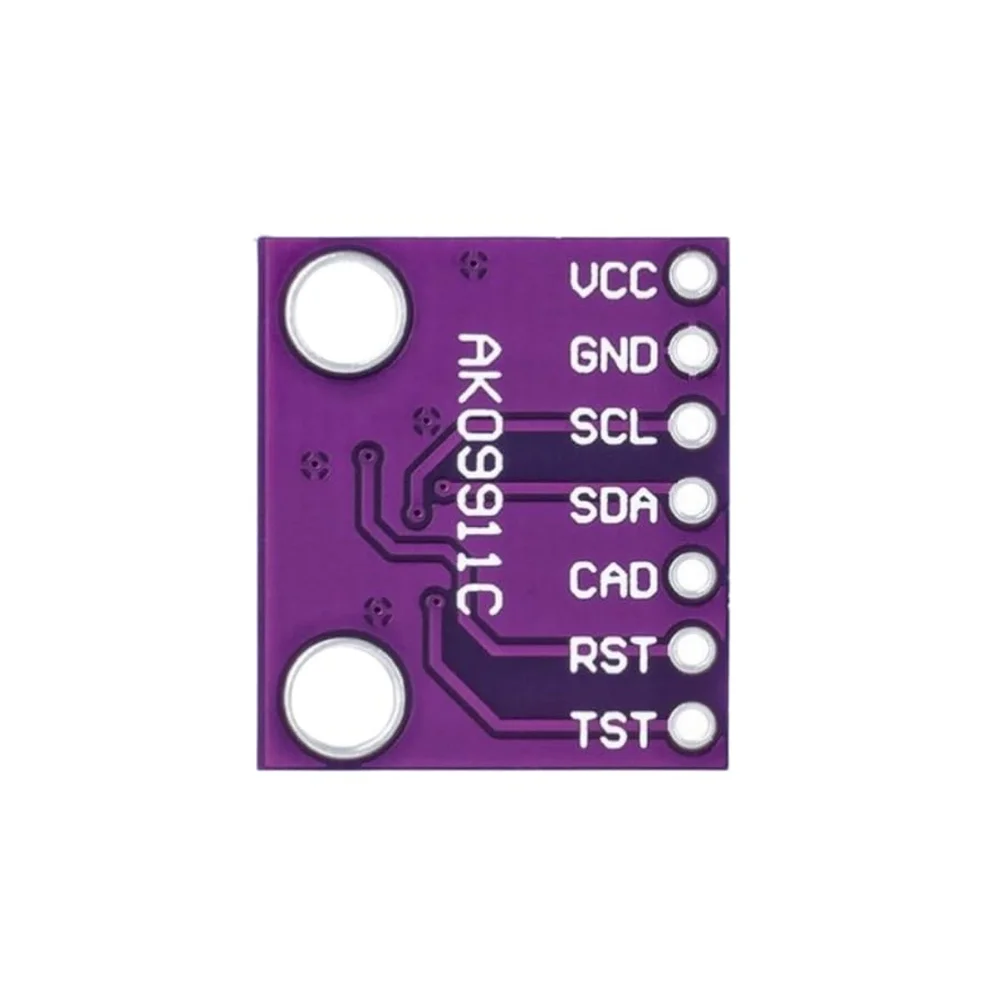

AKM AK09911C Geomagnetic Hall Sensor Module - I2C Interface
The MCU-9911 module integrates the AKM AK09911C three-axis geomagnetic sensor, providing high-resolution magnetic field measurement via a standard I2C interface for integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers in navigation and orientation systems.
Features
- High-performance AK09911C three-axis geomagnetic Hall sensor with 14-bit ADC.
- Typical sensitivity of 0.6µT/LSB for precise magnetic field detection.
- Standard I2C serial communication interface for easy microcontroller integration.
- Supports single, continuous, self-test, and power-off operating modes.
- Compact 19 x 16 x 2 mm module footprint suitable for portable electronics.
Out of stock
The AK09911C is a three-axis geomagnetic sensor utilizing high-sensitivity Hall effect technology to detect magnetic field strength and direction. Its integrated 14-bit analog-to-digital converter (ADC) provides digital output with a typical resolution of 0.6µT per LSB, enabling accurate heading and orientation calculations for digital compass applications.
The module communicates via a standard I2C bus, offering flexible operating modes including single-shot and continuous measurement, along with built-in self-test and Fuse ROM access functions. This design ensures reliable performance in embedded systems requiring stable magnetic sensing, from consumer electronics to industrial navigation platforms.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.9 × 1.6 × 0.2 cm |
