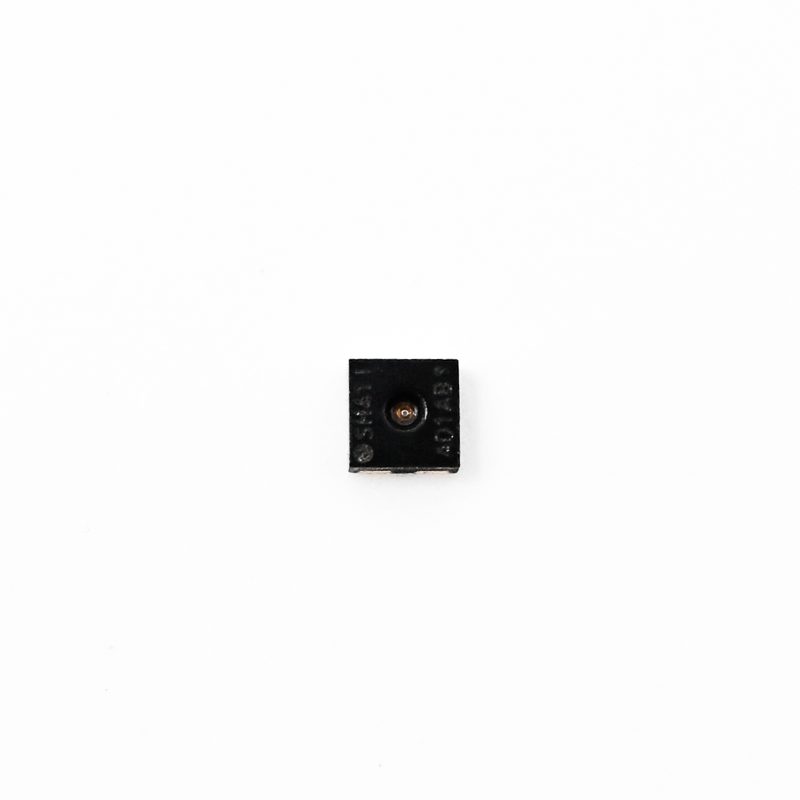

Sensirion SHT41I-AD1B-R2 Humidity & Temperature Sensor - I2C Interface, NIST-Traceable

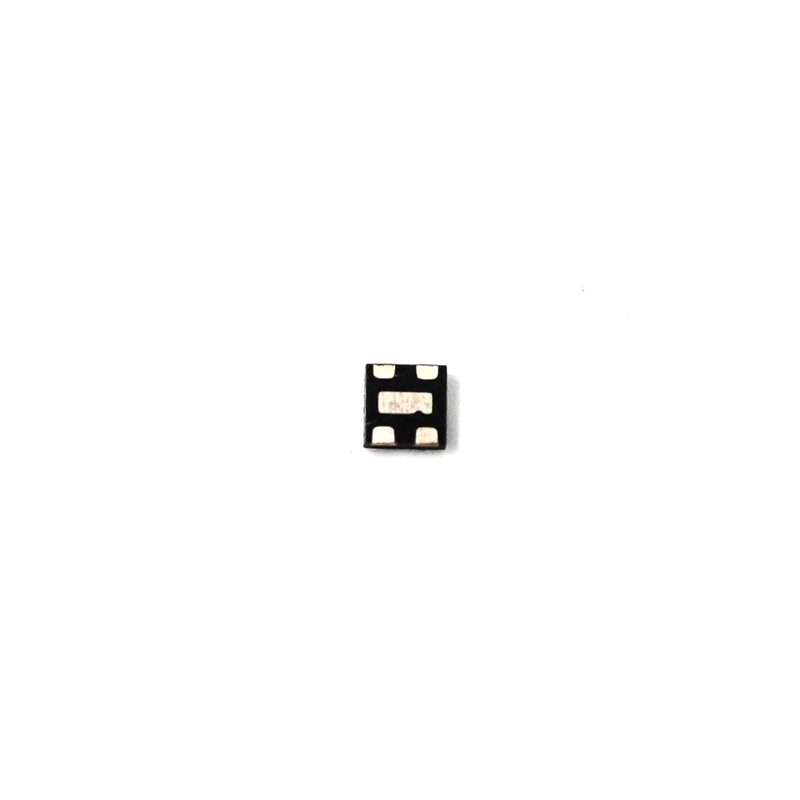

Sensirion SHT41I-AD1B-R2 Humidity & Temperature Sensor - I2C Interface, NIST-Traceable - Image 2
SKU: SENS-1005
📋 GST Invoice Available

Sensirion SHT41I-AD1B-R2 Humidity & Temperature Sensor - I2C Interface, NIST-Traceable

₹249.00 (Inclusive of all taxes)
Out of Stock

The Sensirion SHT41I-AD1B-R2 is an industrial-grade digital humidity and temperature sensor with an I2C interface, offering high accuracy and NIST-traceable calibration for reliable environmental monitoring in embedded systems, industrial PLCs, and HVAC applications.

Features

  • High accuracy: ±1.5% RH and ±0.3°C typical
  • I2C digital interface with analog voltage output option
  • Wide operating range: -40°C to +125°C, 0–100% RH
  • Fast response times: 4 seconds (RH), 2 seconds (temperature)
  • Individually calibrated and NIST-traceable per ISO/IEC 17025

Out of stock

Description

The SHT41I-AD1B-R2 from Sensirion is a premium industrial humidity and temperature sensor built on the company’s proven CMOSens® technology. It combines a capacitive polymer sensing element for humidity with a band-gap temperature sensor, delivering calibrated digital I2C signals and simultaneous analog voltage outputs for both parameters. This dual-output capability provides flexibility for direct analog-to-digital conversion or straightforward digital communication with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.

Engineered for harsh environments, the sensor features robust ESD protection (2 kV HBM) and can withstand supply voltages up to 6V. Its fast response and excellent long-term stability make it ideal for demanding applications requiring precise and reliable environmental data logging, process control, and compliance monitoring.

Key Features

  • High-accuracy sensing with ±1.5% RH and ±0.3°C typical performance.
  • Dual-output interface: digital I2C and calibrated analog voltage (40 mV/%RH, 23 mV/°C).
  • Extended operating temperature from -40°C to +125°C for industrial use.
  • Ultra-low power consumption with an average current of 80 nA.
  • Robust design with integrated ESD protection for enhanced reliability.
  • Fully calibrated and NIST-traceable, ensuring measurement integrity.
  • Fast response times enable real-time monitoring and control.
  • Compact SMD package (2.0 x 2.0 x 0.8 mm) for space-constrained designs.

Applications

  • Industrial process monitoring and control systems
  • HVAC and building automation for climate control
  • Precision agriculture and greenhouse environmental monitoring
  • Medical device and pharmaceutical storage compliance
  • Data center and server rack thermal management

Technical Specifications

Manufacturer Part NumberSHT41I-AD1B-R2
BrandSensirion
Sensor TypeHumidity & Temperature
Humidity Accuracy±1.5% RH (typical)
Temperature Accuracy±0.3°C (typical)
Humidity Range0 to 100% RH
Temperature Range-40°C to +125°C
InterfaceI2C, Analog Voltage Output
Analog Output Sensitivity40 mV/%RH, 23 mV/°C
Response Time (RH)4 seconds
Response Time (Temperature)2 seconds
Supply VoltageUp to 6 V
Average Current80 nA
ESD Protection2 kV HBM
CalibrationIndividual, NIST-traceable (ISO/IEC 17025)
Package Dimensions (L x W x H)2.0 mm x 2.0 mm x 0.8 mm
WeightApprox. 0.005 g

Frequently Asked Questions

What is the primary output interface of the SHT41I-AD1B-R2 sensor?

The SHT41I-AD1B-R2 provides a primary digital I2C interface for communication with microcontrollers. Additionally, it offers simultaneous, calibrated analog voltage outputs for both humidity (40 mV/%RH) and temperature (23 mV/°C), allowing for flexible integration into both digital and analog measurement systems.

What is the operating voltage range and power consumption?

The sensor is robust and can operate with a supply voltage up to 6V. It features ultra-low power consumption, with an average operating current of just 80 nA, making it suitable for battery-powered and energy-efficient industrial monitoring applications.

How is the sensor calibrated and what does NIST-traceable mean?

Each SHT41I-AD1B-R2 sensor is individually calibrated at the factory. The calibration is NIST-traceable, meaning it is performed in an ISO/IEC 17025 accredited laboratory, ensuring the measurements are consistent with international standards. This provides high confidence in data accuracy for compliance and quality control purposes.

Can this sensor be used in harsh industrial environments?

Yes, it is designed for industrial use. It operates across an extended temperature range of -40°C to +125°C and 0-100% RH. The device also includes integrated ESD protection (2 kV HBM), enhancing its durability and reliability in electrically noisy or harsh environmental conditions.

Package Includes

  • 1 x Sensirion SHT41I-AD1B-R2 Humidity & Temperature Sensor

Additional Information

Weight 0.000005 kg
Dimensions 0.2 × 0.2 × 0.08 cm
