AI-Thinker TB-03F Bluetooth 5.0 Mesh Module
The AI-Thinker TB-03F is a Bluetooth 5.0 low-power mesh module based on the TLSR8253 chip, designed for direct integration with Tmall Genie and smart lighting systems. Operating from 2.7V to 3.6V, it provides robust short-range wireless communication for IoT applications.
Features
- Bluetooth 5.0 Low Energy (BLE) module with integrated mesh networking for Tmall Genie ecosystem.

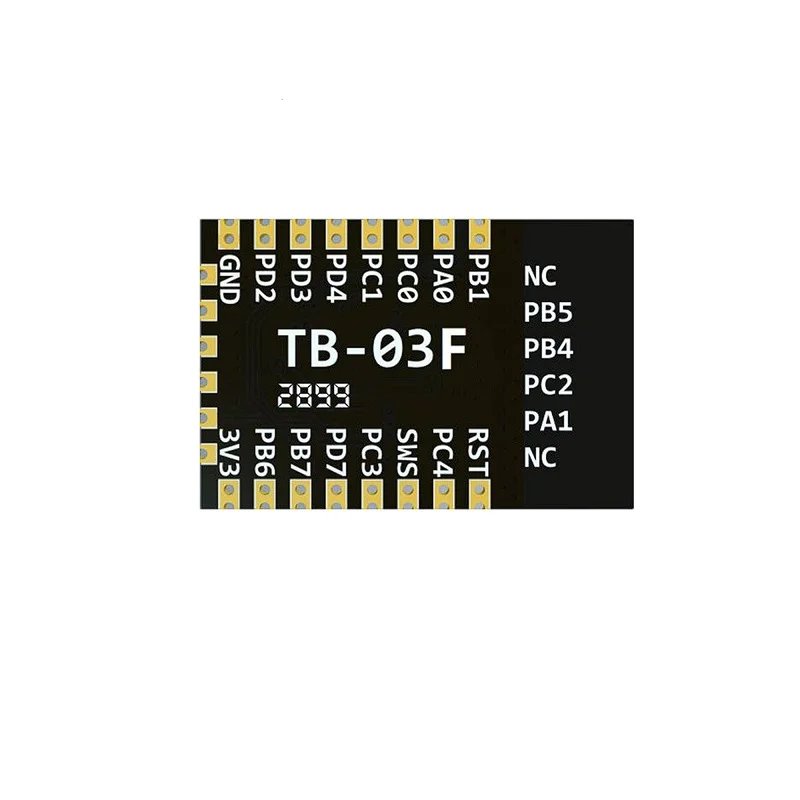

- Based on TLSR8253 SoC, featuring 6 PWM outputs, SPI, ADC, I2S, and GPIO interfaces for flexible control.
- On-board PCB antenna eliminates external antenna design, simplifying PCB layout and integration.
- Ultra-low power consumption with deep sleep current as low as 0.4µA, ideal for battery-operated devices.
- SMD-22 package form factor suitable for high-volume, automated PCB assembly in consumer IoT products.
Out of stock

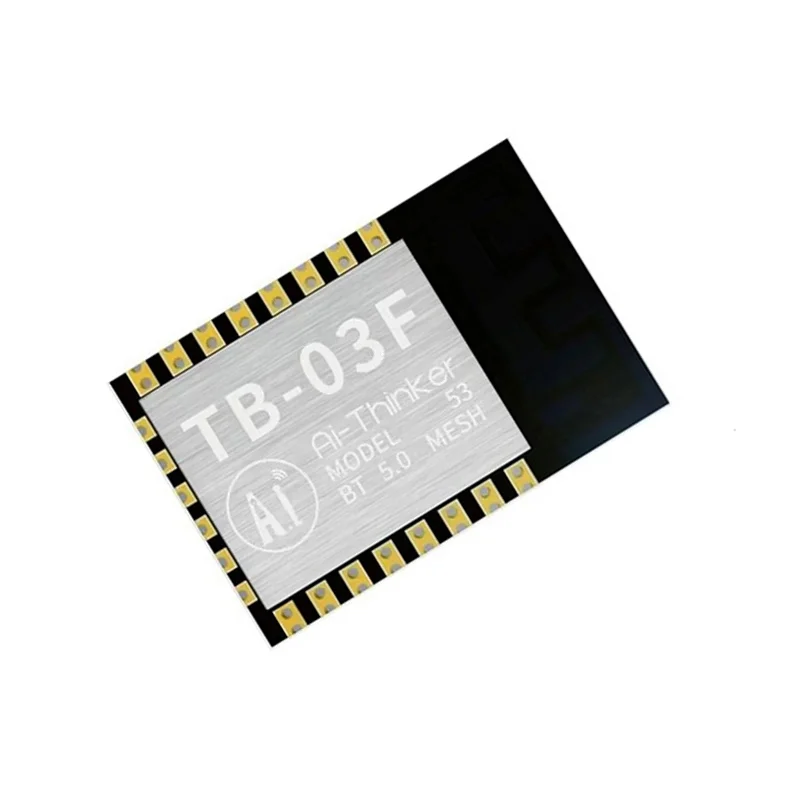

The AI-Thinker TB-03F intelligent lighting module is a highly integrated Bluetooth 5.0 transceiver built around the TLSR8253 system-on-chip. It is engineered for the Tmall Genie Mesh ecosystem, enabling direct voice control and device-to-device communication without a central gateway. The module utilizes Bluetooth broadcast and star network topologies to ensure low-latency responses in multi-device environments, making it suitable for real-time control scenarios.
Architecturally, the TB-03F supports multiple sleep modes to optimize energy efficiency, with a deep sleep current of 0.4µA, extending battery life in wireless sensor nodes. Its integrated on-board antenna simplifies RF design and reduces BOM cost. The module provides a comprehensive set of digital and analog interfaces, including six dedicated PWM channels for precise dimming and color temperature control in LED lighting applications, with a factory-default 50% duty cycle for cool and warm colors.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
