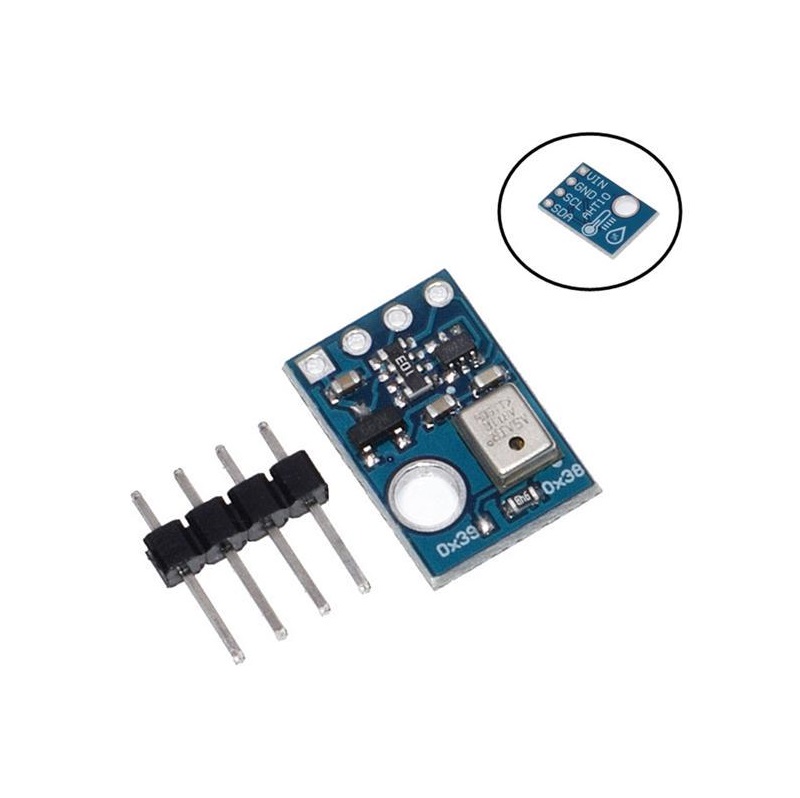

AHT10 High Precision Digital Temperature & Humidity Sensor Module - I2C Interface
The AHT10 is a high-precision digital temperature and humidity sensor module with a calibrated I2C digital output, compatible with 1.8V to 6.0V logic systems including Arduino, Raspberry Pi, ESP32, and STM32 microcontrollers.
Features

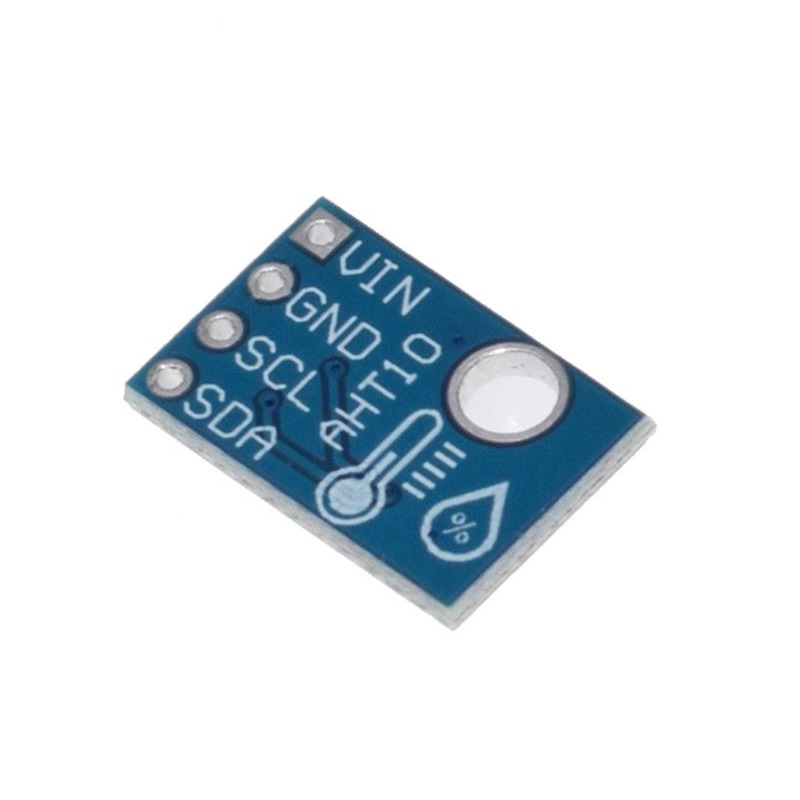

- High-precision digital output via I2C interface with 4-pin 2.54mm pitch header.
- Wide operating voltage range from 1.8V to 6.0V for versatile system integration.
- Typical humidity accuracy of ±2% RH and temperature accuracy of ±0.3°C.
- Compact SMD package (4 x 5 x 1.6 mm) designed for reflow soldering.
- Operates reliably across an extended temperature range from -40°C to +80°C.
Out of stock
The AHT10 sensor module represents a new generation of integrated environmental sensors, combining an improved MEMS capacitive humidity sensing element with a standard on-chip temperature sensor. It is driven by a dedicated ASIC which outputs fully calibrated digital signals in a standard I2C format, eliminating the need for external signal conditioning.
Engineered for stability in harsh environments, the sensor’s performance surpasses previous generations. Its ultra-compact, dual-row flat leadless SMD package is optimized for automated assembly and space-constrained applications, making it ideal for modern IoT and embedded systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3 × 2 × 1 cm |
