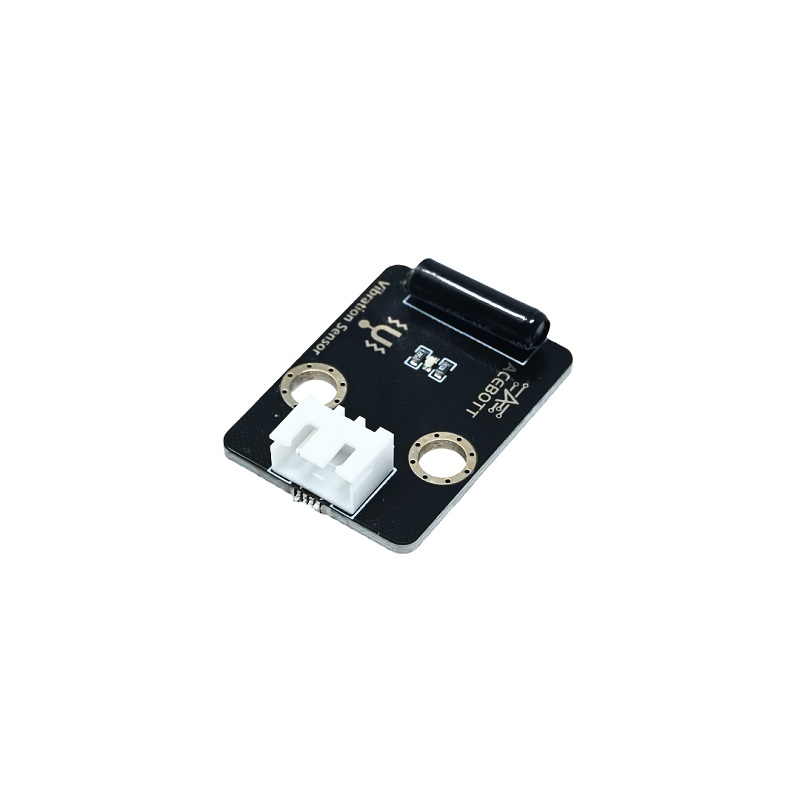

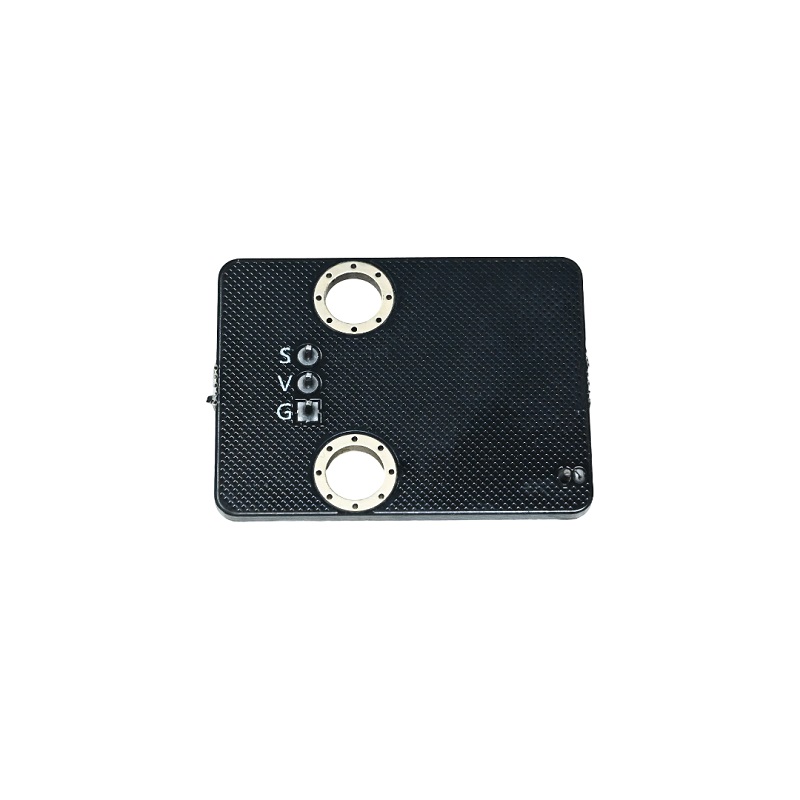

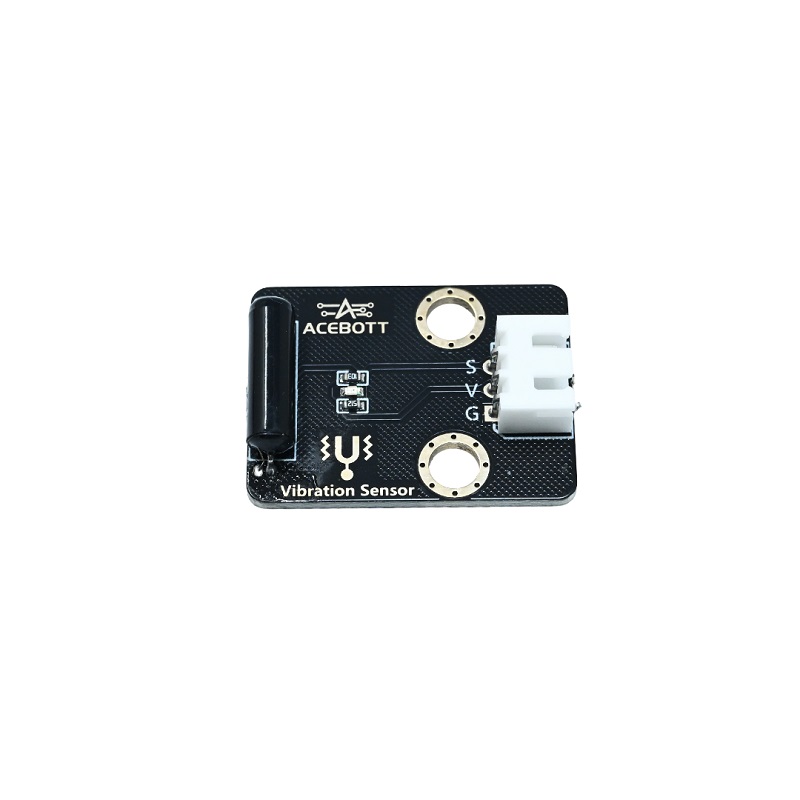

ACEBOTT SW-18010P Vibration Sensor Module - Easy-Plug Interface for ESP32/Arduino
The ACEBOTT Vibration Sensor Module integrates the SW-18010P high-sensitivity spring switch, providing a digital output signal compatible with 3.3V/5V logic systems like Arduino and ESP32 via its Easy-Plug interface for rapid prototyping and security applications.
Features
- High-sensitivity SW-18010P spring-based vibration switch for non-directional detection.
- Easy-Plug interface ensures quick, solderless connection to Arduino and ESP32 development boards.
- Digital output (high/low) provides a clean, easy-to-process signal for microcontrollers.
- Wide 3.3V to 5V DC operating voltage range for flexible system integration.
- Compact module design with integrated signal conditioning circuitry.
Out of stock
This vibration sensor module employs the SW-18010P, a mechanical spring-based switch that acts as a non-directional vibration transducer. In a static state, the internal circuit is open, and the signal output pin (S) remains at a logic high level. Upon experiencing vibration or shock, the spring deforms, causing the central electrode to make contact and close the circuit, pulling the output pin to a logic low level. This provides a clear digital trigger signal for event detection.
The module includes onboard signal conditioning and is presented with an Easy-Plug connector system, eliminating the need for soldering and simplifying integration into breadboard-based projects with Arduino, ESP32, and other 3.3V/5V microcontroller platforms. It is designed for applications requiring reliable, low-cost vibration or impact detection.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 5 × 2 cm |
