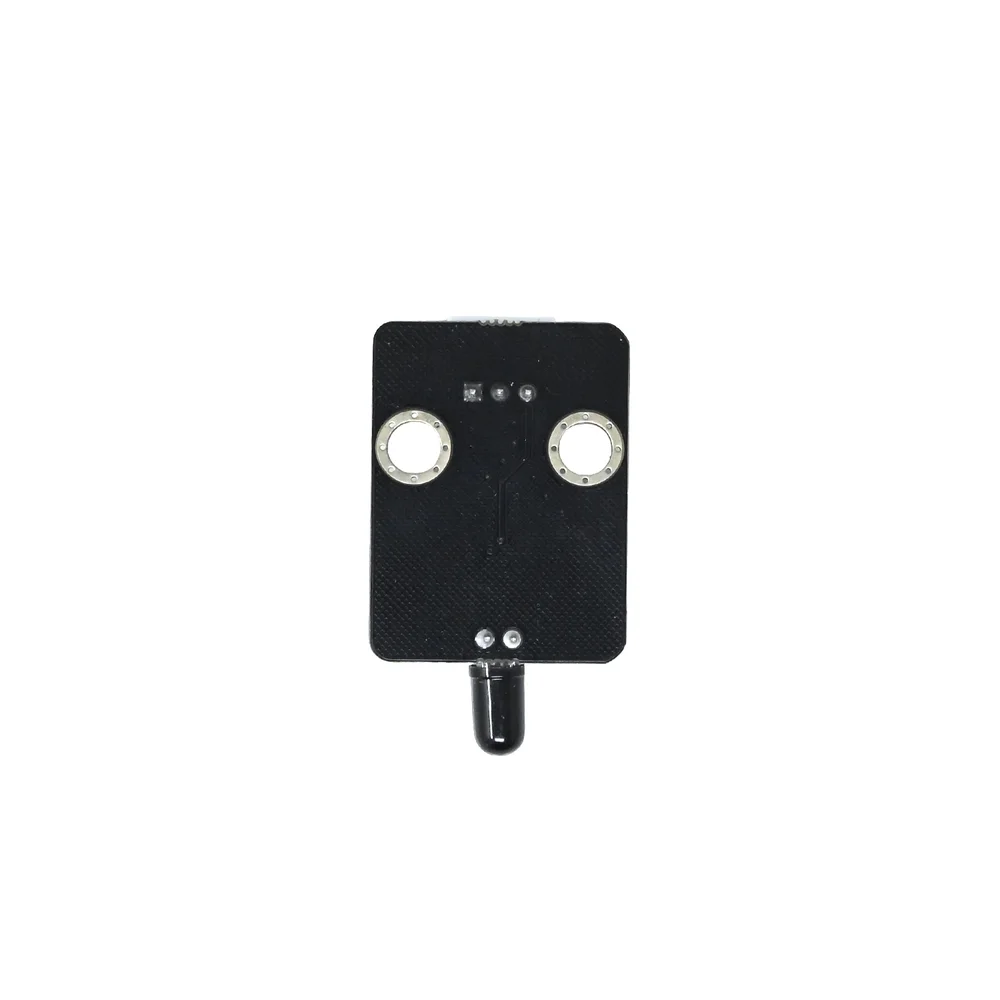

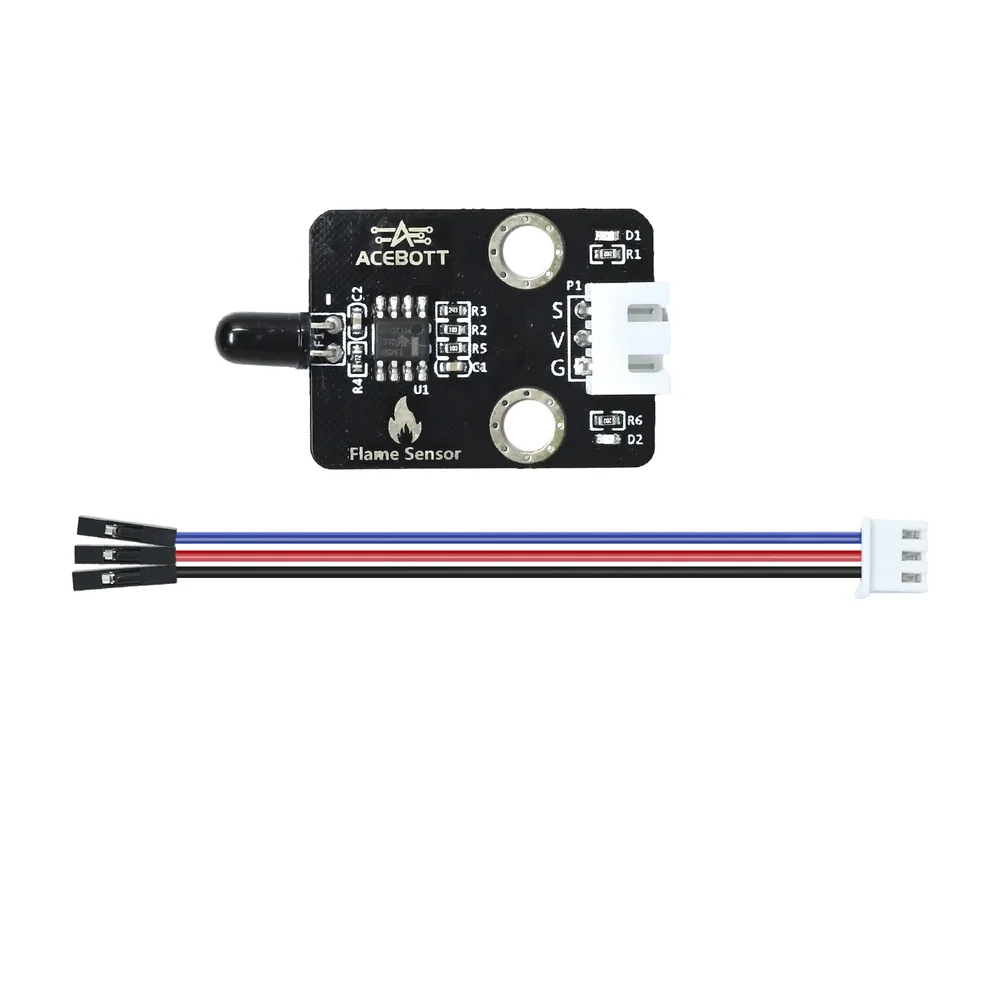

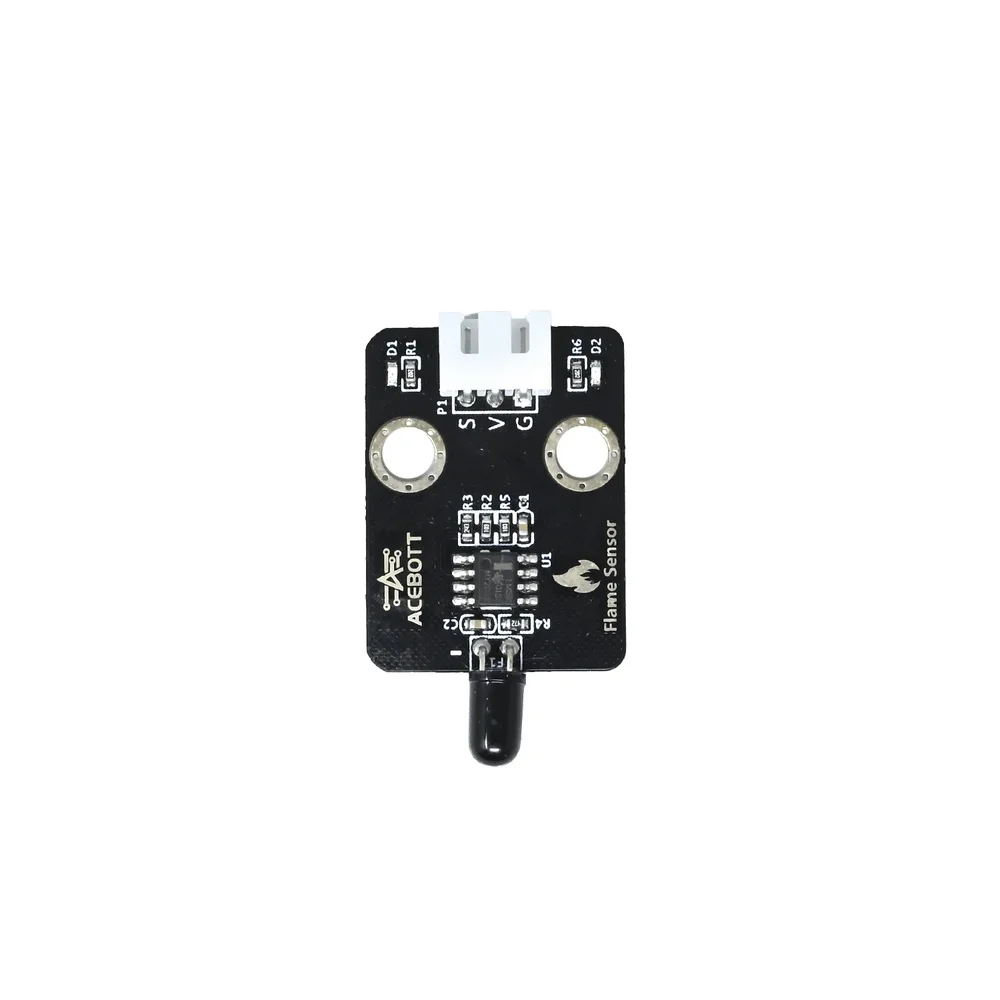

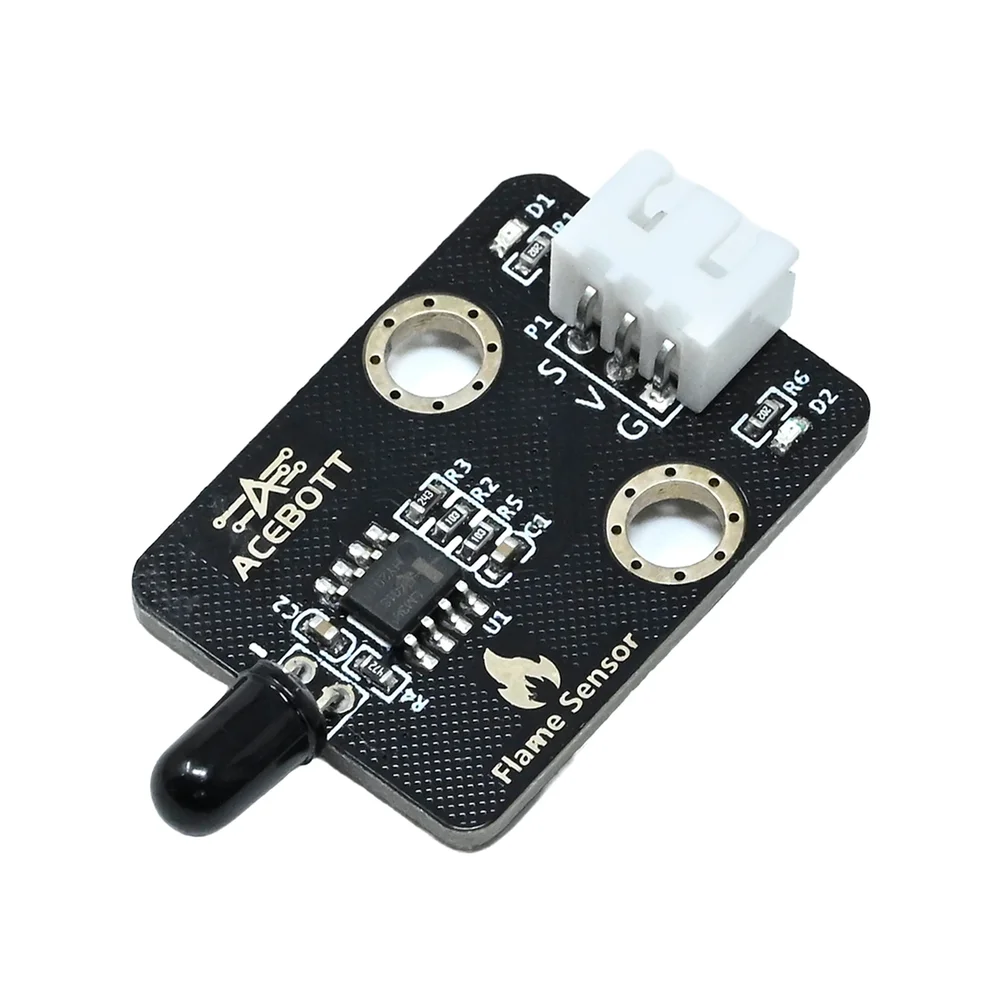

ACEBOTT QB083 Flame Sensor Easy-Plug Module - Digital Output
The ACEBOTT QB083 Flame Sensor Module is an infrared detection module compatible with 3.3V/5V logic systems like Arduino and ESP32. It provides a digital output signal for reliable flame or IR source detection within the 760 nm to 1100 nm wavelength range.
Features
- Detects infrared wavelengths from 760 nm to 1100 nm for flame sensing.
- Wide 3.3V to 5V DC operating voltage range for compatibility with Arduino, ESP32, and other microcontrollers.
- Digital output signal with default high-level state for straightforward logic interfacing.
- Easy-Plug interface simplifies wiring and reduces connection errors for rapid prototyping.
- Compact PCB design measuring 31.6mm x 23.8mm for space-constrained applications.
Out of stock
The ACEBOTT QB083 is an infrared flame detection module designed for integration into microcontroller-based safety and monitoring systems. It operates on the principle of detecting specific infrared radiation emitted by flames within the 760 nm to 1100 nm spectral band, providing a clean digital signal for immediate processor response.
Engineered for reliability, the module functions across an industrial temperature range of -10°C to +60°C, supporting deployment in various environments. Its digital output defaults to a logic high state, transitioning to low upon flame detection, enabling simple integration with interrupt or polling routines on platforms like Arduino, ESP32, and Raspberry Pi.
Additional Information
| Dimensions | 2.38 × 3.16 cm |
|---|
