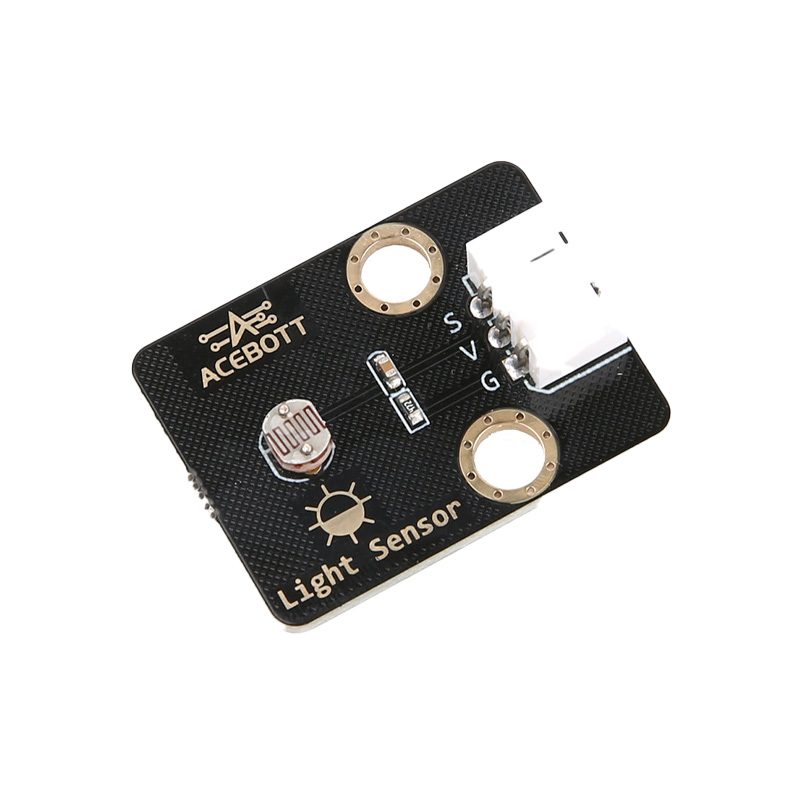

ACEBOTT QB068 Photosensitive Sensor Module - Analog Output, Easy-Plug
The ACEBOTT QB068 Photosensitive Sensor Module is an analog-output LDR (Light Dependent Resistor) designed for ambient light detection and measurement. It operates on a 3.3V to 5V DC supply, making it directly compatible with ESP32, Arduino, and other 3.3V/5V microcontroller platforms for IoT and automation projects.
Features
- Analog output signal proportional to ambient light intensity.
- Wide operating voltage range of 3.3V to 5V DC for flexible system integration.
- Easy-Plug connector design for rapid prototyping and simplified wiring.
- Compact PCB footprint of 31.6mm x 23.8mm for space-constrained applications.
- Operating temperature range from -10°C to +50°C for indoor and protected environments.
Out of stock
The ACEBOTT QB068 is a photoresistor-based light sensor module. Its core component is a cadmium sulfide (CdS) cell whose electrical resistance decreases with increasing incident light intensity. This analog resistance change is presented as a variable voltage signal on the module’s output pin, which can be read by a microcontroller’s ADC (Analog-to-Digital Converter) to quantify light levels.
The module includes necessary signal conditioning and is pre-configured for direct connection to development boards via its Easy-Plug interface. This design eliminates the need for external pull-up resistors or complex circuitry, providing a straightforward solution for integrating light-sensing capabilities into projects ranging from simple ambient light triggers to more complex data-logging systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 2.38 × 3.16 cm |
