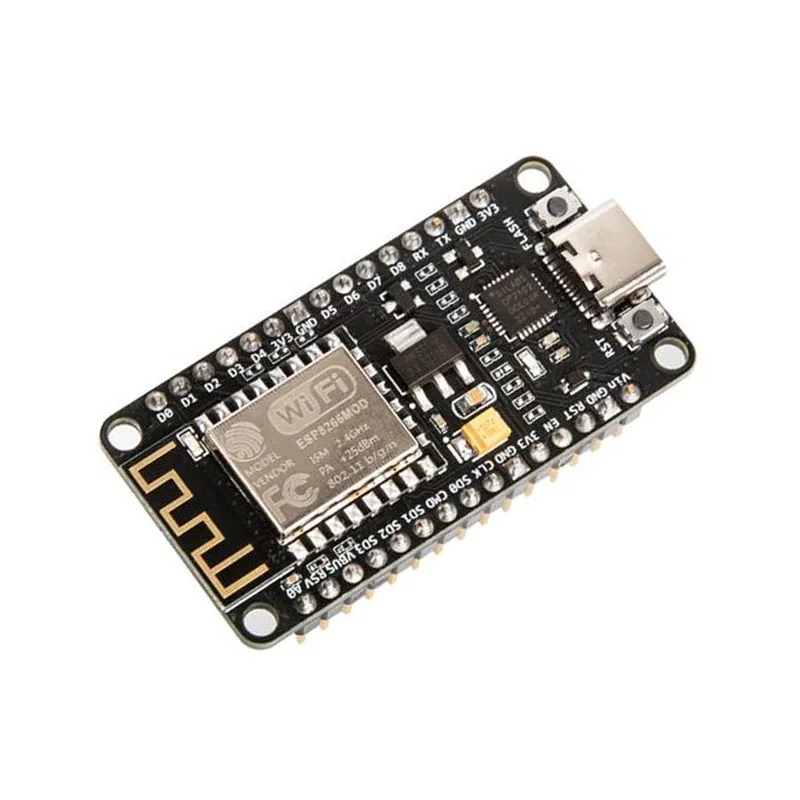

ACEBOTT QA010 ESP8266 Wi-Fi Development Board w/ Type-C
The ACEBOTT QA010 is a compact ESP8266-based Wi-Fi development board featuring an integrated Tensilica L106 microcontroller and a complete TCP/IP stack, programmable via Arduino IDE or ESP-IDF for IoT applications.
Features
- Powered by the ESP8266 SoC with a 32-bit Tensilica L106 microcontroller, supporting 80 MHz and 160 MHz clock frequencies for flexible processing.
- Supports IEEE 802.11 b/g/n Wi-Fi standards with an integrated on-board PCB antenna for robust wireless connectivity.
- Features a modern Type-C USB connector for reliable power supply and serial programming.
- Provides extensive I/O including UART, GPIO, ADC, PWM, SPI, and I2C for sensor integration and peripheral control.
- Operates across a wide industrial temperature range from -40°C to 85°C for reliable performance in diverse environments.
Out of stock
The ACEBOTT QA010 ESP8266 V1.0 development board is engineered for seamless integration of Wi-Fi into embedded systems and IoT prototypes. Its core is the ESP8266 SoC, which combines a low-power 32-bit Tensilica L106 RISC processor with a full Wi-Fi MAC/BB/RF/PA/LNA, enabling standalone applications or as a Wi-Fi co-processor.
With a complete TCP/IP protocol stack onboard, it simplifies network connectivity for data logging, remote control, and MQTT-based telemetry. The board’s compact footprint and comprehensive GPIO suite make it ideal for space-constrained designs requiring wireless communication.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 4.96 × 2.54 cm |
