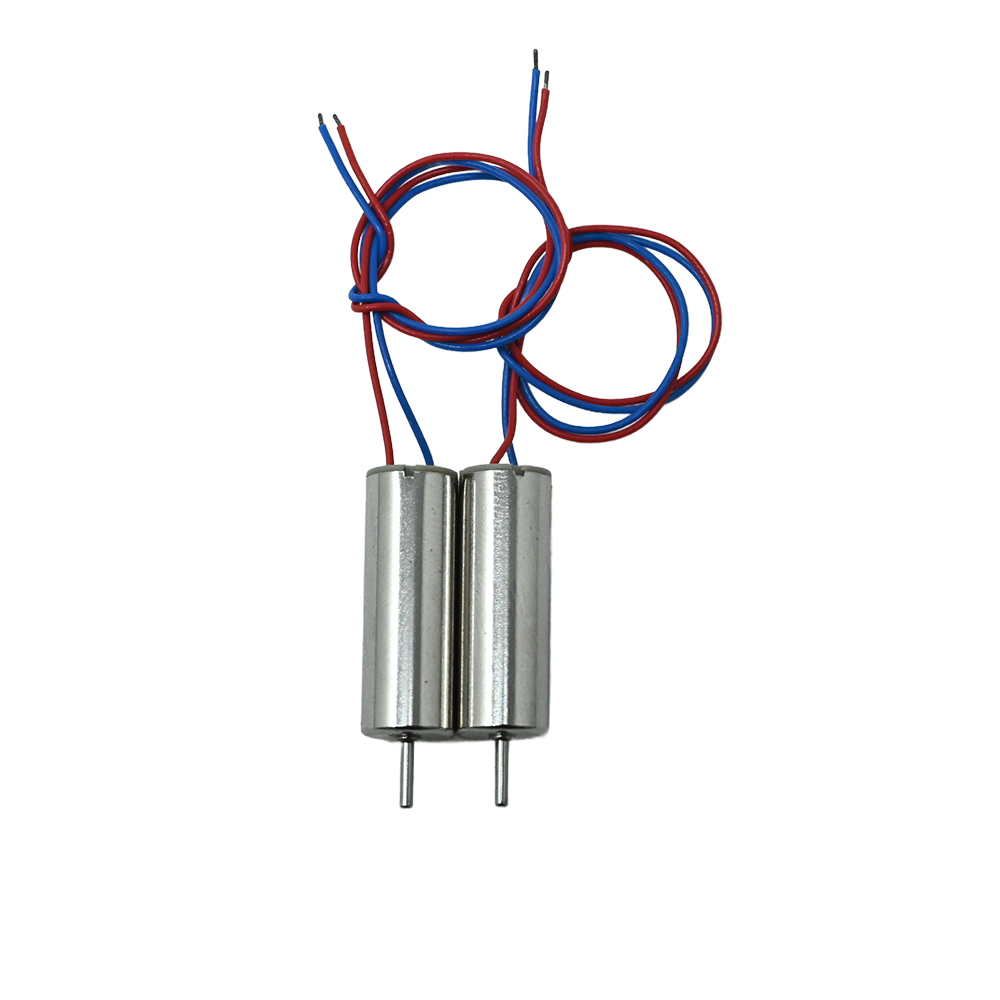

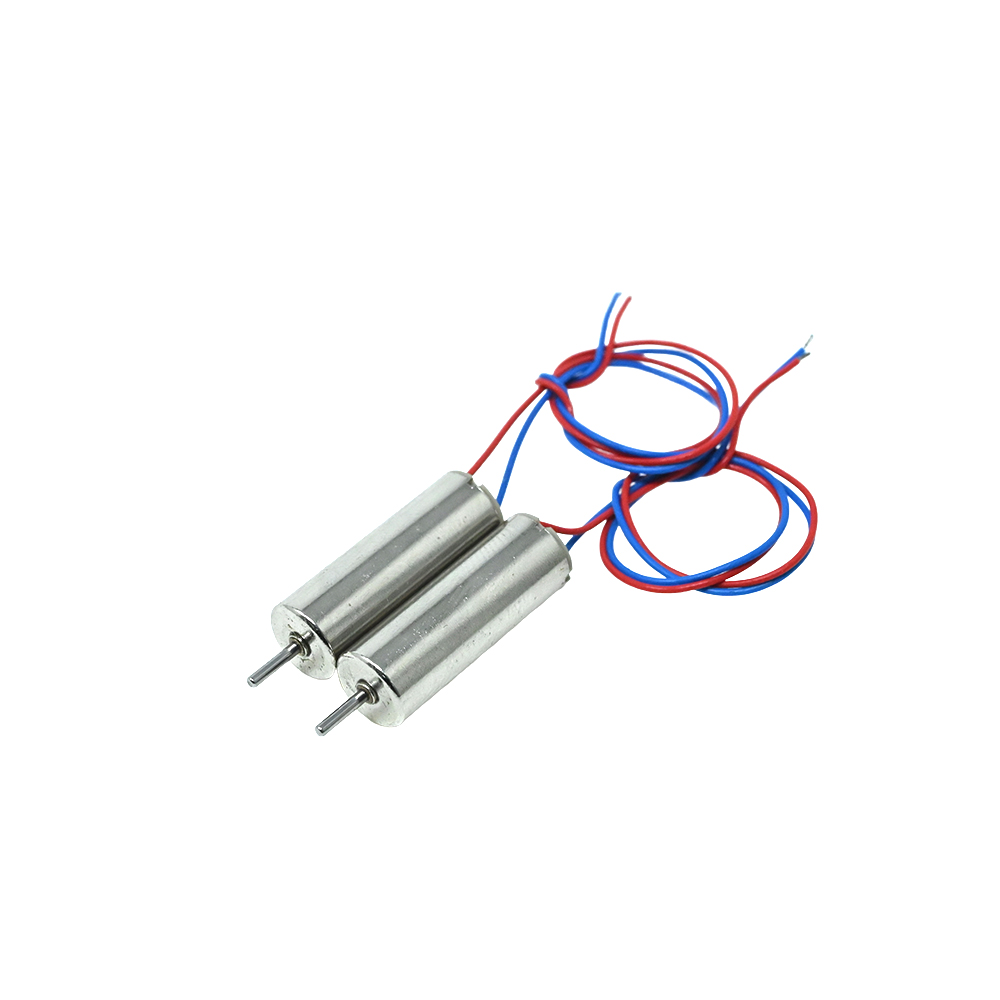

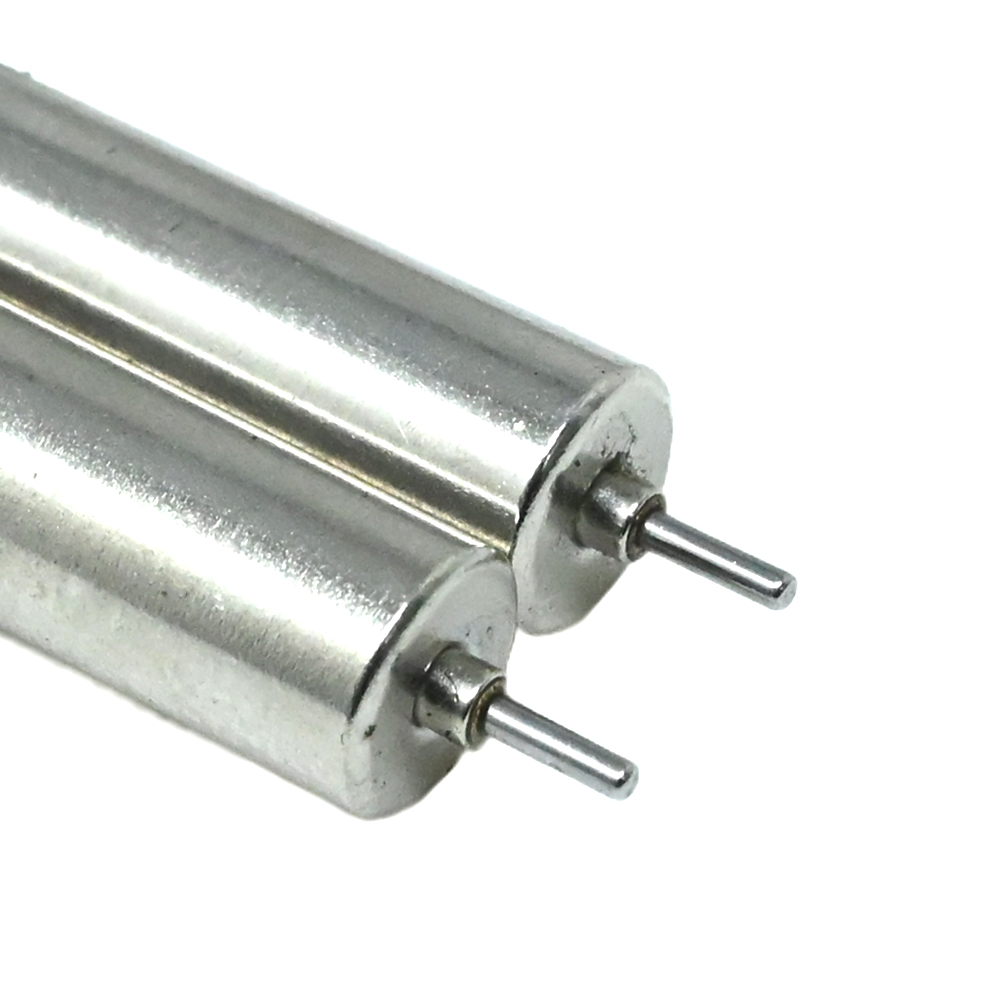

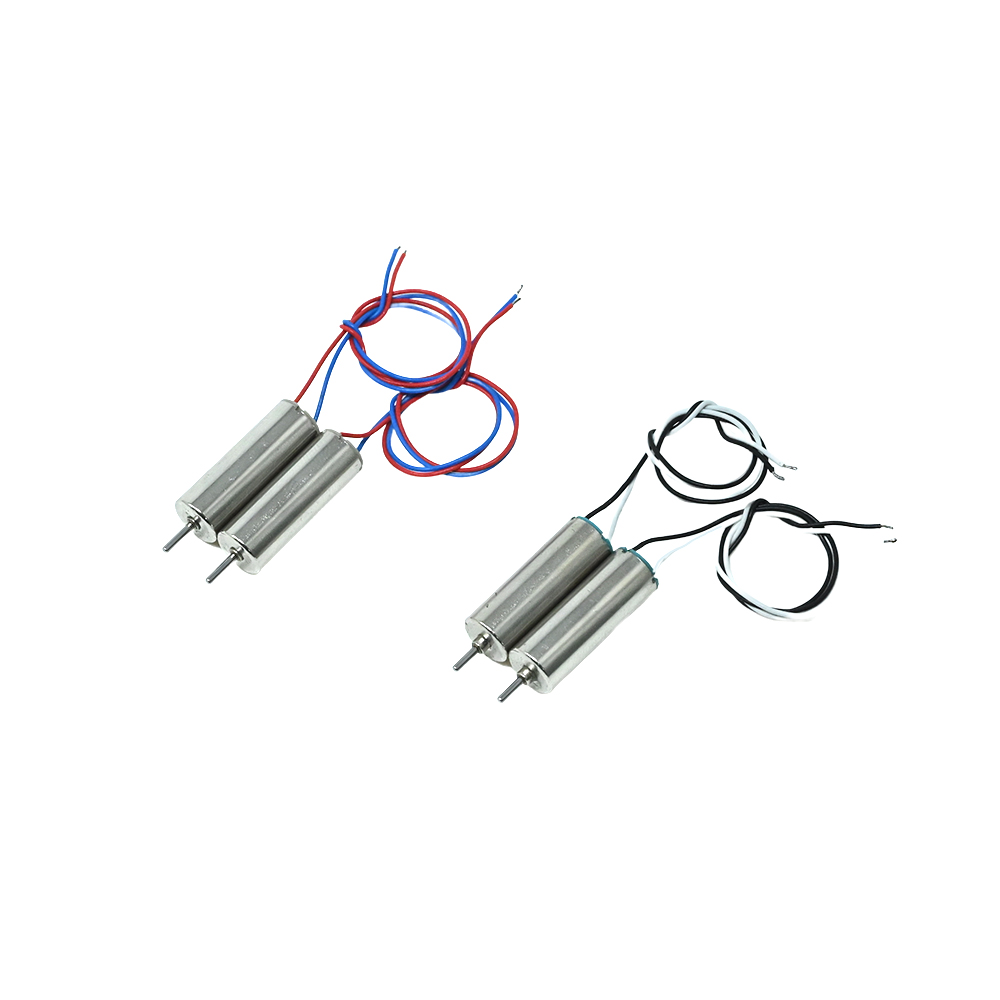

720 Magnetic Micro Coreless Motor for Micro Quadcopters - 2xCW & 2xCCW
The 720 Magnetic Micro Coreless Motor is a compact DC motor designed for ultra-lightweight micro and nano quadcopters, operating on 1S LiPo power. It provides high-speed, low-torque rotation for basic flight control in sub-100mm drone frames.
Features
- High-speed 720 coreless motor rated for 48,000 RPM at 3.7V.
- Ultra-compact 7mm diameter x 20mm length metal housing.
- Includes 2x CW and 2x CCW rotation motors for quadcopter builds.
- Low-noise operation with minimal electrical resistance.
- Compatible with 55mm propellers for micro multirotor applications.
Out of stock
The 720 Magnetic Micro Coreless Motor is engineered for entry-level and ultra-micro drone platforms where minimal weight and compact size are critical. Its coreless design eliminates the iron core, reducing rotor inertia for rapid acceleration and high rotational speeds, albeit with lower torque output suitable for lightweight propellers.
Constructed with a metal shell and high-quality magnets, this motor offers reliable performance within a specified operating temperature range. The included set provides the necessary clockwise and counterclockwise rotation pairs for standard quadcopter configurations, with color-coded wires for easy identification during soldering and installation.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 10 × 15 × 6 cm |
