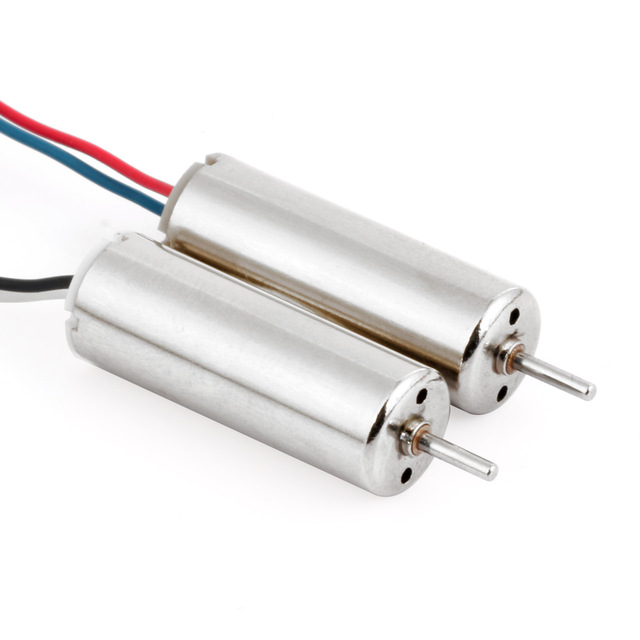

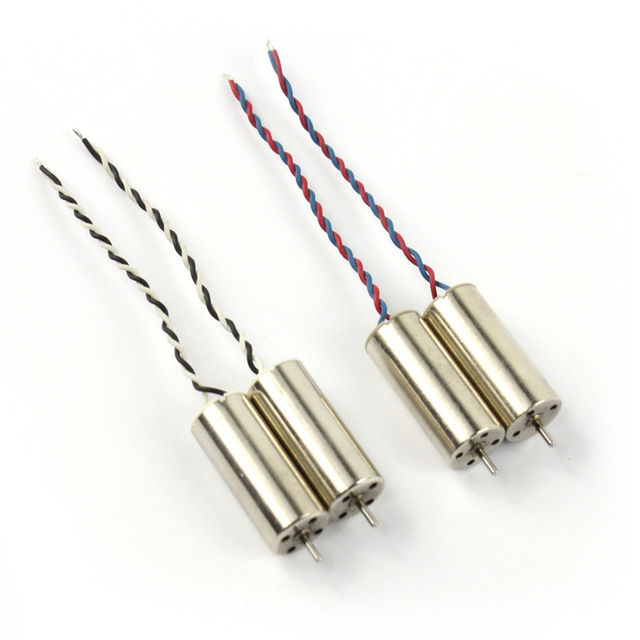

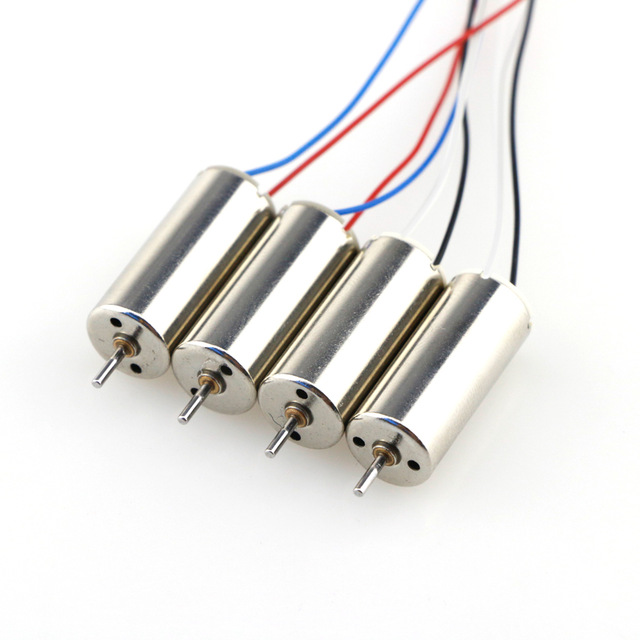

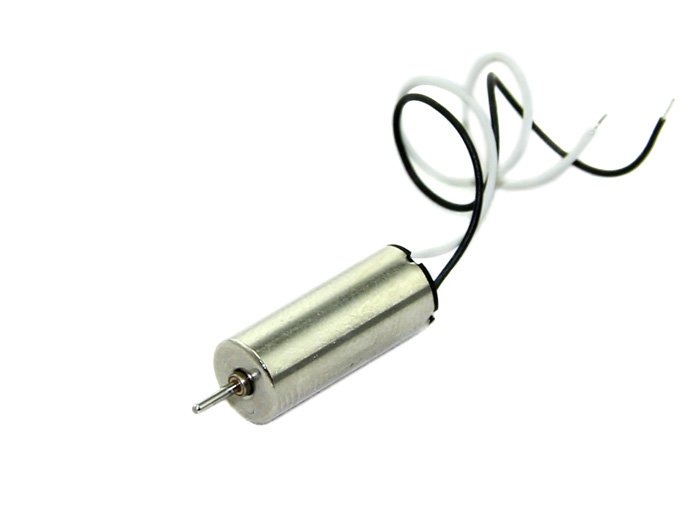

615 Magnetic Micro Coreless Motor for Micro Quadcopters - 2xCW & 2xCCW
The 615 Magnetic Micro Coreless Motor is a compact, high-RPM DC motor designed for ultra-micro quadcopter and drone builds, operating on 1S LiPo batteries (3.7V). Its lightweight and low-noise design is ideal for small-scale, indoor, or experimental multirotor platforms.
Features
- High-speed 615 coreless motor delivering up to 38,000 RPM for micro drone propulsion.
- Operates on 1S LiPo power (3.7V rated) with a 0.8mm shaft diameter for compatibility with micro propellers.
- Low-resistance windings and magnetic coreless design for efficient, quiet operation.
- Includes a complete set of 2x CW and 2x CCW rotation motors for a standard quadcopter configuration.
- Compact dimensions of 6mm diameter x 15mm length, weighing minimal mass for ultra-lightweight builds.
Out of stock
The 615 Magnetic Micro Coreless Motor is engineered for the specific demands of ultra-micro and nano-sized drone frames, typically under 100mm in diagonal size. Its coreless design eliminates the iron core, reducing rotational mass and inertia for rapid acceleration and high rotational speeds, making it suitable for lightweight, agile micro platforms.
Constructed with a metal housing and high-quality magnets, this motor provides reliable performance within its operational envelope. It is important to note that coreless motors are characterized by high speed and relatively low torque, which necessitates pairing with appropriately sized, lightweight propellers (typically 2 to 2.5 inches) to achieve efficient lift without overloading the motor.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 15 × 10 × 6 cm |
