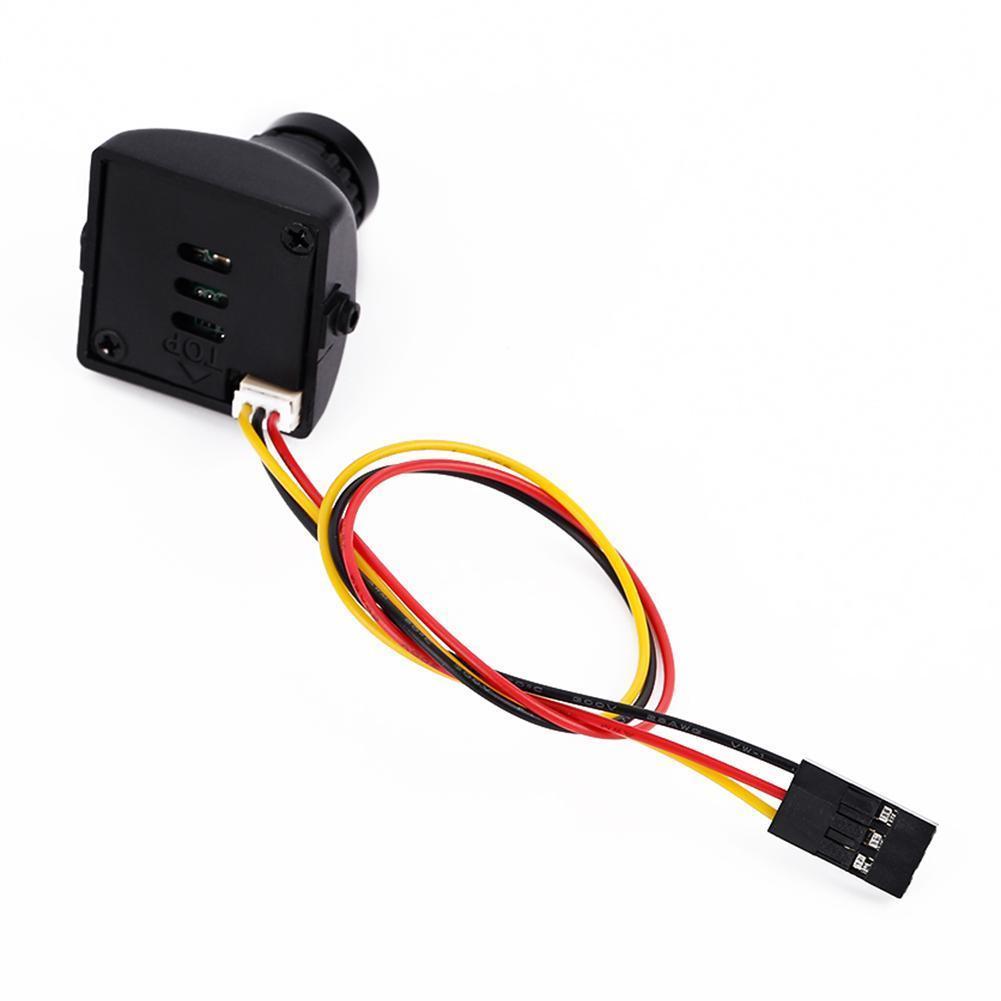

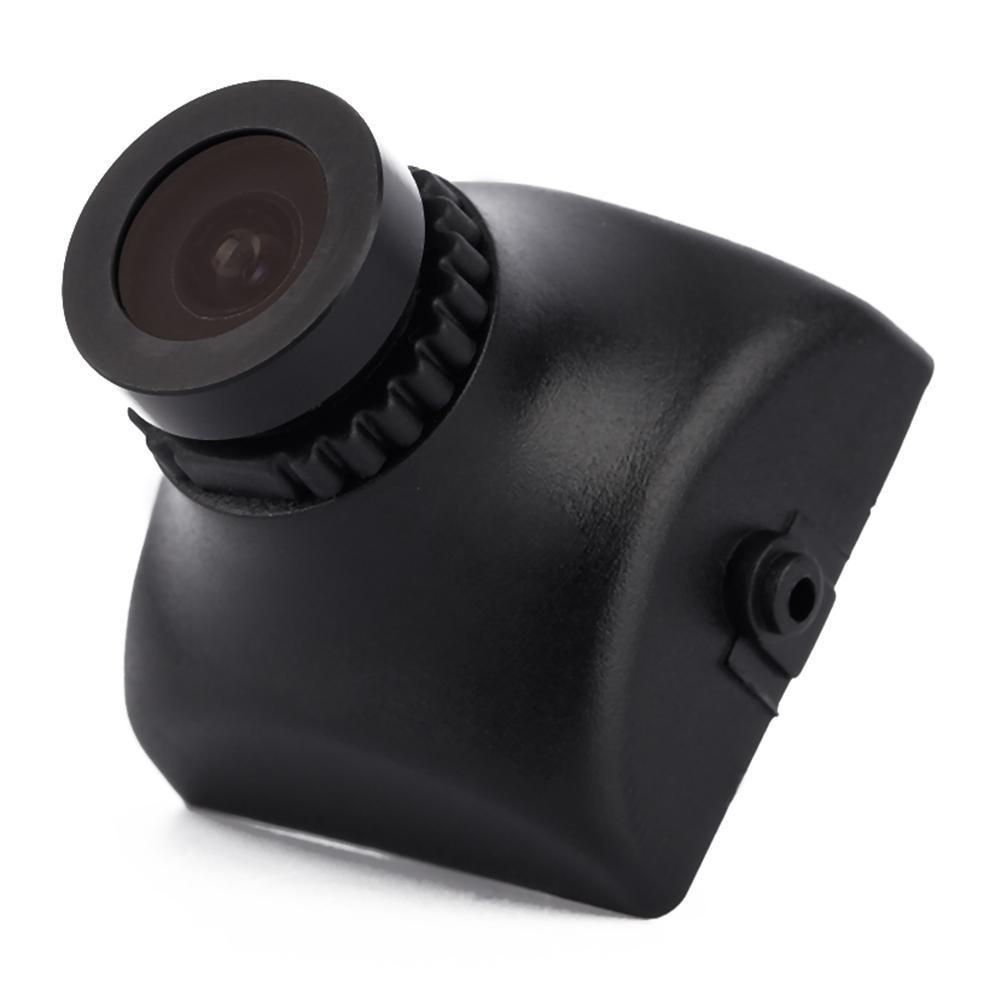

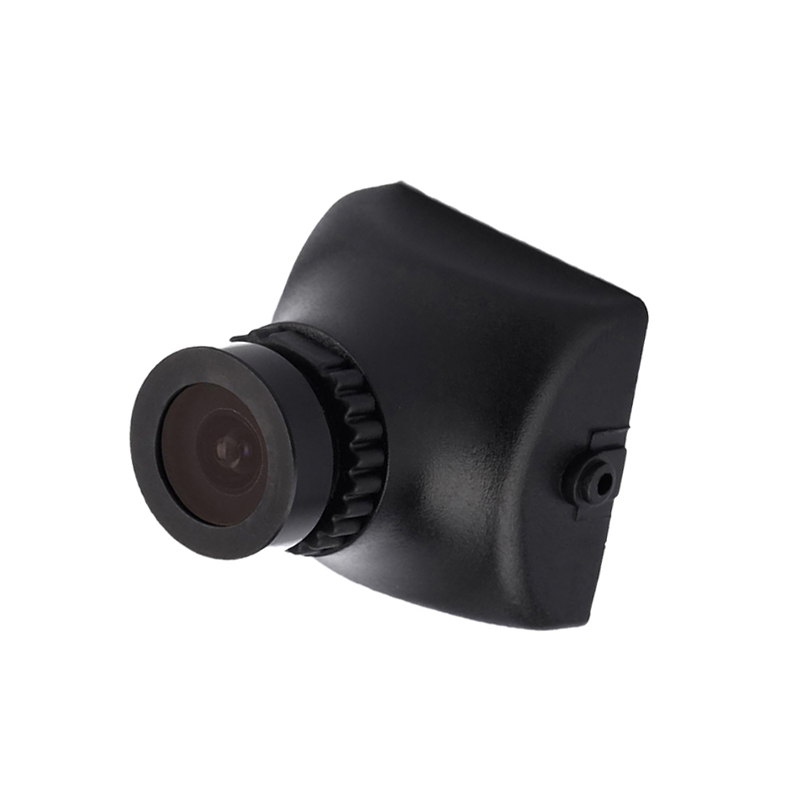

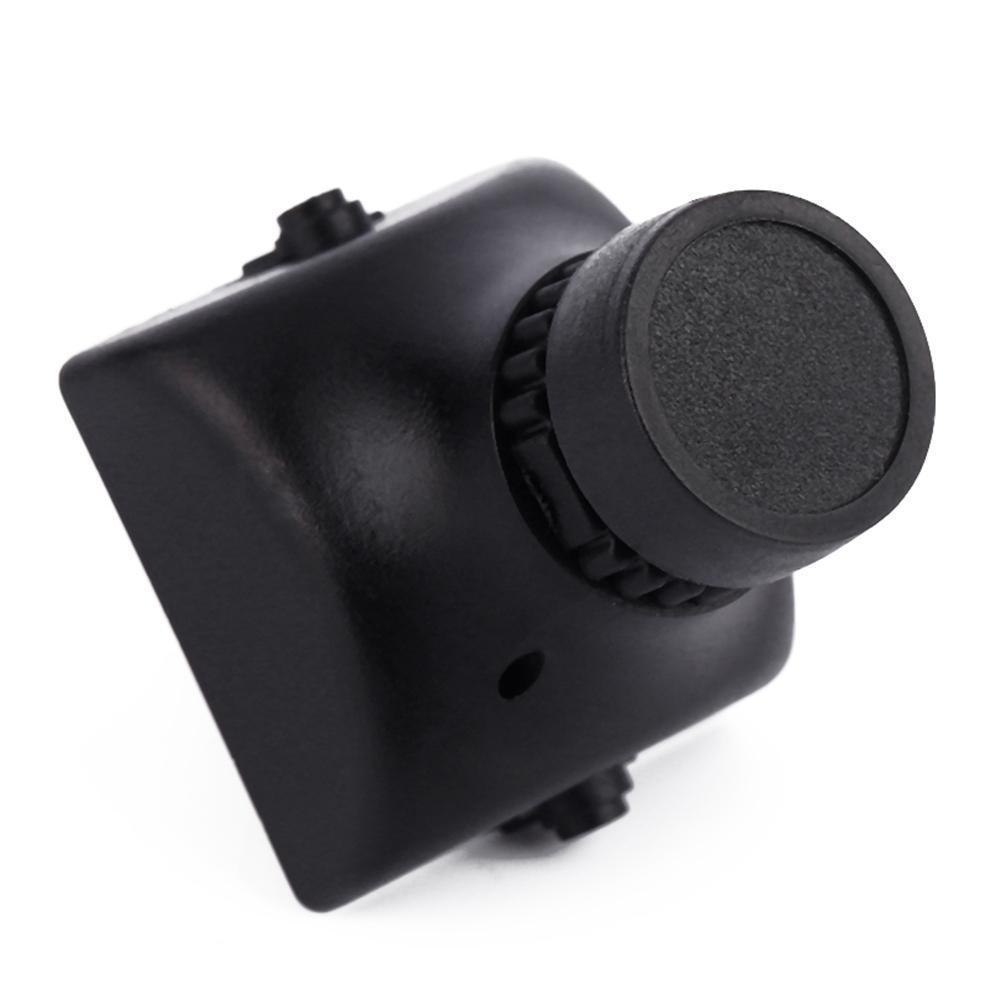

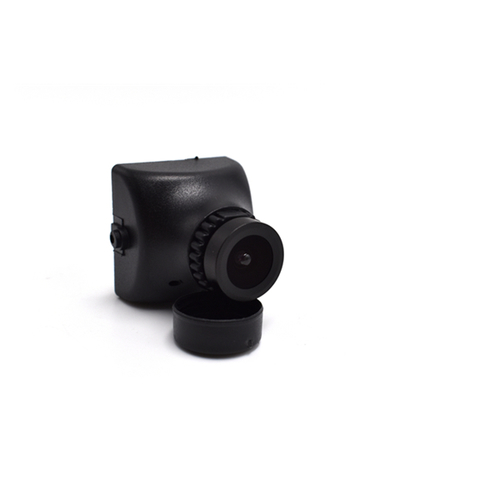

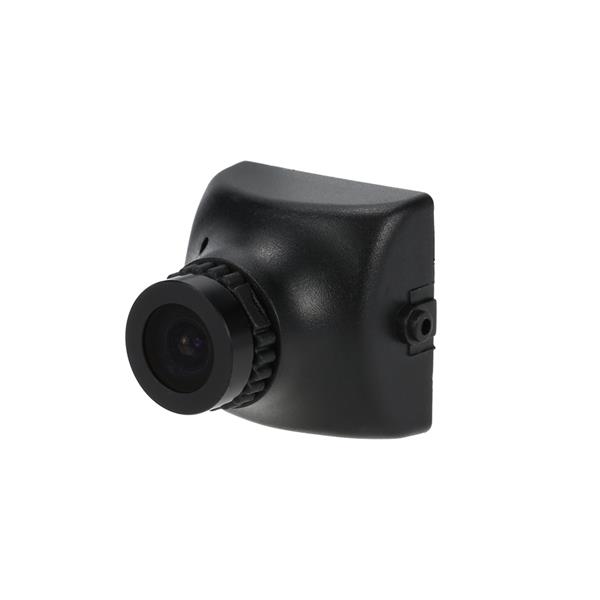

700TVL 2.8mm Lens 90 Degree 1/4 CMOS Wide Angle FPV Camera
This 700TVL FPV camera features a 1/4″ CMOS sensor and a 90° wide-angle 2.8mm lens, delivering low-latency video for PAL/NTSC systems. With a wide 7.5-13V input range, it is compatible with most FPV racing quadcopters and multirotors.
Features
- 700TVL resolution CMOS sensor for clear, detailed analog video feed.
- 90° wide-angle 2.8mm lens provides broad field of view with minimal distortion.
- Wide voltage input range from 7.5V to 13V for compatibility with 3S and 4S LiPo systems.
- Ultra-low latency (under 1ms) optimized for high-speed FPV racing and freestyle.
- Compact and lightweight plastic enclosure (26x26x28mm, ~10g) for easy integration.
Out of stock
Engineered for high-performance FPV flight, this camera utilizes a 1/4″ CMOS sensor tuned for both day and night flying conditions, with a minimum illumination of 0.1 Lux. Its electronic shutter and automatic gain/white balance controls ensure stable image quality across varying light environments. The design prioritizes a sub-1ms signal latency from sensor to output, a critical feature for competitive drone racing where real-time feedback is essential.
The camera’s robust electrical design supports a broad 7.5-13V DC input, making it a versatile drop-in replacement for many popular FPV builds, including QAV210 and QAV250 frames. The lightweight plastic housing maintains compatibility with standard mounting patterns while offering a degree of water resistance for added durability in challenging flight conditions.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.6 × 2.6 × 2.8 cm |
