Arducam 8MP IMX219 Wide Angle IR Sensitive Camera Module
This Arducam IMX219 camera module features an 8MP Sony sensor with a 175° wide-angle M12 lens and IR sensitivity (NoIR), designed for NVIDIA Jetson Nano and Raspberry Pi via MIPI CSI-2 interface.
Features
- 8MP Sony IMX219 Sensor – Delivers sharp 3280 x 2464 resolution images with high sensitivity, including infrared light (NoIR filter).
- 175° Ultra-Wide-Angle M12 Lens – Provides a significantly wider field of view compared to standard camera modules for expansive scene capture.
- High-Speed MIPI CSI-2 Interface – Supports 2-lane/4-lane connectivity for fast data transfer to NVIDIA Jetson Nano, Raspberry Pi, and other ARM/DSP/FPGA platforms.
- High Frame Rate Performance – Capable of up to 120 FPS at 720p resolution, ideal for motion analysis and computer vision applications.
Out of stock

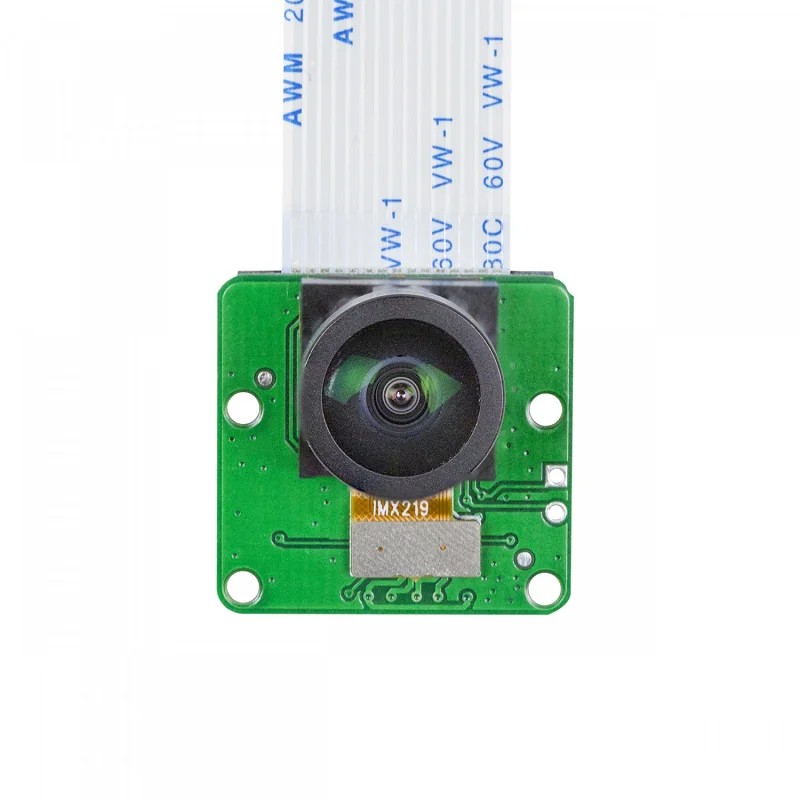

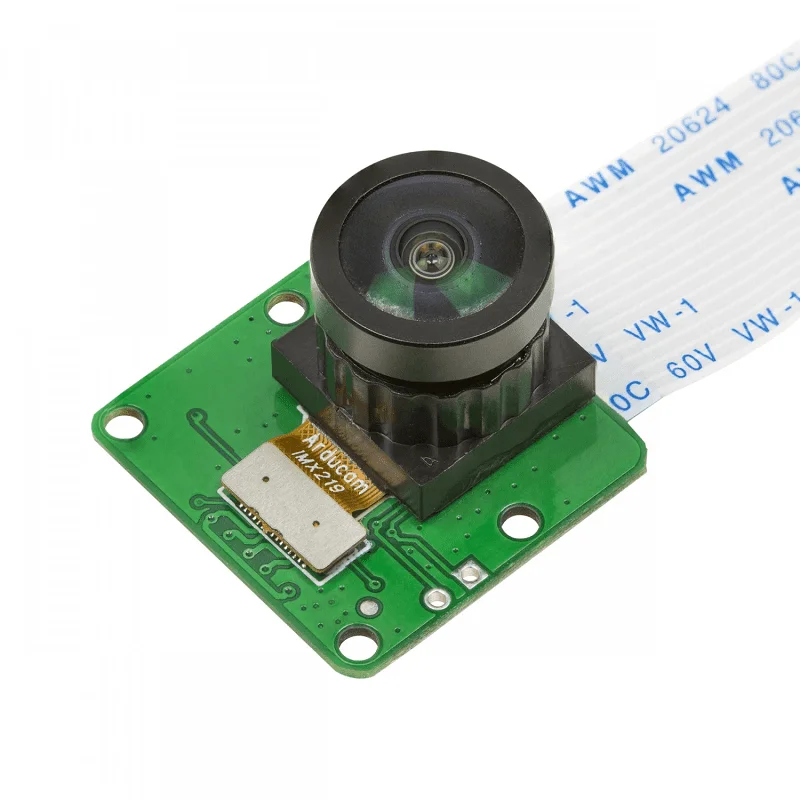

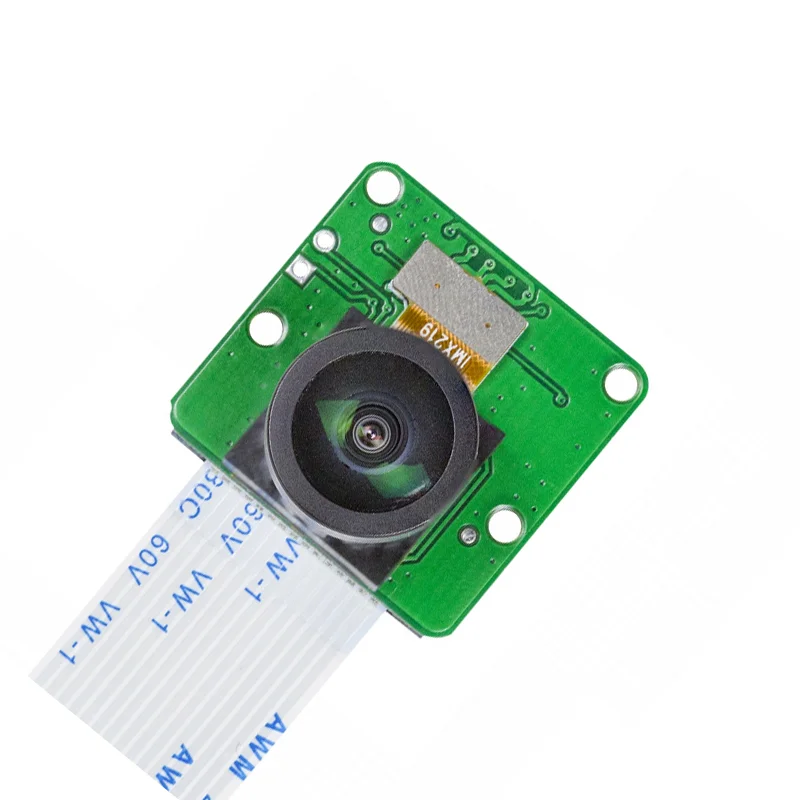

The Arducam IMX219 Wide Angle Camera Module is a cost-effective, high-performance imaging solution built around the 1/4-inch Sony IMX219 CMOS sensor. Its defining feature is the integrated 175° ultra-wide-angle M12 lens, which offers a panoramic field of view far exceeding typical board cameras. The sensor’s native IR sensitivity, achieved by omitting an infrared cut filter (NoIR), makes it suitable for specialized applications involving night vision, plant health monitoring, or security surveillance under IR illumination.
Engineered for seamless integration, the module communicates via a standard MIPI CSI-2 interface, compatible with popular embedded platforms like the NVIDIA Jetson Nano and Raspberry Pi. Its compact 26mm x 26mm form factor and fixed-focus lens simplify mechanical design, while the included 15cm FPC cable ensures flexible mounting. This module is a versatile tool for developers and system integrators working on robotics, smart vision IoT nodes, and edge AI projects requiring wide-field, IR-capable vision.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 2.6 × 2.6 cm |
