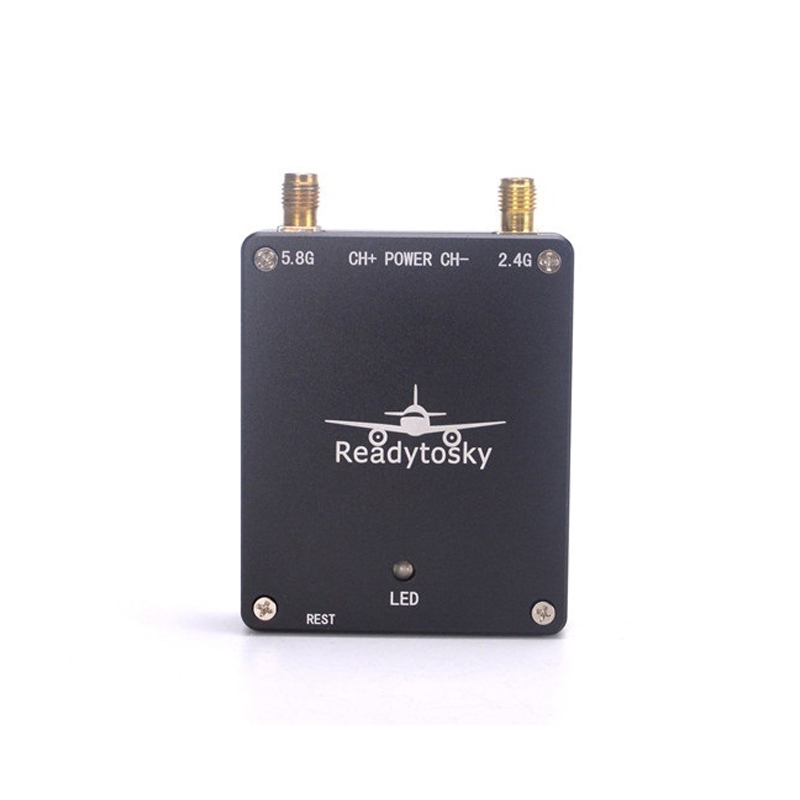

5.8G and 2.4G 151CH OTG WiFi Dual FPV AV Receiver for IOS & Android Smart Phones - Black

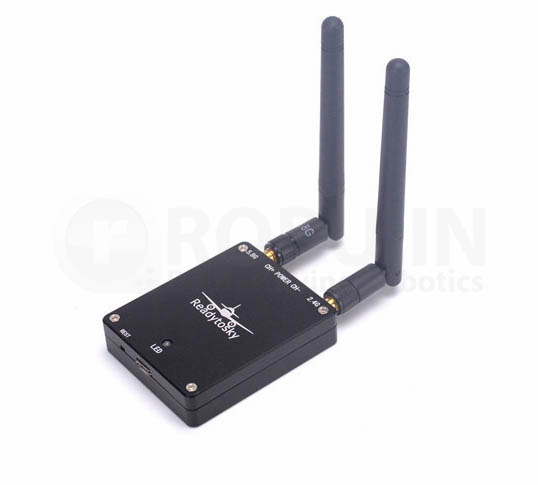

5.8G and 2.4G 151CH OTG WiFi Dual FPV AV Receiver for IOS & Android Smart Phones - Black - Image 2

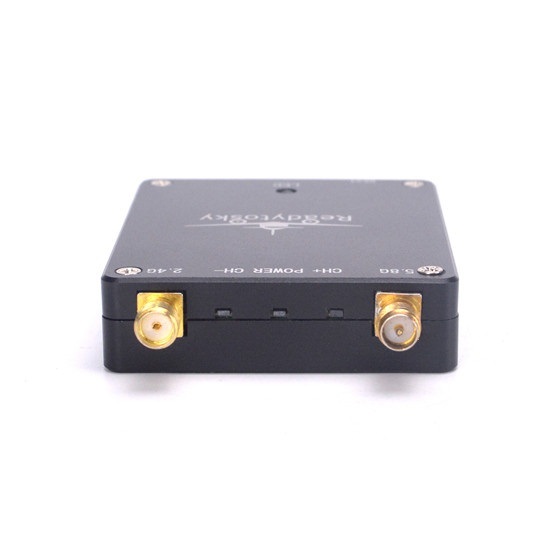

5.8G and 2.4G 151CH OTG WiFi Dual FPV AV Receiver for IOS & Android Smart Phones - Black - Image 3

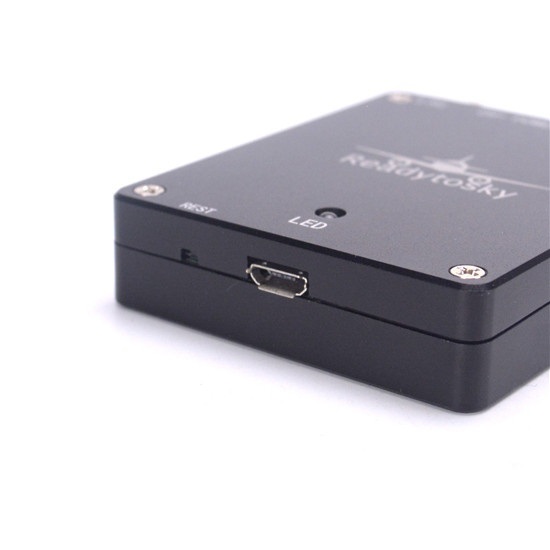

5.8G and 2.4G 151CH OTG WiFi Dual FPV AV Receiver for IOS & Android Smart Phones - Black - Image 4
SKU: DRFC-2205
📋 GST Invoice Available

5.8G and 2.4G 151CH OTG WiFi Dual FPV AV Receiver for IOS & Android Smart Phones - Black

₹2,890.00 (Inclusive of all taxes)
Out of Stock

The 5.8G and 2.4G 151CH OTG WiFi Dual Receiver is a versatile FPV video receiver designed to stream analog 5.8GHz video signals directly to iOS and Android smartphones via a 2.4GHz WiFi link, featuring 151 channels and a built-in DVR function.

Features

  • Dual-Band Receiver: Captures 5.8GHz (5.645-5.945GHz) analog video from 151 channels and transmits via 2.4GHz WiFi to a smartphone app.
  • Smartphone & Tablet Compatibility: Works with iOS and Android devices using the ‘DVRunning’ app, requiring only an OTG connection.
  • Integrated DVR & Auto-Scan: Features built-in video recording and an automatic frequency search function to lock onto the strongest signal.
  • Compact & Portable Design: Measures 73 x 52 x 15 mm with a lightweight build, ideal for field monitoring and portable ground stations.
  • Simple 5V Micro-USB Power: Operates from a standard 5V USB power source with a 450mA current draw and includes low-voltage battery alerts.

Out of stock

Description

This dual-band FPV AV receiver bridges the gap between traditional analog video systems and modern mobile devices. It receives standard 5.8GHz FPV video transmissions across 151 channels, then encodes and streams the video feed over a dedicated 2.4GHz WiFi network to a connected smartphone or tablet. This design eliminates the need for bulky dedicated ground station monitors, offering a portable and convenient viewing solution.

The unit is powered via a standard Micro-USB port, drawing 5V at 450mA, making it compatible with power banks and most USB chargers. Its control interface includes dedicated buttons for channel selection, power management, and a reset function. The integrated software provides automatic signal scanning and a DVR function for recording flights directly to the connected mobile device.

Key Features

  • 151-Channel 5.8GHz Receiver: Covers the full 5.645-5.945GHz spectrum for compatibility with virtually all analog FPV video transmitters.
  • 2.4GHz WiFi Video Link: Creates a stable, private WiFi network to stream low-latency video to the 'DVRunning' app on your phone or tablet.
  • Onboard DVR Functionality: Allows for direct recording of the FPV feed to your mobile device's storage via the companion app.
  • Automatic Signal Search: Long-press the channel buttons to initiate a scan that automatically locks onto the strongest active video signal.
  • Dual SMA Antenna Ports: Includes dedicated ports for 5.8GHz and 2.4GHz antennas (included) to ensure optimal reception range and signal clarity.
  • Compact and Lightweight Build: Its slim 73 x 52 x 15 mm form factor and 78-gram weight make it highly portable for field use.
  • Intuitive Physical Controls: Features tactile buttons for power, channel up/down, and reset, with clear LED status indicators for battery and connection state.
  • Low-Voltage Protection: Monitors the internal battery and provides visual alerts before safely shutting down to prevent over-discharge.

Applications

  • Portable FPV Ground Station: Use with a smartphone and power bank to create a compact, mobile monitoring setup for drone racing or freestyle sessions.
  • Spectator/Spotter Viewing: Provide a live video feed to spectators' phones during group flights or events without requiring dedicated goggles.
  • Backup DVR for Flight Analysis: Record analog FPV feeds directly to a phone for post-flight review and troubleshooting of signal issues or flight paths.
  • Bench Testing & Setup: Monitor video output from VTXs or cameras during build, configuration, or repair work on the bench.

Technical Specifications

Item TypeFPV Video Receiver
Model Name5.8G and 2.4G 151CH OTG WiFi Dual Receiver
Video Frequency Range5.645 - 5.945 GHz
WiFi Transmission Frequency2.4 GHz
Number of Channels151
Operating Voltage5 VDC (Micro-USB)
Current Consumption450 mA
Video Format SupportedNTSC / PAL
Control InterfaceCH+, PWR, CH- Buttons
Dimensions (L x W x H)73 x 52 x 15 mm
Weight78 g
ColorBlack
Compatible DevicesiOS & Android Smartphones/Tablets (OTG)
Companion AppDVRunning

Frequently Asked Questions

What app do I need to use with this receiver, and is it compatible with both iPhone and Android?

You need to use the 'DVRunning' app, available on both the iOS App Store and Google Play Store. The receiver creates its own WiFi network. On Android, you may need an OTG adapter to provide power, while iPhones typically connect via the Lightning port. Ensure your device supports the app and the required connection method.

How do I scan for and lock onto a video transmitter's signal?

To automatically find the strongest signal, long-press either the CH+ or CH- button. The receiver will scan through all 151 channels in the 5.645-5.945GHz range and stop on the channel with the clearest video feed. For manual selection, short-press the CH+ or CH- buttons to step through channels individually.

What is the purpose of the two antennas, and can I use different ones?

The two SMA antenna ports are dedicated: one is for receiving the 5.8GHz FPV video signal, and the other is for broadcasting the 2.4GHz WiFi stream to your phone. Using the included antennas is recommended. You can potentially use aftermarket 5.8GHz antennas (like a cloverleaf or patch) on the video port to improve reception, but the 2.4GHz antenna should remain as provided for optimal WiFi link stability.

Can I power this receiver from a battery, and what do the LED indicators mean?

Yes, you can power it from any standard 5V USB source, including a power bank. The green LED indicates normal operation and WiFi activity. A red LED shows the unit is charging if connected to a power source. When the internal battery voltage drops below 3.7V, the green LED will flash at 1Hz as a low-power warning. If it drops below 3.6V, it will flash rapidly and shut down to protect the battery.

Package Includes

  • 1 x 5.8G and 2.4G OTG WiFi Dual Receiver (Black)
  • 2 x Antennas (for 5.8GHz & 2.4GHz ports)
  • 1 x Micro-USB Cable

Additional Information

Weight 0.078 kg
Dimensions 7.3 × 5.2 × 1.5 cm
