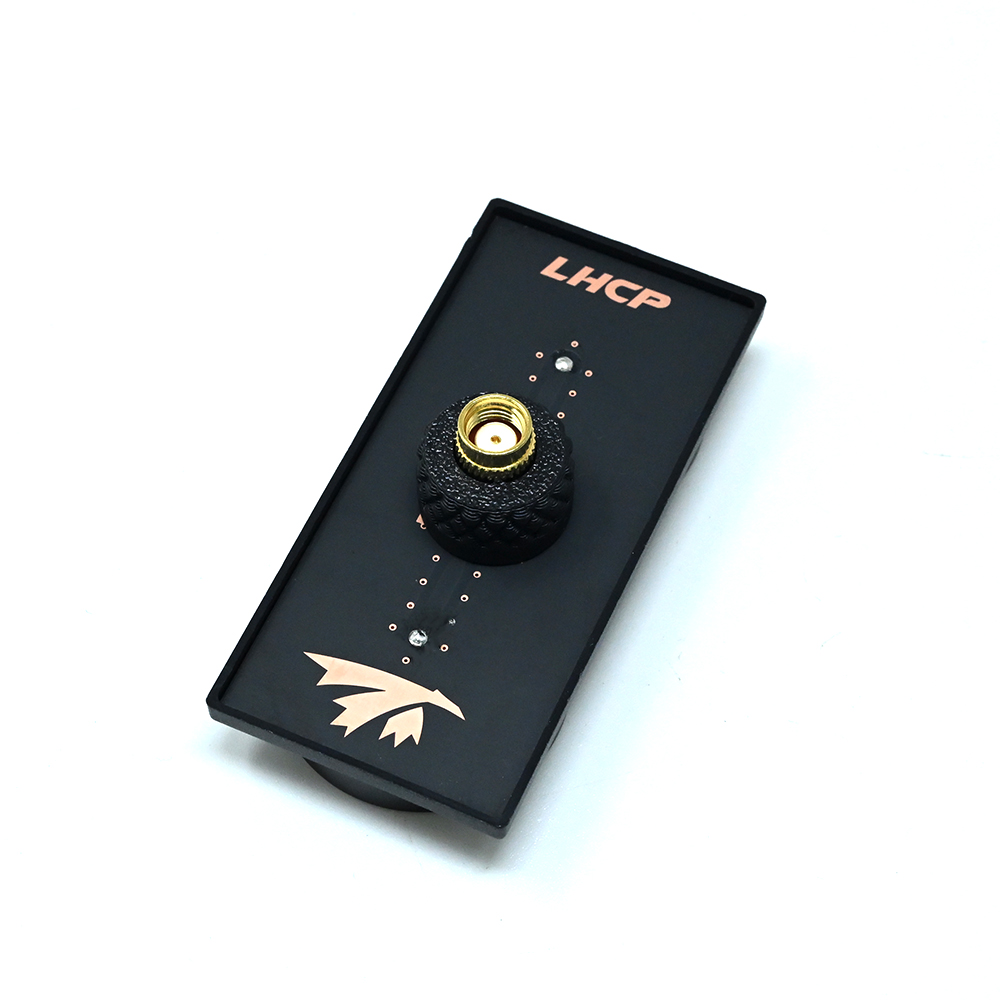

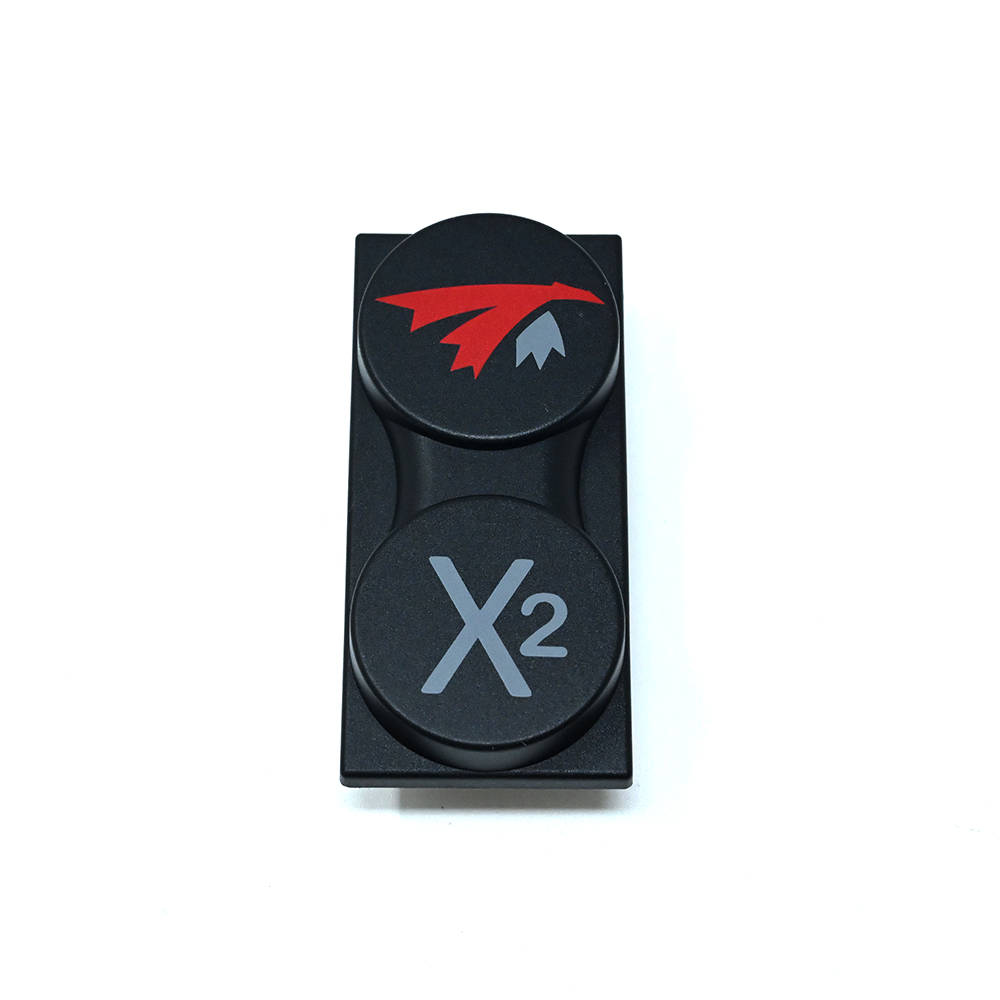

TrueRC X²-AIR 5.8 MK II LHCP RP-SMA Male FPV Antenna
The TrueRC X²-AIR 5.8 MK II is a compact directional patch antenna designed for 5.8GHz FPV systems, featuring LHCP polarization and an RP-SMA male connector for stable, long-range video reception with reduced multipath interference.
Features
- High-gain 13 dBic directional patch antenna for extended FPV range.
- LHCP (Left-Hand Circular Polarization) minimizes signal reflections and interference.
- Wide 150° horizontal beam coverage ensures stable reception during maneuvers.
- Compact and lightweight design (72mm x 34mm, 13g) for streamlined builds.
- Standard RP-SMA male connector for compatibility with most 5.8GHz VTXs and VRXs.
Out of stock
The TrueRC X²-AIR 5.8 MK II represents the latest evolution in the X-AIR series, delivering the performance of a full-size directional antenna in a miniaturized form factor. Its engineered patch design provides a focused 13 dBic gain across a 5.1–7.0 GHz bandwidth, optimizing signal strength for both analog and digital HD FPV systems like DJI O3 Air Unit and Walksnail Avatar.
Constructed with durable materials, the antenna maintains structural integrity while minimizing weight. The LHCP polarization is critical for rejecting multipath signal bounce in complex environments, such as urban areas or forests, resulting in a cleaner video feed with fewer dropouts. The wide horizontal beamwidth allows for significant pilot movement without losing the signal lock, making it suitable for both racing and cinematic long-range flights.
Additional Information
| Weight | 0.013 kg |
|---|---|
| Dimensions | 7.2 × 3.4 cm |
