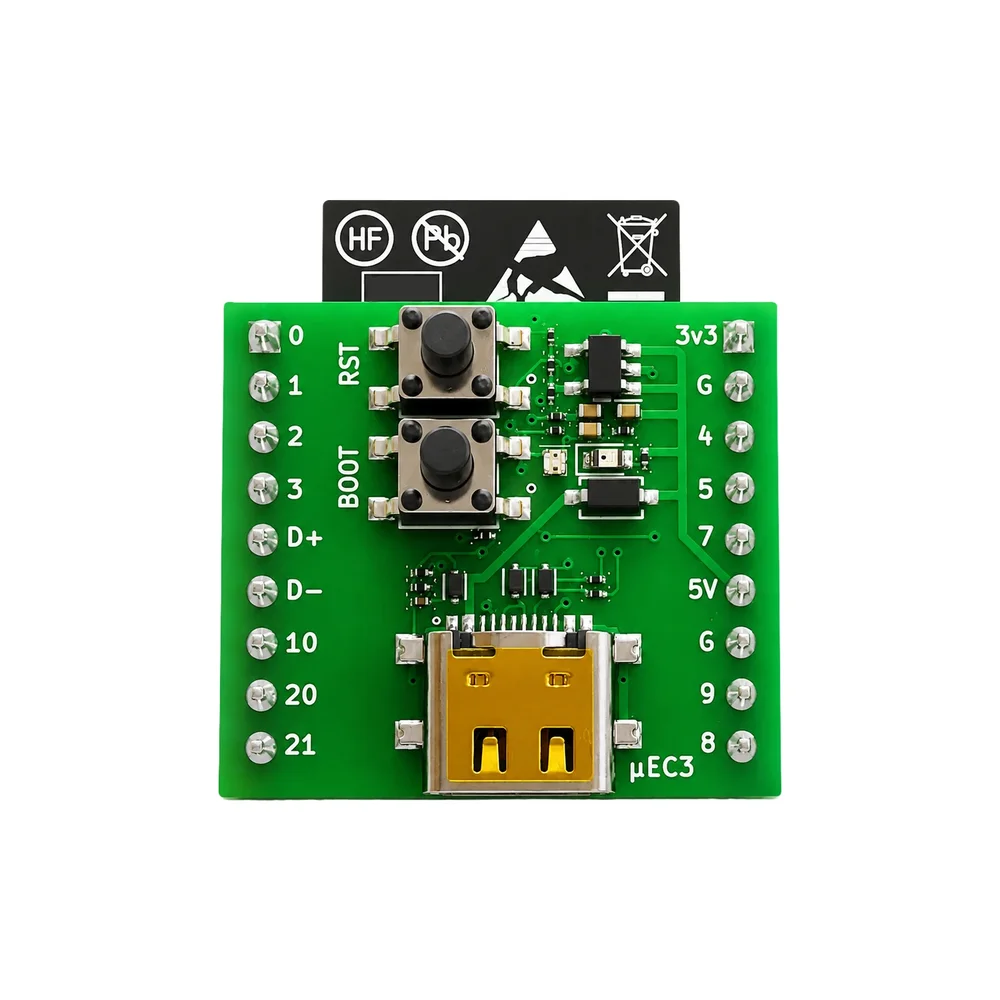

µEDesign µEC3 ESP32-C3 WROOM-02 Dev Board w/ Wi-Fi & BLE
The µEDesign µEC3 is a compact ESP32-C3 development board featuring a 160 MHz RISC-V core, 4 MB flash, and integrated 2.4 GHz Wi-Fi & Bluetooth 5.0 BLE. It includes a USB-C port for native programming and is ideal for Arduino IDE, ESP-IDF, or MicroPython projects.
Features
- ESP32-C3 RISC-V MCU (160 MHz) with 4 MB flash and 400 KB SRAM for robust IoT application processing.
- Integrated 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 (BLE) for dual wireless connectivity.
- 14 exposed GPIOs supporting I2C, SPI, I2S, UART, PWM, and a 12-bit ADC for extensive peripheral interfacing.
- Native USB-C programming interface eliminates the need for an external USB-to-UART converter.
- Onboard PCB antenna, BOOT/RESET buttons, and a 5V-to-3.3V LDO regulator for a complete, ready-to-use dev kit.
Out of stock

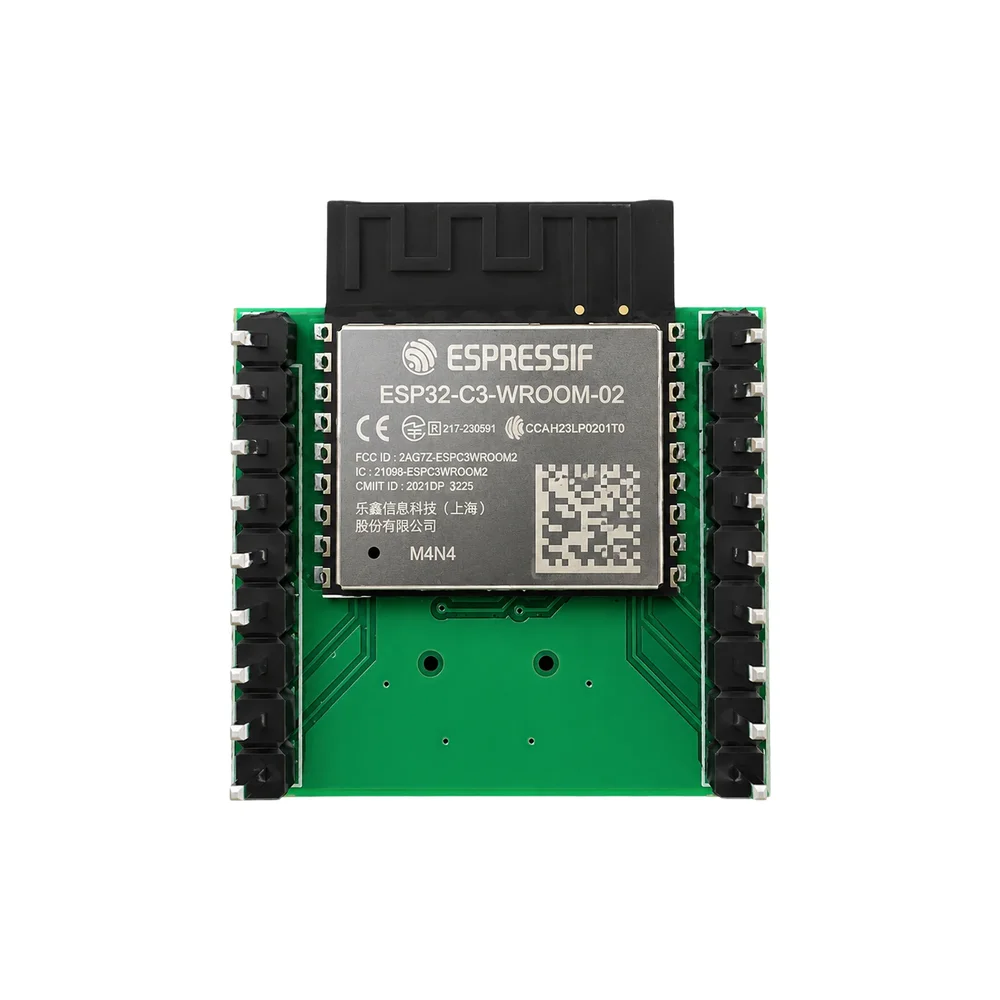

The µEDesign µEC3 development board is engineered around the Espressif ESP32-C3-WROOM-02-N4 module, providing a feature-rich platform for IoT and embedded development. Its single-core 32-bit RISC-V processor delivers efficient performance at up to 160 MHz, while the integrated 2.4 GHz Wi-Fi and Bluetooth 5.0 Low Energy radios enable seamless wireless communication for smart home, sensor node, and automation projects.
The board simplifies development with a native USB Type-C port for direct programming and debugging, removing the requirement for external serial adapters. Power management is handled by an onboard LDO regulator accepting 5V input, and the compact form factor includes essential user interface elements like tactile BOOT and RESET buttons and a status LED. The integrated PCB trace antenna ensures reliable RF performance out of the box, making the µEC3 a streamlined solution for rapid prototyping and product development.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 5.4 × 7.5 × 5.7 cm |
