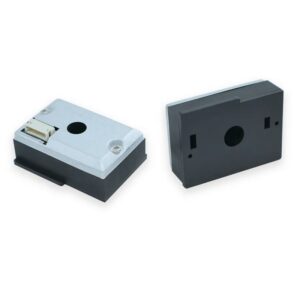

Sharp Microelectronics GP2Y1023AU0F Dust Sensor, Digital PWM Output, High Sensitivity, Range: 0~750 µg/m³
The Sharp Microelectronics GP2Y1023AU0F is a compact digital dust sensor providing PWM output proportional to particulate matter concentration (0–750 µg/m³). It operates on a 5V DC supply and is designed for easy integration into air quality monitors, HVAC systems, and Arduino or Raspberry Pi projects.
Features
- High-sensitivity optical detection for airborne dust particles (0–750 µg/m³).
- Digital PWM output for straightforward interfacing with microcontrollers.
- Compact and low-profile design measuring 46.0 × 30.0 × 17.6 mm.
- Low power consumption with a typical operating current of 15 mA.
- RoHS compliant, lead-free construction for environmental safety.
Out of stock
The Sharp Microelectronics GP2Y1023AU0F dust sensor employs an advanced optical sensing principle, utilizing an infrared emitting diode (IRED) and a phototransistor positioned at a specific angle. As airborne particles pass through the detection area, they scatter infrared light, which is measured by the phototransistor. This analog signal is internally conditioned and converted into a proportional digital PWM output, providing a clean signal for direct microcontroller input.
Engineered for reliability in environmental monitoring, the sensor operates across a wide temperature range of –10°C to +65°C. Its compact, slim form factor and low power draw make it suitable for integration into portable air quality devices, smart home systems, and industrial air filtration control units.
Additional Information
| Weight | 0.018 kg |
|---|---|
| Dimensions | 7 × 3 × 6 cm |
