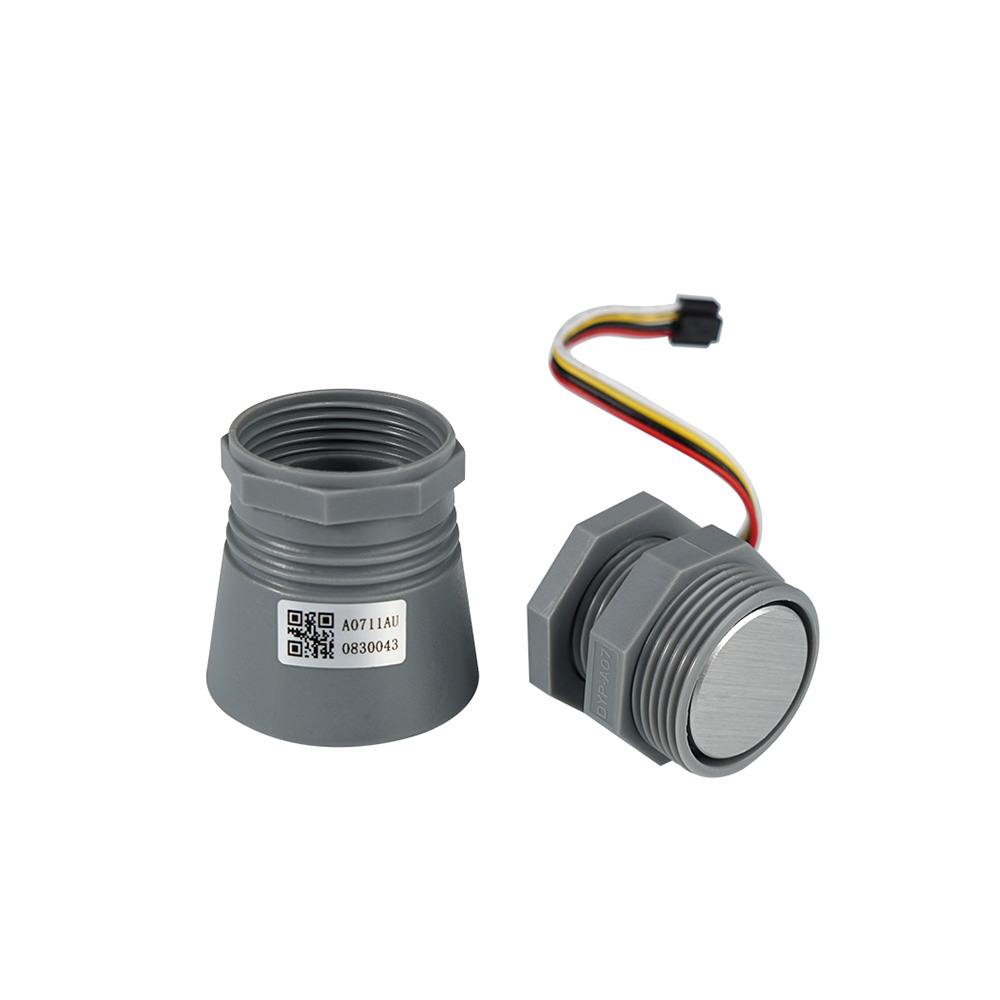

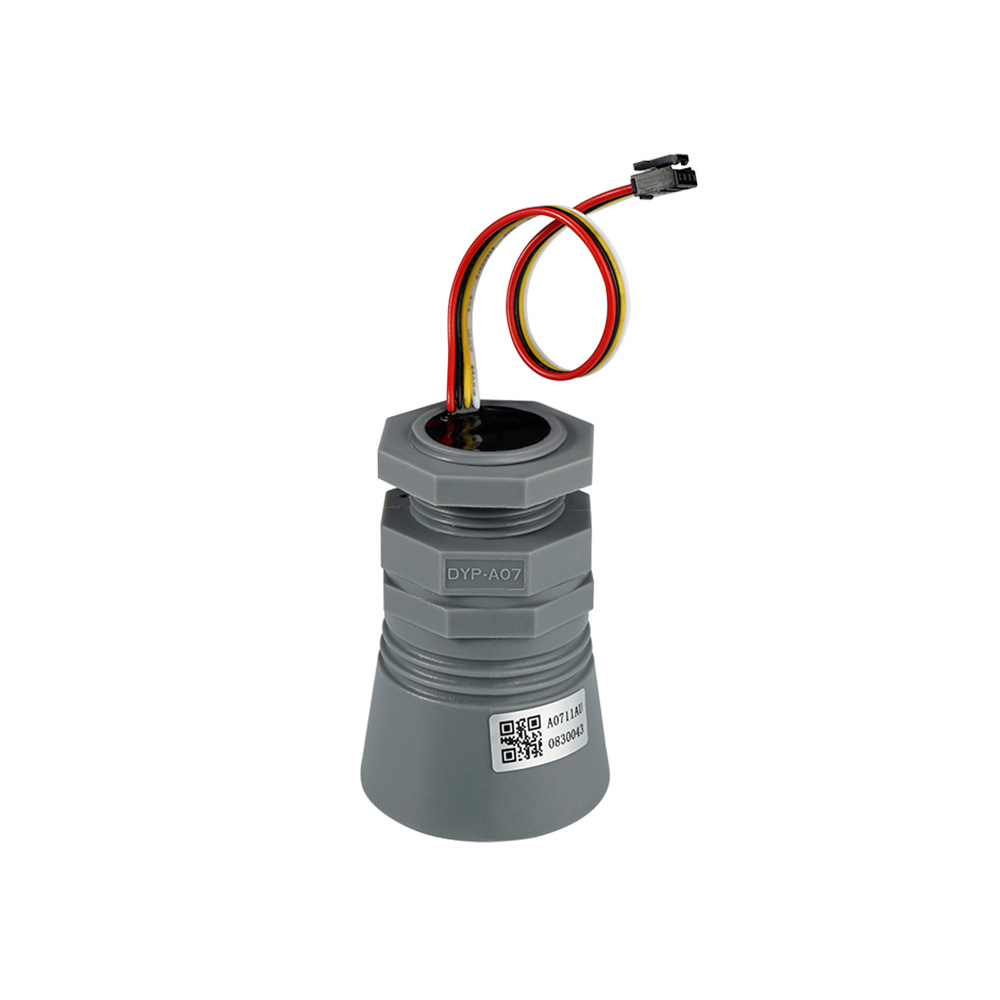

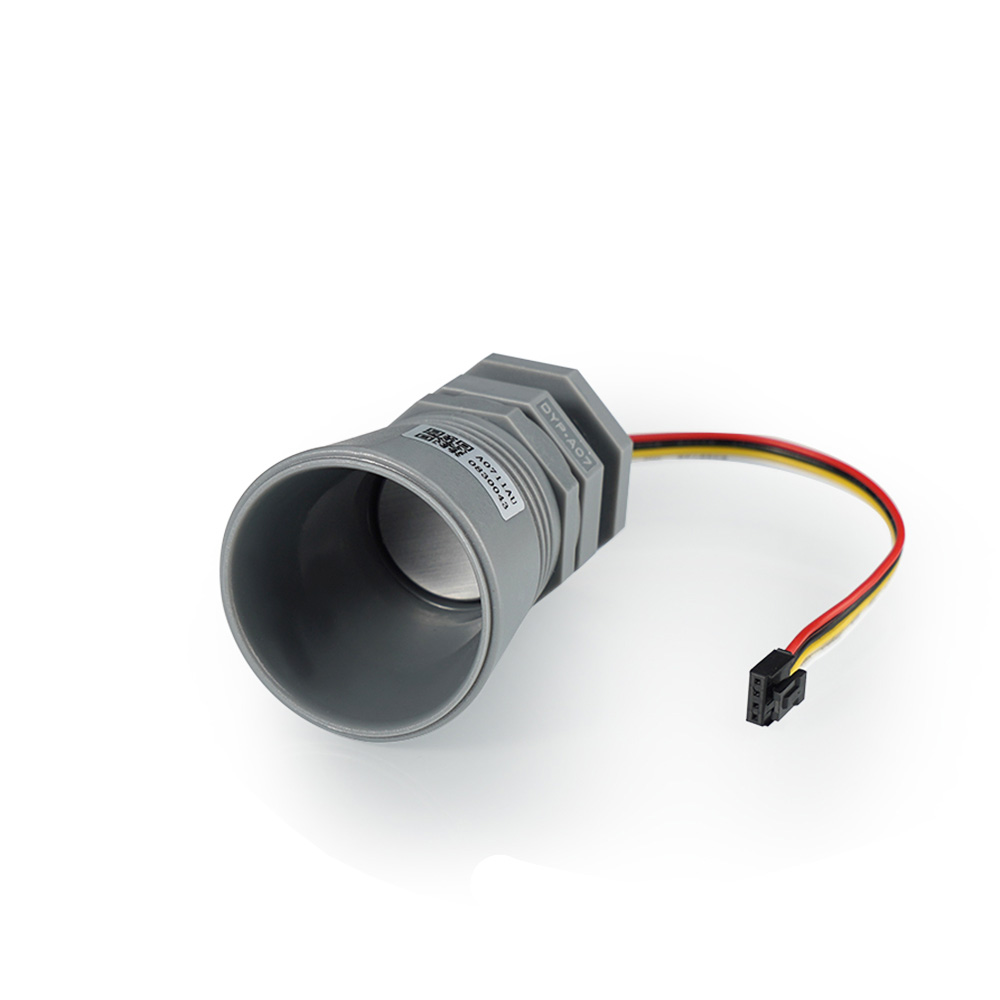

DYP-A07NYWB-V1.0 PWM Waterproof Ultrasonic Level Sensor (Measuring Range 25~800cm)
The DYP-A07NYWB-V1.0 is a waterproof ultrasonic level sensor module providing PWM output for distance measurement from 25 cm to 800 cm. It operates on 3.3V to 5V DC logic, making it compatible with Arduino, Raspberry Pi, ESP32, and industrial PLCs for liquid level monitoring and object detection.
Features
- Waterproof ultrasonic transducer for reliable operation in wet or outdoor environments.
- PWM output signal for direct, easy-to-process distance readings with microcontrollers.
- Extended 25 cm to 800 cm measurement range with ±(1+S×0.3%) accuracy.
- Low power consumption with <15 mA operating current and <10 µA static current.
- Narrow 15° beam angle for precise targeting and reduced interference from surroundings.
Out of stock
The DYP-A07NYWB-V1.0 ultrasonic sensor employs time-of-flight (ToF) measurement principles, emitting a sound pulse and calculating distance based on the echo return time. Its integrated high-precision algorithm and intelligent signal processing ensure stable readings with minimal error, even over long distances.
Designed for durability, the module features a waterproof transducer housing and robust internal power management, supporting continuous operation in challenging environments like sewer monitoring or outdoor tanks. The fast response time between 0.9 and 2.5 seconds enables real-time level detection for automated control systems.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 10 × 6 × 5 cm |
