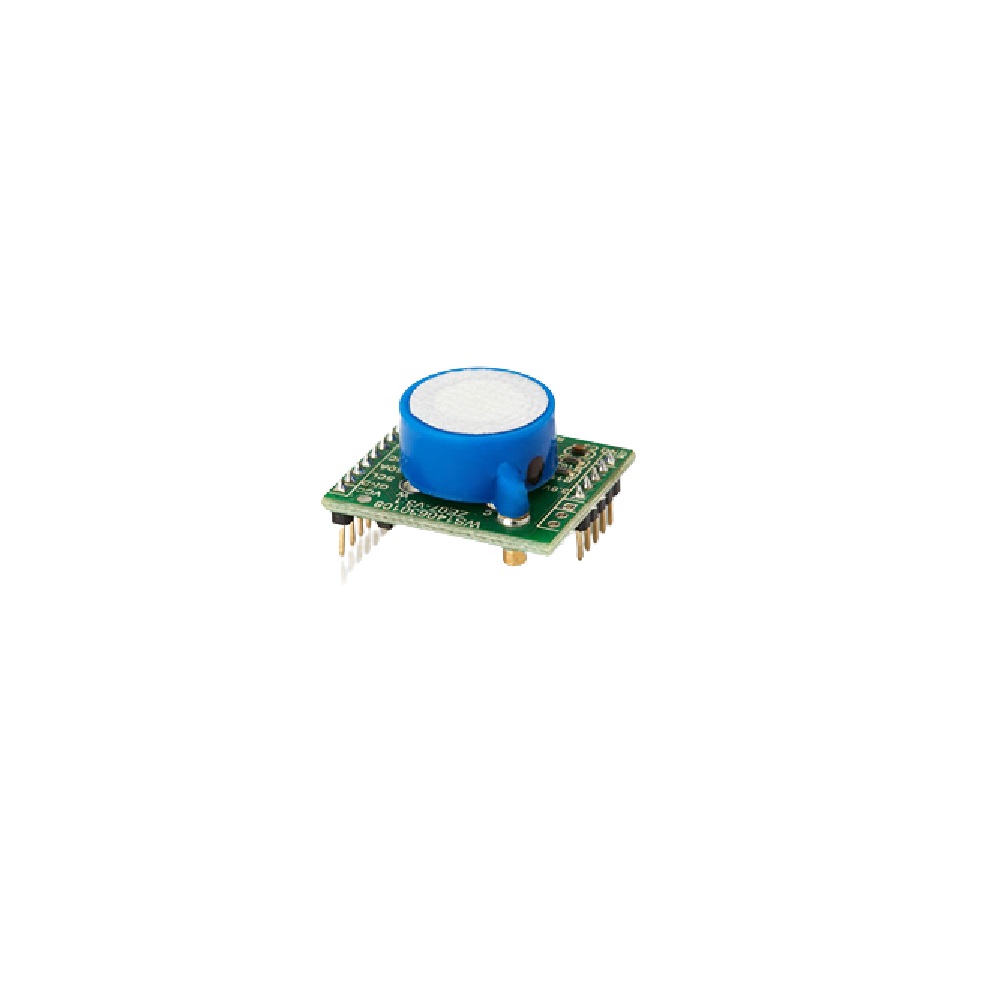

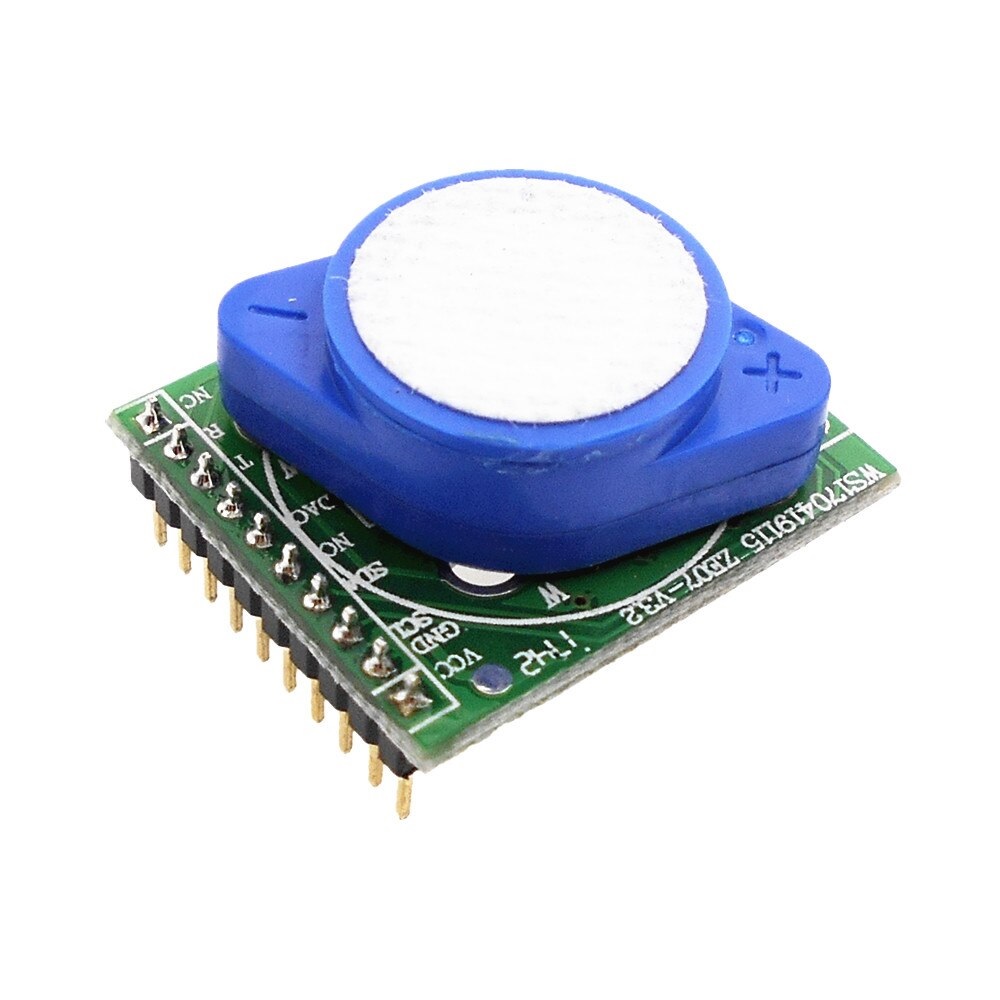

Winsen ZE07-CH2O Formaldehyde Gas Sensor Module - UART/Analog/PWM Output
The Winsen ZE07-CH2O is a miniaturized electrochemical formaldehyde (CH2O) gas sensor module offering UART, analog voltage (0.4–2V), and PWM output for integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs. It provides precise detection from 0 to 5 ppm with a resolution of 0.01 ppm.
Features
- Electrochemical CH2O detection with high selectivity and stability
- Triple output interface: UART (3V logic), analog voltage (0.4–2V), and PWM
- Wide operating voltage range of 3.7V to 9V DC
- Fast response time (T90 ≤ 60s) with integrated temperature compensation
- Compact module design for portable detectors and embedded air quality systems
Out of stock

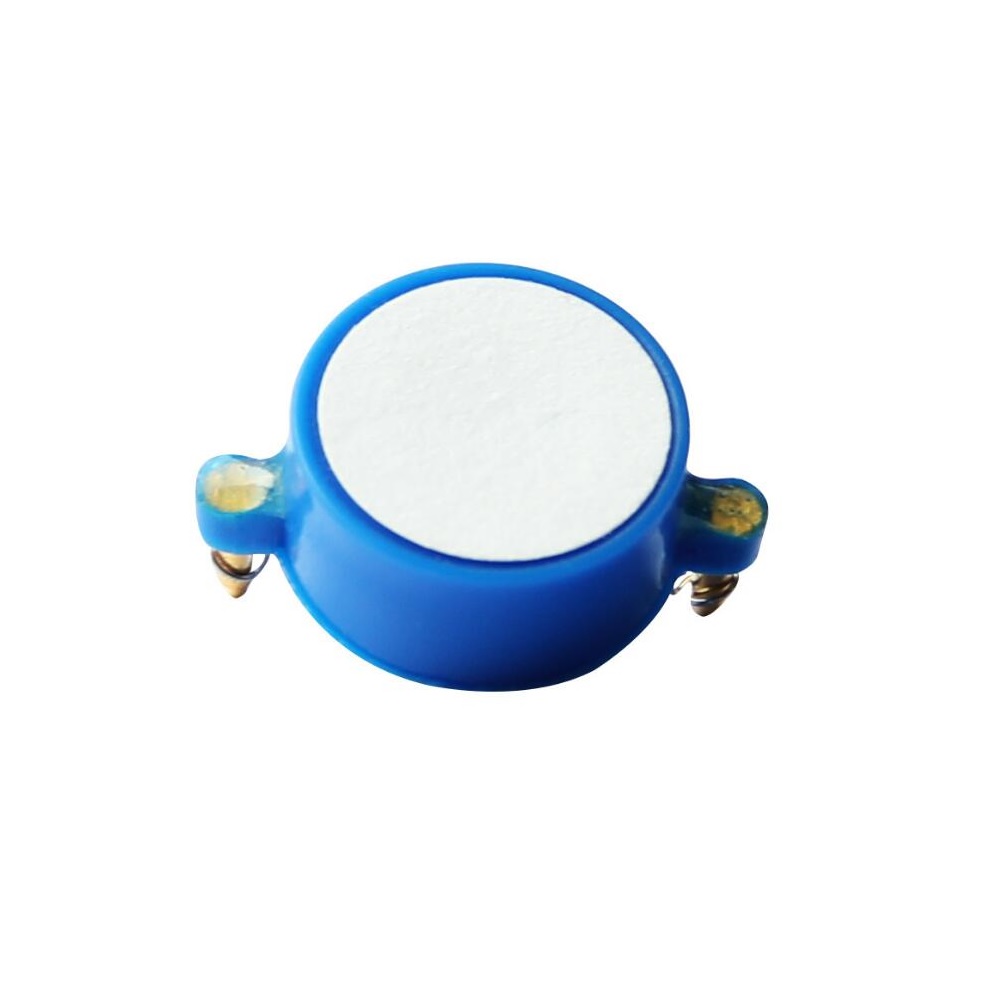

The ZE07-CH2O module employs a mature electrochemical sensing principle specifically tuned for formaldehyde (CH2O) detection, ensuring high selectivity against common interfering gases like alcohol and CO. Its sophisticated internal signal conditioning circuitry provides excellent linear output and stability across its 0 to 5 ppm measurement range.
Designed for reliable operation in environments from 0°C to 50°C and 15% to 90% relative humidity (non-condensing), the module is suited for continuous monitoring applications. The combination of low power consumption and multiple output options makes it a versatile solution for integrating precise formaldehyde measurement into smart home devices, HVAC controls, and portable air quality analyzers.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 7 × 3 cm |
