Teltonika TRB501 Industrial 5G Gateway w/ 2.5GbE, Modbus
Teltonika TRB501 Industrial 5G Gateway w/ 2.5GbE, Modbus - Image 2
Teltonika TRB501 Industrial 5G Gateway w/ 2.5GbE, Modbus - Image 3
Teltonika TRB501 Industrial 5G Gateway w/ 2.5GbE, Modbus - Image 4
SKU: IOWC-1906
📋 GST Invoice Available

Teltonika TRB501 Industrial 5G Gateway w/ 2.5GbE, Modbus

₹51,179.00 (Inclusive of all taxes)
Out of Stock

The Teltonika TRB501 Industrial 5G Gateway is a rugged, DIN-rail mountable cellular router designed for mission-critical IIoT deployments. It features 5G Sub-6 GHz SA/NSA and LTE Cat 19/18 connectivity, a 2.5 Gbps Ethernet port, and runs Teltonika’s RutOS with built-in support for Modbus, DNP3, and MQTT protocols.

Features

  • 5G & LTE Connectivity: Supports 5G Sub-6 GHz SA/NSA (3GPP Release 16) and 4G LTE Cat 19/18 for ultra-low latency and high-speed data transfer up to 2.5 Gbps via Ethernet.
  • Industrial I/O & Protocols: Equipped with 2x digital I/O and native support for industrial protocols including Modbus, DNP3, DLMS/COSEM, OPC UA, and MQTT for seamless SCADA and telemetry integration.
  • Rugged & Efficient Design: Features a compact, anodized aluminum enclosure rated for operation from -40°C to +75°C, with ultra-low power consumption (<5W max) for continuous 24/7 operation.
  • Advanced Networking & Security: Runs on RutOS with built-in VPN support (WireGuard, OpenVPN, IPsec) and offers flexible SIM + eSIM connectivity with automatic network switching for reliable, secure remote access.

Out of stock

Description

The Teltonika TRB501 is a high-performance industrial gateway engineered to deliver next-generation 5G connectivity to demanding Industrial Internet of Things (IIoT) environments. Its Qualcomm ARM Cortex-A7 processor (1.5 GHz) paired with 512 MB RAM and 512 MB Flash memory handles data-intensive applications, from real-time telemetry to secure video streaming, with ease. The integrated 2.5 Gbps Ethernet interface ensures backhaul capacity matches the high throughput of 5G networks.

Built for reliability in harsh conditions, the TRB501 operates across an extreme temperature range from -40°C to +75°C. Its power design accepts a wide 9–30 VDC input, typical of industrial control panels, and maintains very low power consumption for energy-sensitive installations. The gateway supports a comprehensive suite of industrial automation protocols out-of-the-box, enabling direct integration with PLCs, smart meters, and sensors without additional hardware or complex software gateways.

Key Features

  • Ultra-fast 5G Sub-6 GHz SA/NSA and 4G LTE Cat 19/18 cellular connectivity with carrier aggregation.
  • High-speed 2.5 Gigabit Ethernet port for data-intensive backhaul and local network connections.
  • Integrated support for key IIoT protocols: Modbus, DNP3, DLMS/COSEM, OPC UA, and MQTT.
  • Dual SIM capability (1x Mini SIM + optional eSIM) with automatic failover for network redundancy.
  • RutOS operating system with advanced VPN features (WireGuard, OpenVPN, IPsec) and robust firewall.
  • Rugged, compact aluminum housing designed for DIN-rail, wall, or surface mounting.
  • Wide-range 9–30 VDC power input and ultra-low operational power consumption (<5W max).
  • Two configurable digital input/output channels for monitoring alarms or controlling external devices.

Applications

  • Industrial SCADA systems and remote telemetry for oil & gas, water/wastewater, and manufacturing.
  • Smart Grid and Advanced Metering Infrastructure (AMI) with DLMS/COSEM protocol support.
  • Secure, high-bandwidth connectivity for Point-of-Sale (POS) systems and digital signage.
  • Mission-critical security and surveillance installations requiring reliable 5G video backhaul.
  • Fleet management and mobile asset tracking in transportation and logistics.
  • Building Automation Systems (BAS) and environmental monitoring in harsh climates.

Technical Specifications

ModelTRB501
Cellular Connectivity5G Sub-6 GHz SA/NSA, 4G LTE Cat 19/18, 3G
SIM Support1x Mini SIM (2FF) + eSIM (order-code dependent)
CPUQualcomm ARM Cortex-A7, 1.5 GHz
Memory512 MB RAM, 512 MB Flash
Ethernet Interface1x 2.5 Gbps Port
Digital I/O2x shared digital input/output
Supported ProtocolsMQTT, Modbus, OPC UA, DLMS/COSEM, DNP3, HTTP(S)
Power Input9–30 V DC
Power ConsumptionIdle: < 1.5 W, Maximum: < 5 W
Operating Temperature-40°C to +75°C
Operating SystemRutOS
MountingDIN rail, wall, or flat surface
Dimensions (L x W x H)100 mm x 93.4 mm x (height not specified)
Weight241 g

Frequently Asked Questions

What industrial protocols does the TRB501 gateway support natively?

The TRB501 natively supports Modbus (TCP/RTU), DNP3, DLMS/COSEM for smart metering, OPC UA, and MQTT. This built-in protocol stack allows direct integration with PLCs, RTUs, and smart meters without requiring an external protocol converter, simplifying SCADA and telemetry system architecture. Configuration is managed through the RutOS web interface.

How do I configure the digital I/O pins on the TRB501?

The two shared digital I/O pins are configured via the RutOS web interface or CLI. They can be set as inputs to monitor dry contact status (e.g., alarm sensors) or as outputs to control relays or LEDs. You define the pin mode, logic polarity, and actions (like sending an MQTT message on state change) within the system's I/O configuration menu, enabling integration with physical world events.

Can the TRB501 operate on both 5G Standalone (SA) and Non-Standalone (NSA) networks?

Yes, the TRB501 supports both 5G Standalone (SA) and Non-Standalone (NSA) network architectures, complying with 3GPP Release 16. It will automatically connect to the best available 5G or fallback 4G LTE network based on carrier provisioning and signal strength. This dual-mode support ensures forward compatibility with evolving 5G infrastructure while maintaining reliable connectivity on existing LTE networks.

What power supply is required, and what is the typical power consumption?

The gateway requires a 9–30 VDC power source, typically supplied by the included 9W PSU or an industrial DIN-rail power supply. Power consumption is very low, with idle usage under 1.5 watts and a maximum draw below 5 watts during peak 5G data transmission. This efficiency makes it suitable for solar-powered or battery-backed installations where energy usage is critical.

How do I set up a secure VPN connection using the TRB501?

The TRB501's RutOS includes multiple VPN client/server options. You can configure WireGuard, OpenVPN, or IPsec tunnels directly through the web interface. Navigate to the VPN section, select your protocol, and input the server details, keys, and authentication parameters provided by your VPN service or corporate network. The gateway can maintain persistent, encrypted tunnels for secure remote access to your IIoT devices and data.

Package Includes

  • 1 x Teltonika TRB501 Industrial 5G Gateway
  • 1 x 9W Power Supply Unit (PSU)
  • 4 x Mobile Antennas (Swivel, SMA Male)
  • 1 x Micro-USB Cable (0.8 m)
  • 1 x Ethernet Cable
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.241 kg
Dimensions 10 × 9.34 cm

Related Products

Out of Stock

Teltonika TRB145 Industrial RS485 LTE Gateway

14,969.00
Learn More
Out of Stock

Teltonika TRB143 Industrial M-Bus Cellular Gateway w/ 4G LTE Cat 4

22,919.00
Learn More
Out of Stock

PUSR USR-WIFI232-B2 Industrial UART to WiFi Module

6,919.00
Learn More
Out of Stock

LilyGO T-RSS3 ESP32-S3 Development Board w/ RS232 & RS485 5V Module

3,359.00
Learn More
Out of Stock

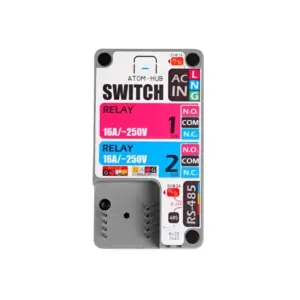

M5Stack ATOM HUB AC/DC Remote Control Switch Kit

2,539.00
Learn More
Out of Stock

AVATTO TRV16-WiFi Smart Thermostatic Radiator Valve

1,799.00
Learn More
Out of Stock

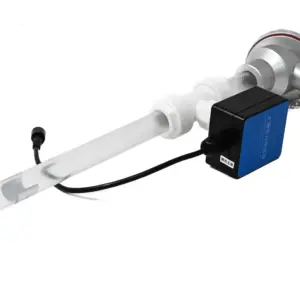

SN-3001-TRZL-N01-75cm Soil Tension Transmitter - RS485 Modbus, PVC Shell

9,987.00
Learn More
Out of Stock

Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet

11,919.00
Learn More
Out of Stock

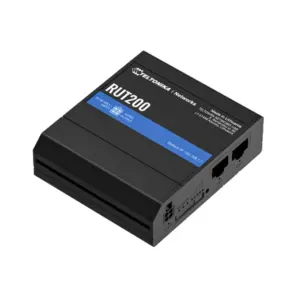

Teltonika RUT200 Industrial Cellular Router w/ 4G LTE, Wi-Fi & Dual ETH

10,689.00
Learn More
Out of Stock

Wittelb WIN-GW-4G+RS485 MQTT IoT Gateway

5,444.00
Learn More
Out of Stock

LilyGO T-Vending ESP32-S3 IoT Dev Board w/ WiFi, Bluetooth, RS485 & PCIe

3,149.00
Learn More
Out of Stock

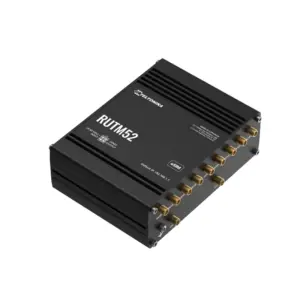

Teltonika RUTM52 Industrial Dual 5G Router w/ Wi-Fi 5 & 5x Gigabit LAN
