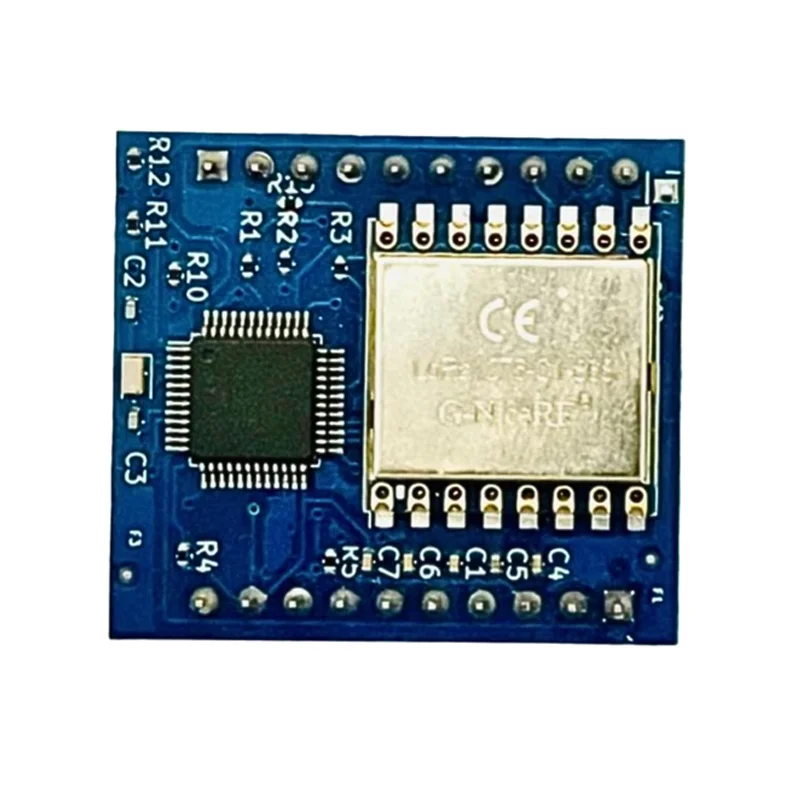

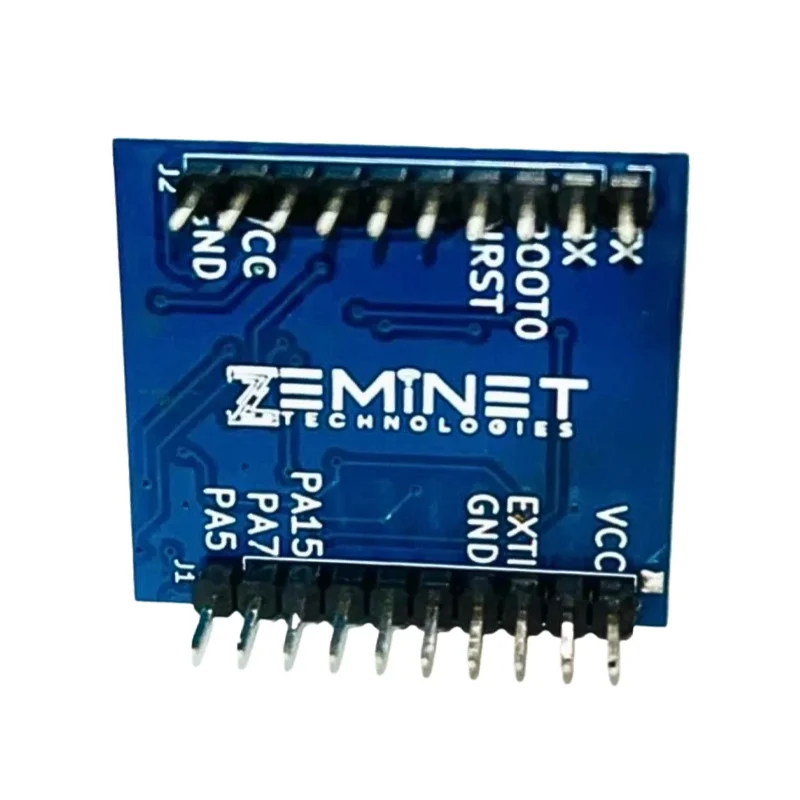

Zeminet LoRaMod865 LoRaWAN Module w/ SX1276 & STM32L0

The STM32L0 microcontroller can be programmed using STM32CubeIDE or the ARM Mbed online compiler. You will need a compatible ST-LINK programmer/debugger to connect via the module's SWD (Serial Wire Debug) interface pins. Development involves writing embedded C code to manage the SX1276 transceiver via SPI and implement the LoRaWAN stack (e.g., Semtech's LoRaMac-node) for network joining and data transmission.

The frequency plan is typically hard-coded in the firmware based on the SX1276's radio configuration. You must select the appropriate region-specific LoRaWAN stack version (e.g., EU868 or IN865) during firmware development. Key parameters to set include the center frequency, bandwidth (e.g., 125 kHz), spreading factor, and coding rate, all defined within the LoRaMAC layer initialization code before the module joins the network.

While exact figures depend on firmware, expect a peak current draw of approximately 120-140 mA during a +20 dBm transmission burst. In deep sleep mode, with the STM32L0 in STOP mode and the SX1276 in sleep state, consumption can drop to a few microamps. Accurate measurement requires configuring the MCU's low-power modes and the transceiver's operating states via your application code to optimize battery life.

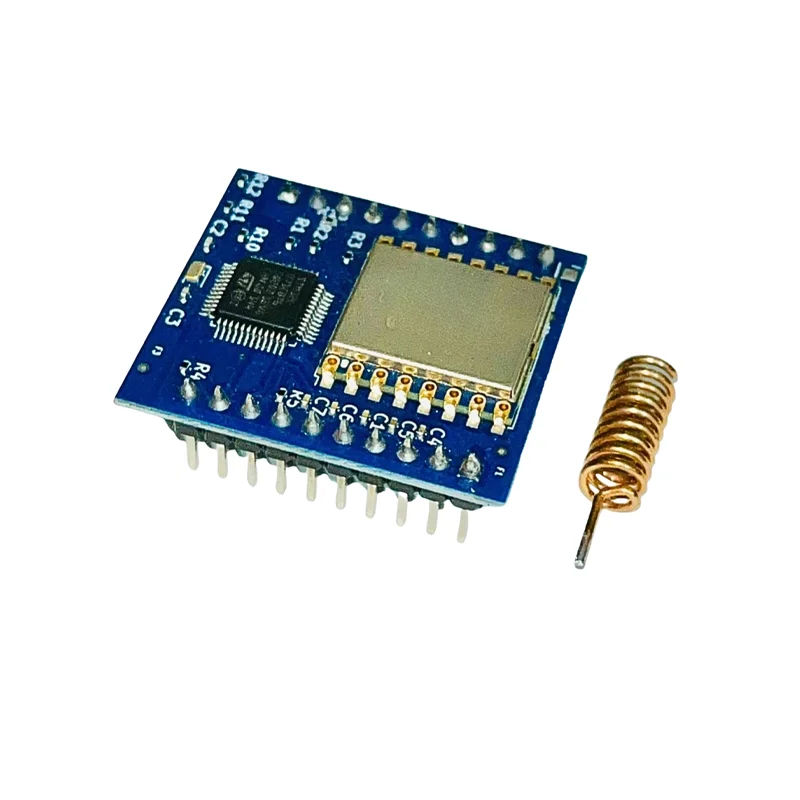

The module features a spring antenna soldered directly to the PCB. Replacing it requires careful desoldering and soldering of a new antenna connector or wire, which is not recommended for typical users. For optimal performance, it is best to use the module as supplied. If an external antenna is required, consider a module variant with an IPEX or SMA connector, or design a custom PCB that integrates the LoRaMod865 chipset with your preferred antenna port.
