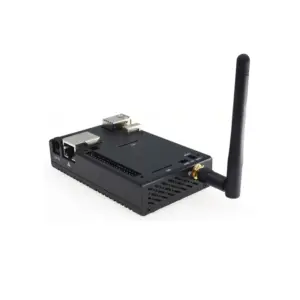

EDATEC ED-CM4NANO10-0108-C CM4 Baseboard w/ Antenna & Case

₹12,849.00 (Inclusive of all taxes)
Out of Stock

The EDATEC ED-CM4NANO10-0108-C is an industrial-grade embedded computer based on the Raspberry Pi Compute Module 4, featuring a Broadcom BCM2711 quad-core CPU, 1GB RAM, 8GB eMMC, dual-band Wi-Fi, and Gigabit Ethernet with PoE support for robust IoT and edge computing applications.

Features

  • Powered by a Broadcom BCM2711 quad-core Cortex-A72 CPU (1.5GHz) for high-performance edge computing and multimedia processing.
  • Industrial-grade design with metal case, extended operating temperature (-25°C to 60°C), and active cooling for reliable operation in harsh environments.
  • Features dual-band 2.4/5.8 GHz Wi-Fi & Bluetooth 5.0 with external antenna support for robust wireless connectivity.
  • Includes Gigabit Ethernet with official Raspberry Pi PoE HAT compatibility for simplified power-over-Ethernet deployments.
  • Offers extensive I/O including USB 3.0 ports, CSI/DSI camera/display interfaces, and a standard 40-pin GPIO header for flexible expansion.

Out of stock

Description

The EDATEC ED-CM4NANO10-0108-C is a fully-featured industrial carrier board designed for the Raspberry Pi Compute Module 4 (CM4). It transforms the CM4 into a ruggedized, high-performance embedded computer suitable for demanding IoT gateways, edge AI nodes, and industrial automation controllers. The board intelligently addresses thermal management with an integrated heatsink, ensuring stable operation of the CPU, wireless module, and power management unit across an extended temperature range.

Beyond core computing, the baseboard provides comprehensive connectivity essential for industrial integration. This includes a Gigabit Ethernet port with PoE support, dual-band Wi-Fi with an external antenna option, multiple USB 3.0 ports, and full compatibility with Raspberry Pi cameras and displays via CSI and DSI interfaces. Power is supplied via a wide-range 12-18V DC input, and onboard features like a battery-backed Real-Time Clock (RTC), buzzer, and status LEDs enhance its utility in standalone, headless applications.

Key Features

  • Industrial-grade carrier board for Raspberry Pi Compute Module 4 with metal enclosure and active cooling.
  • Broadcom BCM2711 quad-core 64-bit ARM Cortex-A72 processor @ 1.5GHz.
  • Hardware video acceleration supporting H.265 4Kp60 decode and H.264 1080p60 encode/decode.
  • Dual-band 2.4/5.8 GHz Wi-Fi (802.11 b/g/n/ac) and Bluetooth 5.0 BLE with external antenna connector.
  • Gigabit Ethernet port compatible with the official Raspberry Pi PoE HAT for combined data and power.
  • Comprehensive I/O: 2x USB 3.0, 1x USB 2.0, CSI camera interface, DSI display interface, HDMI, and 40-pin GPIO.
  • Onboard RTC with battery backup, system reset button, status LEDs, and an alarm buzzer.
  • Wide 12-18V DC input range via barrel jack or Phoenix terminal for flexible power sourcing.

Applications

  • Industrial IoT (IIoT) gateways for data aggregation and protocol conversion (Modbus, MQTT).
  • Edge computing nodes for computer vision, AI inference, and multimedia processing.
  • Digital signage and kiosk controllers with 4K HDMI and touch display output.
  • Robotics and automation controllers leveraging real-time GPIO and sensor interfaces.
  • Ruggedized network appliances for remote monitoring and telemetry.

Technical Specifications

Processor / SoCBroadcom BCM2711 (Quad-core Cortex-A72 @ 1.5GHz)
RAM1GB LPDDR4-3200 SDRAM
Storage8GB eMMC + microSD card slot
Wireless ProtocolsDual-band Wi-Fi 802.11 b/g/n/ac, Bluetooth 5.0 BLE
Wired Network10/100/1000 Mbps Ethernet (PoE compatible)
Supply Voltage12V - 18V DC
Operating Temperature-25°C to +60°C
Interfaces2x USB 3.0, 1x USB 2.0, HDMI, CSI, DSI, 40-pin GPIO, PoE header
Antenna ConnectorExternal antenna option (PCB antenna default)
Dimensions (Board)95mm x 58mm
Dimensions (Overall with Heatsink)103mm (L) x 62mm (W) x 21.5mm (H)

Frequently Asked Questions

What operating system does this EDATEC CM4 baseboard support?

The board is designed to run the standard Raspberry Pi OS (formerly Raspbian) and other Linux distributions compatible with the Raspberry Pi Compute Module 4. The 8GB eMMC is typically pre-loaded with Raspberry Pi OS, but you can flash your own image via the USB 2.0 port or microSD card slot. It is fully compatible with the official Raspberry Pi software ecosystem, including libraries for GPIO, camera (libcamera), and display interfaces.

How do I power the ED-CM4NANO10-0108-C and can I use Power over Ethernet (PoE)?

You can power the board via the 12-18V DC input using either the 5.5/2.5mm barrel jack or the Phoenix terminal block. For Power over Ethernet, you must install an official Raspberry Pi PoE HAT onto the dedicated 4-pin header on the board. The Gigabit Ethernet port then receives both data and power from a compatible PoE switch or injector, simplifying cable management in industrial installations.

Can I connect an external antenna for better Wi-Fi range?

Yes, the board supports an external Wi-Fi/BT antenna. The default configuration uses a PCB antenna, but you can connect an external antenna via the onboard connector (typically an IPEX or SMA, depending on the variant) to improve signal strength and range in metal enclosures or areas with high interference. Ensure the antenna is tuned for 2.4GHz and 5GHz bands.

What are the steps to connect a Raspberry Pi camera or display?

Connecting peripherals is straightforward due to full Raspberry Pi 4B compatibility. For a camera, use a standard Raspberry Pi CSI flex cable to connect to the onboard CSI interface. For the official 7-inch touch display, use its DSI ribbon cable with the board's DSI port. Ensure the correct drivers are enabled in the Raspberry Pi OS configuration (using raspi-config) for the hardware to be recognized and function properly.

Package Includes

  • 1 x EDATEC ED-CM4NANO10-0108-C Baseboard with Metal Case
  • 1 x Wi-Fi Antenna

Additional Information

Weight 0.4 kg
Dimensions 10.3 × 6.2 × 2.15 cm
