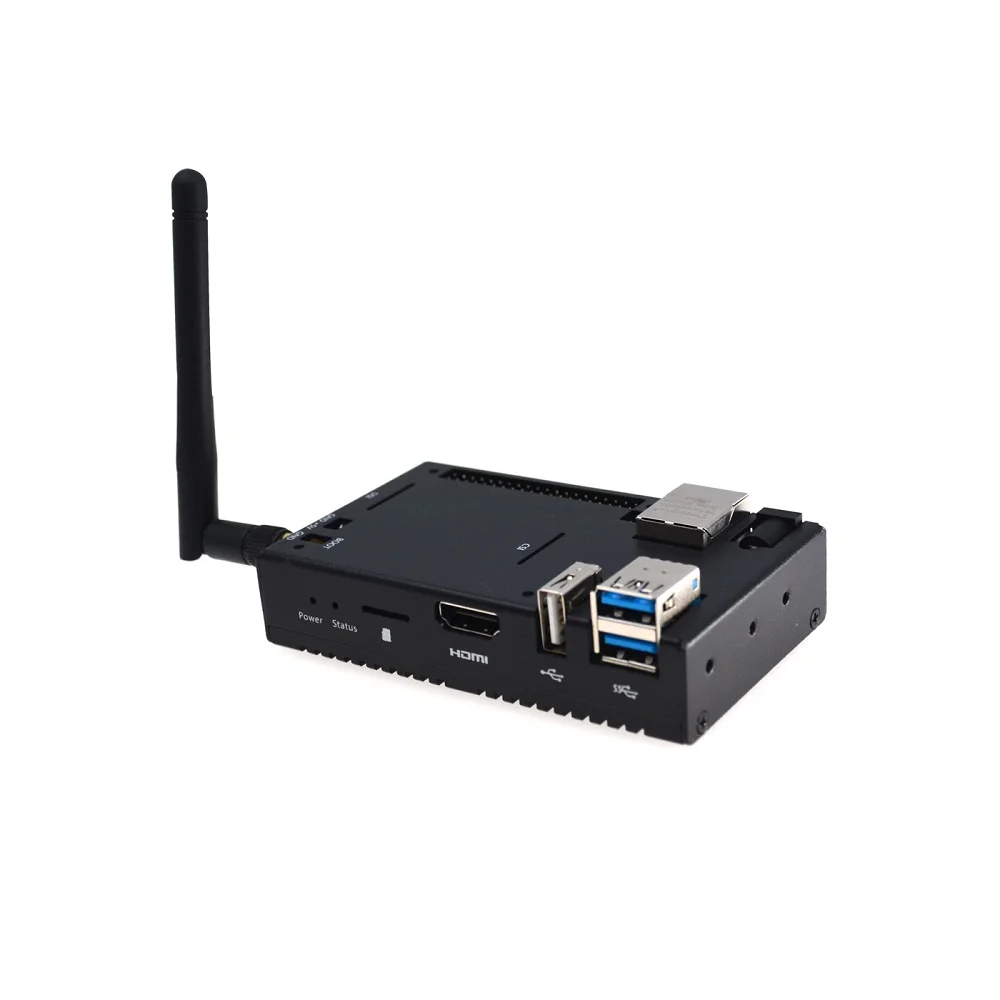

EDATEC ED-CM4NANO10-1208-C CM4 Baseboard w/ WiFi, Antenna, Metal Case

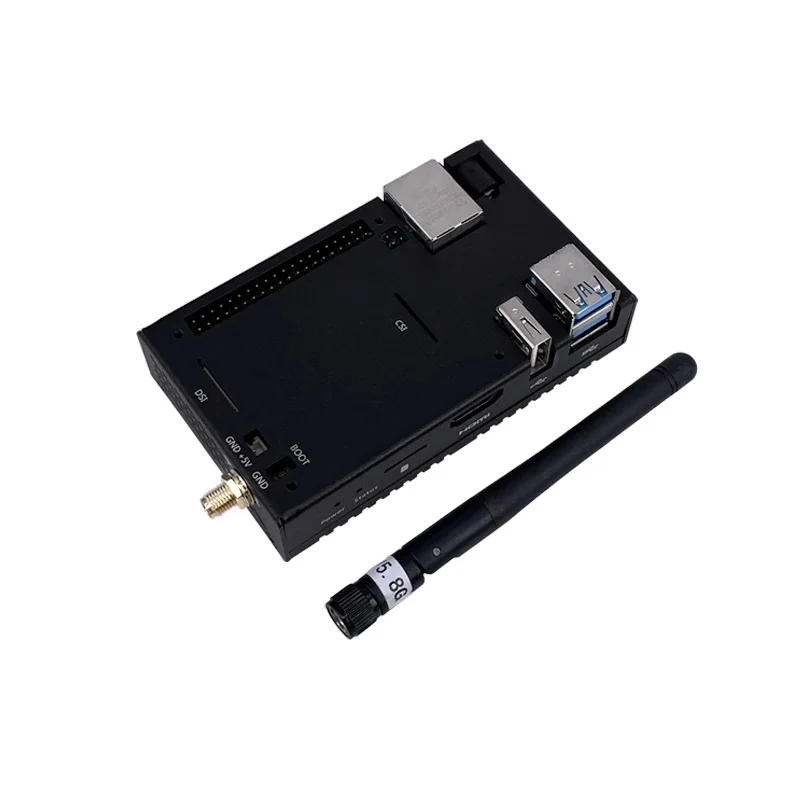

EDATEC ED-CM4NANO10-1208-C CM4 Baseboard w/ WiFi, Antenna, Metal Case - Image 2

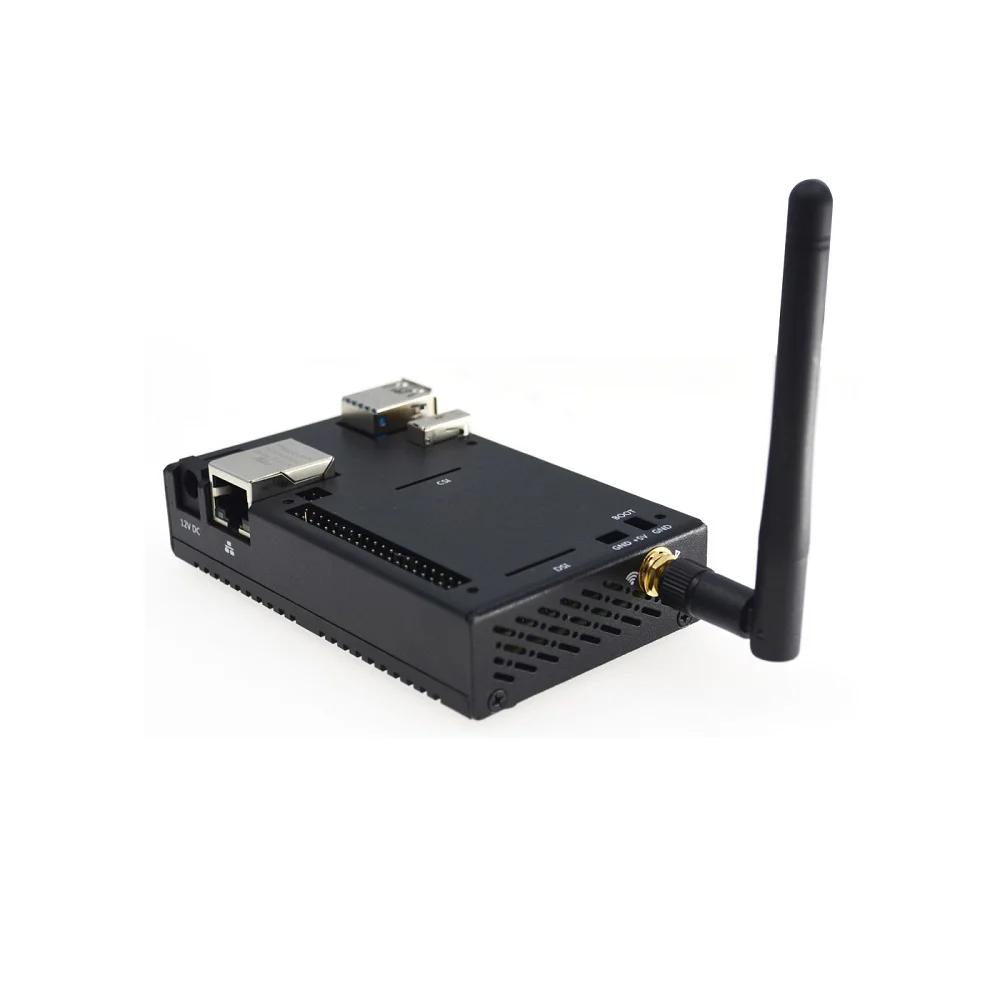

EDATEC ED-CM4NANO10-1208-C CM4 Baseboard w/ WiFi, Antenna, Metal Case - Image 3
SKU: IOWC-1371
📋 GST Invoice Available

EDATEC ED-CM4NANO10-1208-C CM4 Baseboard w/ WiFi, Antenna, Metal Case

₹12,679.00 (Inclusive of all taxes)
Out of Stock

The EDATEC ED-CM4NANO10-1208-C is an industrial-grade embedded computer baseboard built around the Raspberry Pi Compute Module 4 (CM4). It features a Broadcom BCM2711 quad-core Cortex-A72 CPU, 2GB LPDDR4 RAM, 8GB eMMC storage, dual-band Wi-Fi with external antenna support, and a rugged metal case for reliable operation in demanding IoT and edge computing applications.

Features

  • Powered by Raspberry Pi Compute Module 4 with Broadcom BCM2711 quad-core Cortex-A72 CPU at 1.5GHz for high-performance edge computing.
  • Industrial-grade design with metal case, integrated heatsink, and wide operating temperature range (-25°C to 60°C) for reliable deployment.
  • Comprehensive I/O includes Gigabit Ethernet with PoE support, USB 3.0 ports, CSI/DSI camera/display interfaces, and a 40-pin GPIO header for expansion.
  • Integrated 2.4/5.8GHz dual-band Wi-Fi and Bluetooth 5.0 BLE with external antenna connector for robust wireless connectivity.
  • Onboard 8GB eMMC for OS storage, microSD slot for data expansion, and a battery-backed real-time clock (RTC) for time-critical applications.

Out of stock

Description

The EDATEC ED-CM4NANO10-1208-C is a professional-grade embedded system platform engineered for industrial IoT, digital signage, and machine vision applications. It leverages the full processing power and multimedia capabilities of the Raspberry Pi Compute Module 4, housed within a robust, thermally-managed metal enclosure. The board solves critical thermal dissipation challenges for the CPU, wireless module, and power management IC, ensuring stable operation even in high-ambient environments.

Its connectivity suite is tailored for system integration, offering a Gigabit Ethernet port compatible with official PoE HATs for simplified power and data delivery, multiple high-speed USB 3.0 ports, and standard Raspberry Pi interfaces for cameras and displays. The inclusion of a dedicated external antenna connector significantly enhances wireless link reliability over the onboard PCB antenna, making it suitable for applications where consistent Wi-Fi or Bluetooth communication is essential.

Key Features

  • Industrial embedded computer based on the Raspberry Pi Compute Module 4 (CM4) with a rugged metal case and integrated heatsink.
  • High-performance quad-core ARM Cortex-A72 processor capable of 4K video decoding and encoding for multimedia applications.
  • Dual-band 802.11ac Wi-Fi and Bluetooth 5.0 BLE with optional external antenna for improved wireless range and reliability.
  • Gigabit Ethernet port with support for Power-over-Ethernet (PoE) using official Raspberry Pi PoE HATs.
  • Comprehensive I/O expansion via 40-pin GPIO header, two USB 3.0 ports, CSI camera interface, and DSI display interface.
  • Onboard 8GB eMMC for the operating system and a microSD card slot for expanded user data storage.
  • Battery-backed real-time clock (RTC), system buzzer, and status LEDs for enhanced system management.
  • Wide-range 12-18V DC input power via DC jack or Phoenix terminal connector for flexible industrial power sourcing.

Applications

  • Industrial IoT (IIoT) gateways for data acquisition, protocol conversion, and edge analytics.
  • Digital signage and kiosk systems requiring 4K video playback and reliable operation.
  • Machine vision and embedded camera applications using Raspberry Pi HQ cameras.
  • Smart home and building automation controllers with robust wireless and wired connectivity.
  • Thin client and edge computing nodes for retail, hospitality, or educational environments.

Technical Specifications

Model / Part NumberED-CM4NANO10-1208-C
CPU / SoCBroadcom BCM2711, Quad-core Cortex-A72 @ 1.5GHz
RAM2GB LPDDR4-3200 SDRAM
Storage8GB eMMC + microSD Card Slot
Wireless ProtocolsDual-band 2.4/5.8GHz Wi-Fi (802.11 b/g/n/ac), Bluetooth 5.0 BLE
Wired NetworkingGigabit Ethernet (10/100/1000) with PoE Support
Interfaces2x USB 3.0, 1x USB 2.0, HDMI, CSI, DSI, 40-pin GPIO
Power Supply12-18V DC Input (5.5/2.5mm Jack or Phoenix Terminal)
Operating Temperature-25°C to 60°C
Dimensions (L x W x H)103 mm x 62 mm x 21.5 mm
Antenna ConnectorExternal Antenna Connector (Optional)

Frequently Asked Questions

What operating systems are compatible with the EDATEC ED-CM4NANO10-1208-C baseboard?

The board is designed to run the standard Raspberry Pi OS (formerly Raspbian), which is pre-installed on the eMMC. It is also compatible with other ARM-based Linux distributions built for the Raspberry Pi Compute Module 4 platform, such as Ubuntu Server or specialized industrial IoT frameworks. You can update or flash new system images via the onboard USB 2.0 port or the microSD card slot.

How do I enable Power-over-Ethernet (PoE) on this board?

To use PoE, you must attach an official Raspberry Pi PoE HAT to the dedicated 4-pin PoE header on the board. The Gigabit Ethernet port and the header are designed to be fully compatible with this HAT. Once installed and connected to a PoE-enabled network switch, the board will receive both power and data through the single Ethernet cable, simplifying deployment in locations without convenient power outlets.

Can I connect an external antenna to improve wireless performance?

Yes, the board supports an optional external antenna via a standard connector (typically an IPEX/u.FL or SMA port, depending on the specific model configuration). Using an external antenna with higher gain can significantly extend Wi-Fi and Bluetooth range and improve signal reliability in environments with interference or physical obstructions, which is critical for industrial IoT deployments.

What is the purpose of the battery-backed real-time clock (RTC)?

The onboard RTC maintains accurate timekeeping even when the main system power is disconnected. This is essential for applications that log timestamped data, schedule events, or require time-synchronized operations without a continuous network connection for NTP (Network Time Protocol). The included backup battery ensures the clock continues to run during power cycles or outages.

Package Includes

  • 1 x EDATEC ED-CM4NANO10-1208-C Baseboard
  • 1 x Wi-Fi Antenna
  • 1 x Metal Case/Enclosure

Additional Information

Weight 0.4 kg
Dimensions 10.3 × 6.2 × 2.15 cm
