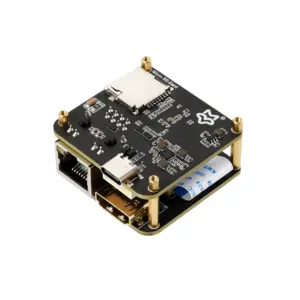

Luckfox PicoKVM Lite IP KVM Remote Management Tool
The Luckfox PicoKVM Lite is a compact IP KVM remote management tool, enabling full control of PCs, servers, and development systems over a network. Powered by the Realtek RV1106G3 processor, it captures 1080p@60fps HDMI video and provides remote keyboard, mouse, and USB storage emulation for comprehensive system maintenance.
Features
- Features Realtek RV1106G3 Cortex-A7 @ 1.2GHz processor with 256MB DDR3 memory.
- Captures real-time 1080p@60fps HDMI video for high-definition remote monitoring.
- Provides comprehensive remote control via keyboard, mouse, and USB storage emulation.
- Integrates 10/100Mbps Ethernet for reliable network access and low-latency video transmission.
- Supports UEFI/BIOS access and GPIO control for robust remote system power management.
Out of stock
The Luckfox PicoKVM Lite is an efficient and lightweight IP KVM solution, purpose-built for seamless remote administration of diverse computing environments, including personal computers, enterprise servers, and specialized development boards. At its core, the device leverages the Realtek RV1106G3 processor, complemented by 256MB of DDR3 memory, to deliver robust performance for critical remote tasks. It excels in capturing high-fidelity HDMI video, supporting resolutions up to 1080p at 60 frames per second, ensuring clear visual feedback for troubleshooting and operation.
Beyond video, the PicoKVM Lite provides full remote control capabilities, emulating keyboard, mouse, and USB storage devices over its integrated 10/100Mbps Ethernet interface. This allows for in-depth system interaction, including UEFI/BIOS-level access and file transfer, essential for headless server management and off-site system maintenance. The “Lite” variant relies on a MicroSD card for operating system storage, differentiating it from versions with onboard eMMC. Its design also incorporates GPIO control for host system power management and supports advanced features like Wake-on-LAN and web-based terminal access, making it a versatile tool for embedded and IT professionals.
Additional Information
| Weight | 0.048 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
