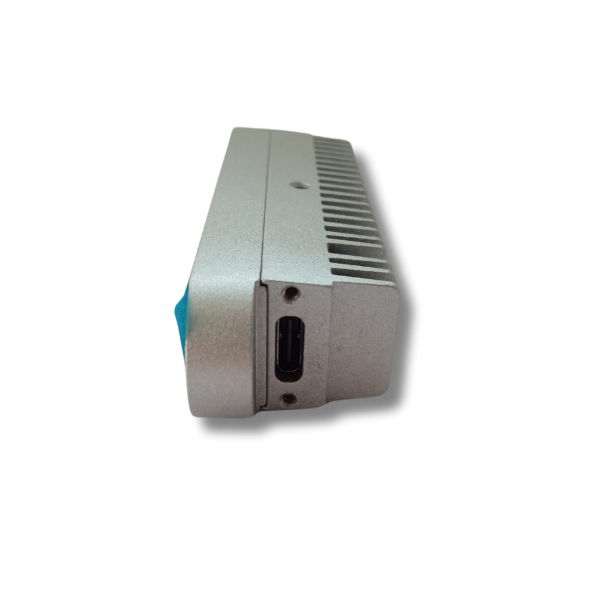

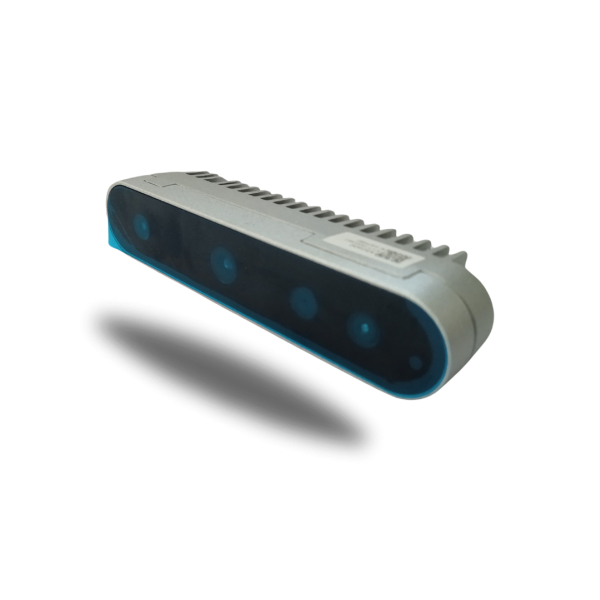

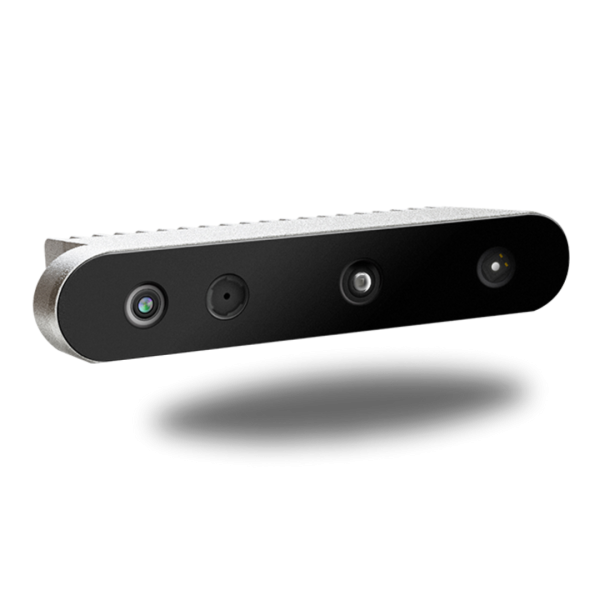

YDLIDAR HP60C RGBD Depth Camera - Structured Light 3D Imaging, USB Type-C
The YDLIDAR HP60C is a compact RGBD depth camera utilizing structured light 3D imaging technology, delivering high-accuracy depth maps and 1080p RGB video via a USB 2.0 Type-C interface. It is designed for integration into robotics, gesture control, and 3D modeling applications requiring synchronized depth and color data.
Features
- Structured Light 3D Imaging for high-accuracy depth perception up to 4 meters.
- Integrated Full HD (1920×1080) RGB camera for seamless texture mapping and object recognition.
- Compact form factor (89.8 x 19.0 x 25.0 mm) with low power consumption (<2W).
- USB 2.0 Type-C interface for easy integration with PCs, Raspberry Pi, and embedded systems.
- Robust environmental adaptability for operation in varying light conditions from -10°C to 50°C.
Out of stock
The YDLIDAR HP60C RGBD Depth Camera employs an active structured light projection system to generate precise depth maps. This technology projects a known pattern onto a scene, and the deformation of this pattern is analyzed by an onboard infrared sensor to calculate distance, providing depth accuracy of less than 2% at 1 meter. The system outputs synchronized 20fps streams of depth data and 1080p RGB video.
Designed for system integrators, the module features a single USB 2.0 Type-C connection for both power and data, simplifying cabling and integration into robotic platforms, interactive kiosks, or 3D scanning rigs. Its compact and robust construction allows for deployment in indoor environments with challenging lighting conditions, supporting applications from navigation to human-computer interaction.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 8.98 × 1.9 × 2.5 cm |
