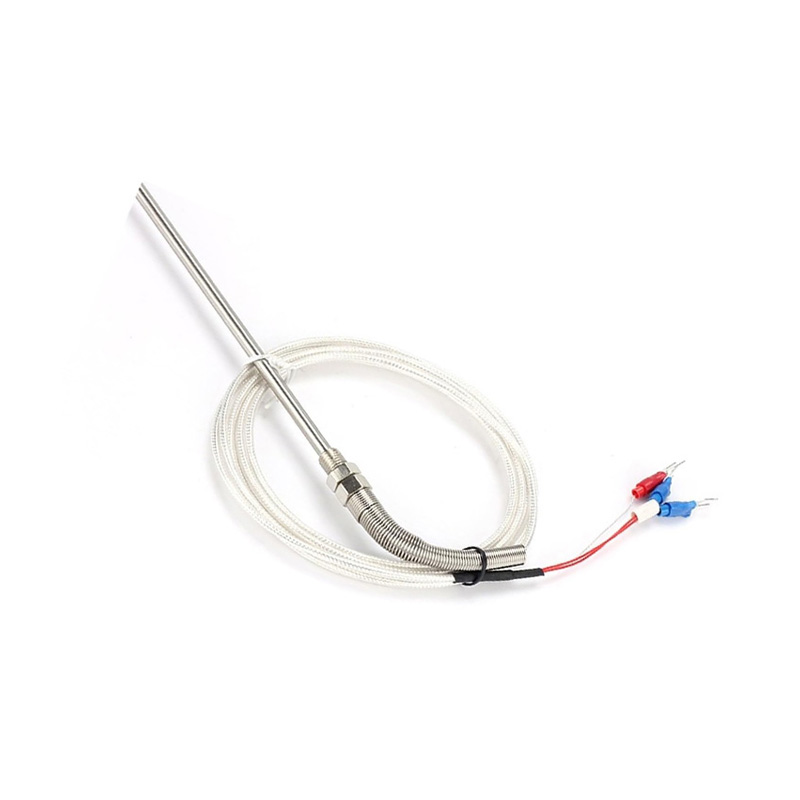

XIQI Electric CG-WZPK-191 PT100 Thermocouple Temperature Sensor, 3x50mm Probe, 2m Cable
The XIQI Electric CG-WZPK-191 is a PT100 RTD thermocouple temperature sensor with a 3x50mm stainless steel sheathed probe and 2-meter cable, designed for industrial temperature monitoring up to 800°C. It provides a standard resistance output compatible with PLCs, temperature controllers, and data acquisition systems requiring high-temperature measurement.
Features
- PT100 RTD sensor with ±1.5°C accuracy for reliable temperature measurement.
- Stainless steel sheathed probe (3mm diameter x 50mm length) for durability in harsh environments.
- Wide operating temperature range from 0°C to 800°C.
- Includes a 2-meter cable for flexible installation and connection to controllers.
- Industrial-grade construction suitable for furnaces, ovens, kilns, and process control.
Out of stock
The CG-WZPK-191 is a Resistance Temperature Detector (RTD) utilizing a PT100 platinum element, whose electrical resistance changes predictably with temperature. This sensor provides a highly stable and repeatable analog signal output, making it superior for precision industrial applications over a broad thermal range. The probe is housed in a robust stainless steel sheath, offering mechanical protection and resistance to corrosion in high-temperature atmospheres.
Designed for direct integration into industrial control systems, the sensor’s 2-meter lead wire allows for remote mounting from the measurement point to the signal conditioning or readout device. Its simple two-wire configuration outputs a resistance value that can be easily interpreted by standard temperature controllers, PLC analog input modules, or dedicated RTD signal conditioners for accurate process monitoring and control.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 6 × 10 × 1 cm |
