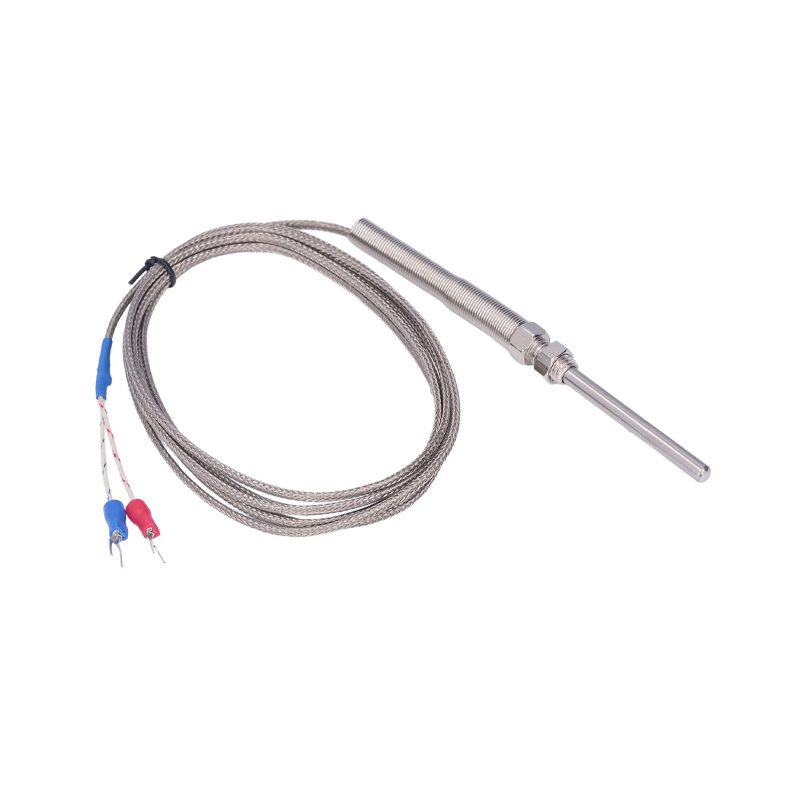

XIQI Electric CG-WRNT-03 K-Type Thermocouple Sensor, M8 Thread, 5x50mm Probe, 5m Cable
The XIQI Electric CG-WRNT-03 is a K-type thermocouple temperature sensor featuring an M8-threaded stainless steel probe and a 5-meter cable. Designed for industrial temperature controllers, PLCs, and data acquisition systems, it provides reliable temperature monitoring in high-heat environments up to 600°C.
Features
- K-Type (NiCr-NiAl) thermocouple with ±1.5°C accuracy for precise temperature measurement.
- Stainless steel M8-threaded probe (5mm diameter x 50mm length) for robust mechanical mounting.
- Wide operating temperature range from 0°C to 600°C, suitable for industrial ovens and furnaces.
- Includes a 5-meter high-temperature cable for flexible installation and remote sensor placement.
- Standard thermocouple connector compatibility for direct integration with controllers and PLCs.
Out of stock
The CG-WRNT-03 is a grounded-junction, industrial-grade K-type thermocouple sensor. It operates on the Seebeck effect principle, generating a millivolt signal proportional to the temperature difference between its measurement junction and reference point. The stainless steel sheath provides mechanical protection and corrosion resistance in harsh environments.
This sensor is engineered for continuous monitoring in high-temperature processes. Its M8 threaded design allows for secure installation into tanks, pipes, or equipment walls. The extended 5-meter cable, with high-temperature insulation, enables placement flexibility while maintaining signal integrity for accurate readings on compatible temperature controllers, data loggers, or PLC analog input modules.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 6 × 1 cm |
