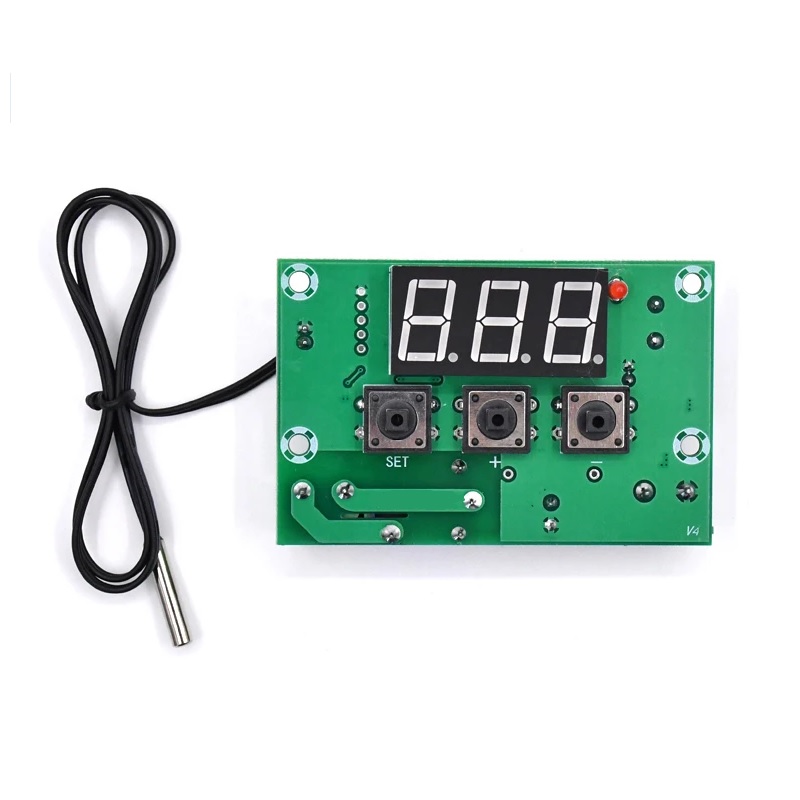

XH-W1301 Digital Display Intelligent Thermostat Controller - 50℃~110℃ Range, 0.1℃ Accuracy, 12V DC/AC, 50cm Cable

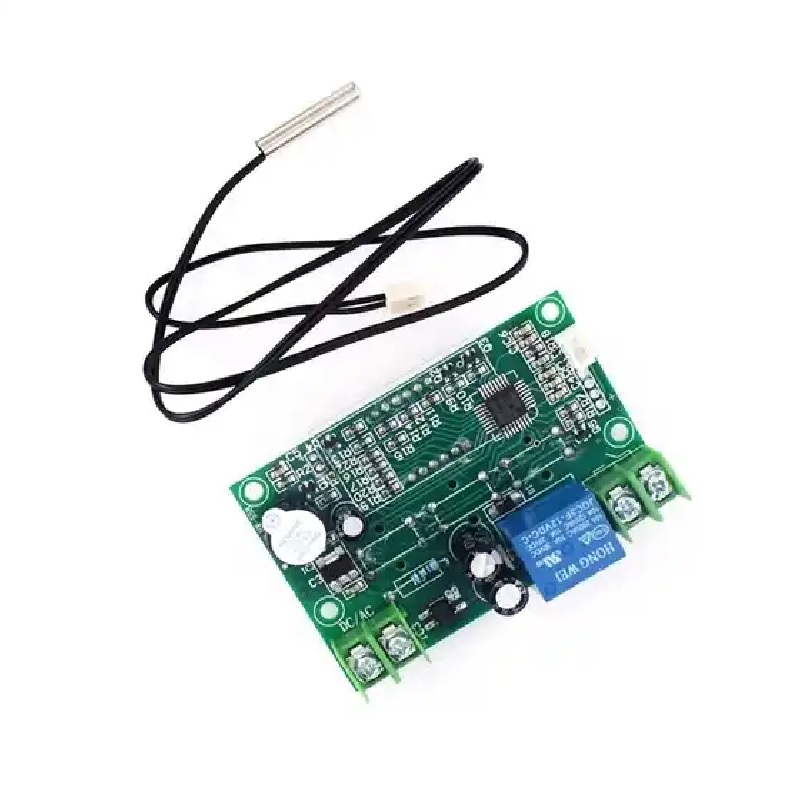

XH-W1301 Digital Display Intelligent Thermostat Controller - 50℃~110℃ Range, 0.1℃ Accuracy, 12V DC/AC, 50cm Cable - Image 2
SKU: SENS-3429
📋 GST Invoice Available

XH-W1301 Digital Display Intelligent Thermostat Controller - 50℃~110℃ Range, 0.1℃ Accuracy, 12V DC/AC, 50cm Cable

₹249.00 (Inclusive of all taxes)
Out of Stock

The XH-W1301 is a 12V DC/AC powered digital thermostat controller with a -50°C to 110°C sensing range and 0.1°C resolution, designed for integration into heating, cooling, and environmental control systems via its 50cm sensor cable.

Features

  • Wide temperature control range from -50°C to 110°C with 0.1°C resolution
  • Operates on 12V DC or AC power for flexible system integration
  • Features a clear digital display for real-time monitoring and setpoint adjustment
  • Includes configurable hysteresis (0.5°C to 15.0°C) and high-temperature alarm
  • Supplied with a 50cm cable for remote sensor placement

Out of stock

Description

The XH-W1301 Intelligent Thermostat Controller provides precise digital temperature regulation for a variety of applications. It connects to a remote temperature sensor via a 50cm cable, allowing the sensing element to be placed in the optimal location while the control unit can be mounted separately. The device utilizes a high-speed memory chip for reliable operation and features automatic power-off memory to retain settings.

Its control logic includes adjustable hysteresis to prevent rapid cycling of connected relays or contactors, enhancing system longevity and stability. The unit includes audible feedback via a keypress buzzer (which can be disabled) and a separate high-temperature alarm buzzer for safety. Designed for panel embedding, it offers a professional installation profile for industrial, HVAC, and DIY environmental control projects.

Key Features

  • Digital display for clear readout of current temperature and setpoint
  • High-precision control with 0.1°C accuracy and configurable hysteresis from 0.5°C to 15.0°C
  • Dual 12V DC/AC power input compatibility for versatile installation
  • Integrated high-temperature and keypress audible alarms with mute function
  • Automatic memory function retains settings after power loss
  • Designed for embedded panel mounting with a compact form factor
  • Includes a 50cm sensor cable for flexible probe placement
  • Optimized performance-to-cost ratio for reliable temperature regulation

Applications

  • Precise temperature regulation in DIY incubators, terrariums, and fermentation chambers
  • HVAC auxiliary control for fans, heaters, or cooling systems in small enclosures
  • Temperature monitoring and alarm systems for electronic cabinets or server racks
  • Process control in small-scale hobbyist or educational thermal projects
  • Solar water heater or aquarium temperature management systems

Technical Specifications

Model NumberXH-W1301
Rated Voltage12V DC / AC
Temperature Control Range-50°C to 110°C
Resolution0.1°C (-9.9°C to 99.9°C range), 1°C (outside this range)
Control Accuracy0.1°C
Hysteresis Setting Range0.5°C to 15.0°C
Cable Length50 cm
Product Weight45 g
Shipping Weight0.047 kg
Shipping Dimensions10.5 cm x 9 cm x 3 cm

Frequently Asked Questions

What is the input voltage requirement for the XH-W1301 thermostat?

The XH-W1301 is designed to operate on 12 volts, accepting both DC and AC power sources. This flexibility allows it to be powered by a standard AC adapter, a DC power supply, or directly from a 12V battery system, making it suitable for mobile, industrial, and residential installations.

How do I connect the temperature sensor and what is the cable length?

The thermostat connects to its remote temperature sensor via the included 50cm (approximately 20-inch) cable. The sensor wires typically connect to dedicated terminals on the controller's rear. This cable length allows you to place the sensing probe away from heat sources or in a more representative location for accurate environmental monitoring.

Can I adjust the sensitivity to prevent the relay from cycling too frequently?

Yes, the XH-W1301 features a configurable hysteresis setting, adjustable from 0.5°C to 15.0°C. Hysteresis is the temperature difference required between turning the output off and on again. A larger hysteresis value (e.g., 2.0°C) will result in fewer, longer cycles, which is better for mechanical relays and compressor longevity in cooling systems.

Does the controller remember its settings if the power is disconnected?

Yes, the unit includes an automatic power-off memory function. Your configured setpoint temperature, hysteresis, and alarm settings are stored in non-volatile memory and will be retained even after a complete loss of power, ensuring the system resumes operation with your previous parameters upon restoration of power.

Package Includes

  • 1 x XH-W1301 Digital Display Intelligent Thermostat Controller
  • 1 x 50cm Sensor Cable

Additional Information

Weight 0.045 kg
Dimensions 10.5 × 9 × 3 cm
