Wittelb WIN-SN-TnH-AHT20-AO-V Digital Temperature and Humidity Sensor with Analog Output Voltage Signal

Name: Wittelb WIN-SN-TnH-AHT20-AO-V Digital Temperature and Humidity Sensor with Analog Output Voltage Signal
Brand: Wittelb
SKU: SENS-3396
Price: 5637.00 INR
Availability: OutOfStock

₹5,637.00 (Inclusive of all taxes)

Out of Stock

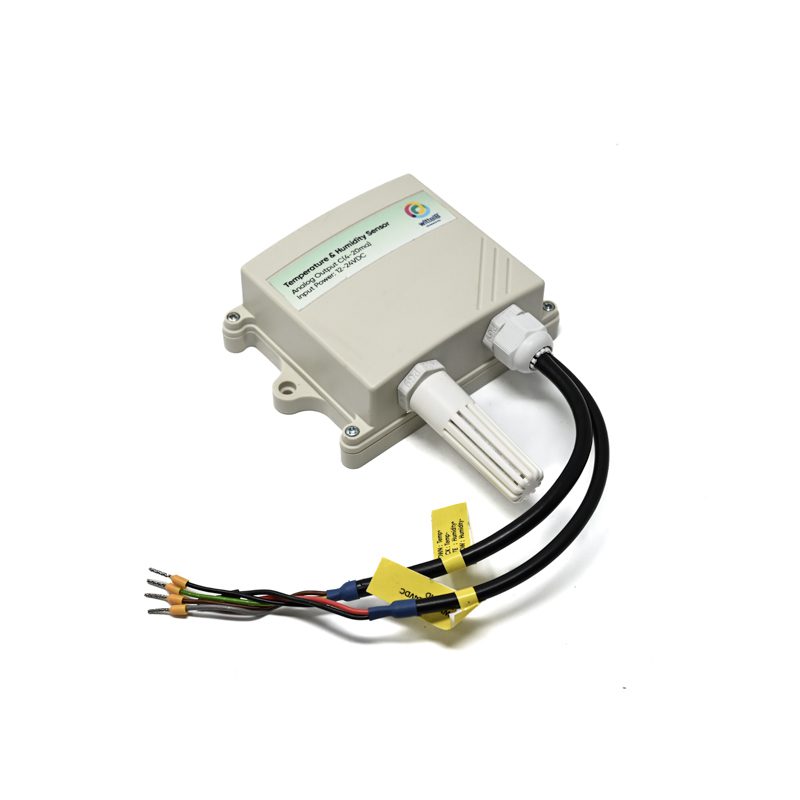

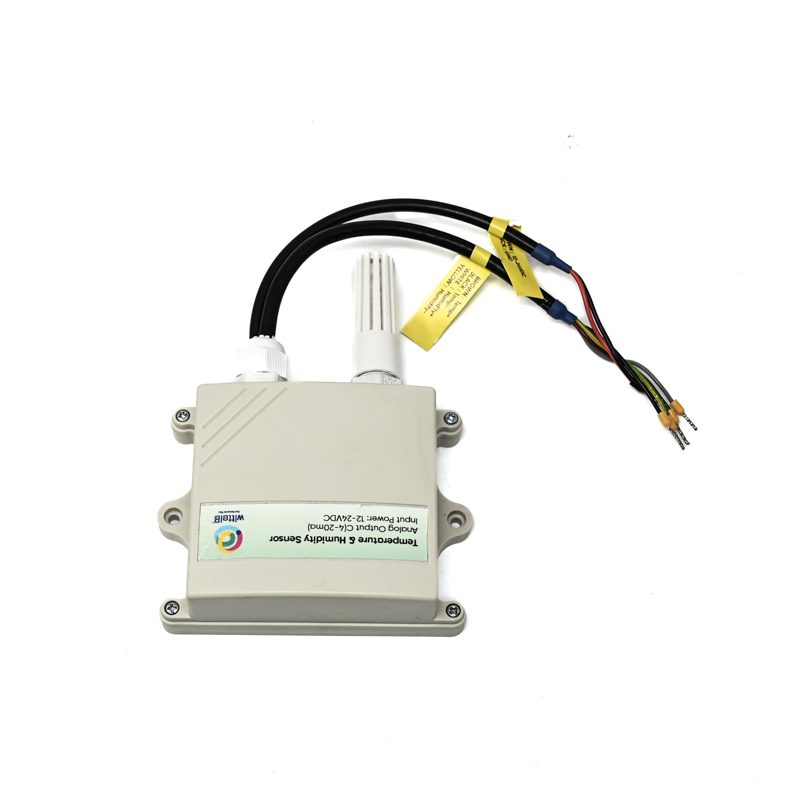

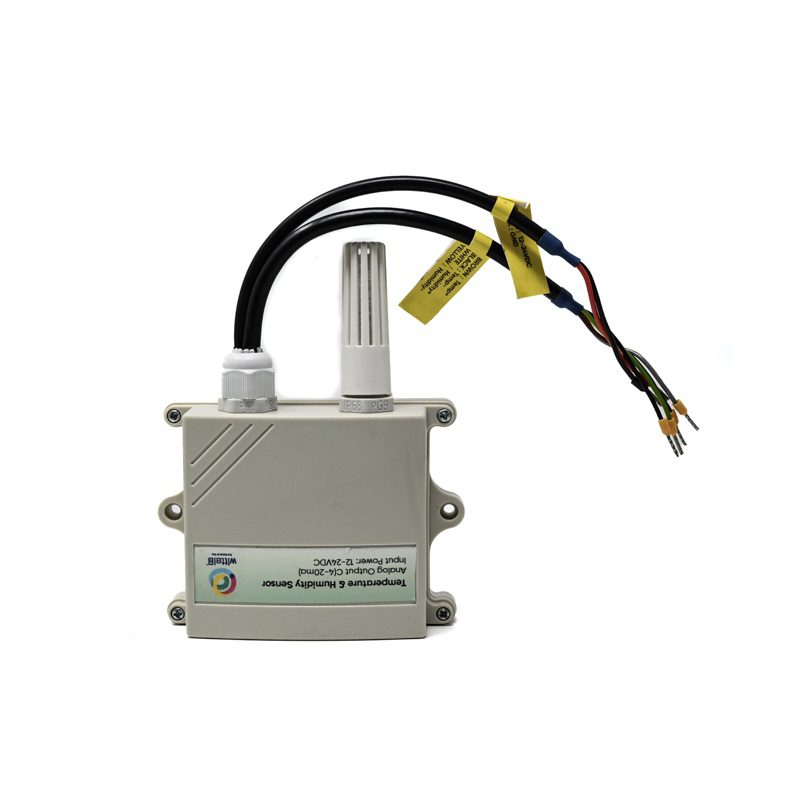

The Wittelb WIN-SN-TnH-AHT20-AO-V is a digital temperature and humidity sensor module featuring a high-precision AHT20 core sensor and a configurable 0-10V analog output. Designed for easy integration into industrial PLCs, building automation systems, and environmental monitoring setups requiring a standard voltage signal interface.

Features

High-precision AHT20 sensor core for accurate temperature (±0.3°C) and humidity (±2% RH) measurement.
Configurable 0-10V analog voltage output with selectable 10-bit or 12-bit resolution.
Wide operating temperature range from -40°C to +85°C for harsh environment deployment.
Compatible with 12-24V DC power supply for industrial and building automation systems.
Compact 85mm x 85mm board format with screw terminal connections for robust wiring.

Out of stock

Get Notified When Available

Description

The WIN-SN-TnH-AHT20-AO-V sensor board integrates a digital AHT20 MEMS sensor for core measurement, paired with a signal conditioning circuit that converts the digital readings to a standardized 0-10V analog output. This design provides the stability and accuracy of a modern digital sensor while delivering the simplicity and long-distance signal integrity of an analog voltage interface.

Its wide supply voltage range and industrial operating temperature specifications make it suitable for direct installation in HVAC ducts, agricultural greenhouses, and outdoor monitoring stations. The board outputs a linear voltage signal proportional to the measured parameter, allowing for straightforward connection to data loggers, PLC analog input modules, or microcontroller ADCs without complex communication protocols.

Key Features

Dual-Parameter Sensing: Simultaneously measures ambient temperature and relative humidity with a single integrated module.
Configurable Analog Interface: Output resolution can be set to 10-bit or 12-bit via onboard jumpers or configuration pins, tailoring the signal granularity to system requirements.
Industrial-Grade Durability: Operates reliably across an extended temperature range from -40°C to +85°C, ensuring performance in extreme climates.
Stable Voltage Output: Provides a clean, linear 0-10V DC signal that is immune to noise over longer cable runs compared to current-loop interfaces.
Broad Power Compatibility: Accepts 12-24V DC input, making it compatible with standard industrial power supplies and control panels.
Simplified Integration: Screw terminal blocks for power, ground, and output signals facilitate quick and secure wiring without soldering.
Optimized Performance-to-Cost Ratio: Delivers the accuracy of a premium digital sensor with the convenience of an analog output in a cost-effective module format.

Applications

HVAC system duct temperature and humidity monitoring for energy management and comfort control.
Greenhouse and agricultural climate control systems requiring reliable analog feedback for actuators.
Industrial process monitoring where temperature/humidity data must be fed into legacy PLC analog input cards.
Building Automation System (BAS) points for indoor air quality and environmental monitoring.
Weather station and outdoor environmental sensing nodes with analog data transmission.

Technical Specifications

Model Number	WIN-SN-TnH-AHT20-AO-V
Core Sensor	AHT20
Measurement Parameters	Temperature, Relative Humidity
Temperature Range	-40°C to +85°C
Humidity Range	0 to 100% RH
Temperature Accuracy	±0.3°C
Humidity Accuracy	±2% RH
Output Signal	Analog Voltage, 0-10V
Output Resolution	Configurable 10-bit / 12-bit
Supply Voltage	12-24V DC
Board Dimensions	85 mm x 85 mm
Operating Temperature	-40°C to +85°C
Product Weight	Approx. 0.258 kg

Frequently Asked Questions

What is the output signal of this sensor and how do I interface it?

This sensor provides a 0-10V analog voltage output proportional to the measured temperature or humidity. You can connect it directly to any device with a high-impedance analog voltage input, such as a PLC analog module, data logger, or microcontroller ADC pin (using a voltage divider if the MCU is 3.3V or 5V). The output resolution is configurable for either 10-bit or 12-bit granularity.

What power supply does this module require?

The module operates from a 12-24V DC power supply. Ensure your power source is within this range and can provide sufficient current (typically less than 50mA). Connect the positive wire to the V+ terminal and the negative to the GND terminal on the board's screw terminal block.

How accurate are the temperature and humidity measurements?

The sensor utilizes an AHT20 chip, providing a temperature accuracy of ±0.3°C and a humidity accuracy of ±2% RH under typical conditions. Accuracy can be affected by extreme temperatures, airflow, and calibration; for highest precision, allow the sensor to stabilize in its environment.

Can this sensor be used outdoors?

Yes, its operating temperature range of -40°C to +85°C makes it suitable for outdoor applications. However, the PCB itself is not waterproof (IP-rated). For outdoor use, you must house the module in a protective, weatherproof enclosure that allows air circulation to the sensor element while preventing direct water ingress.
