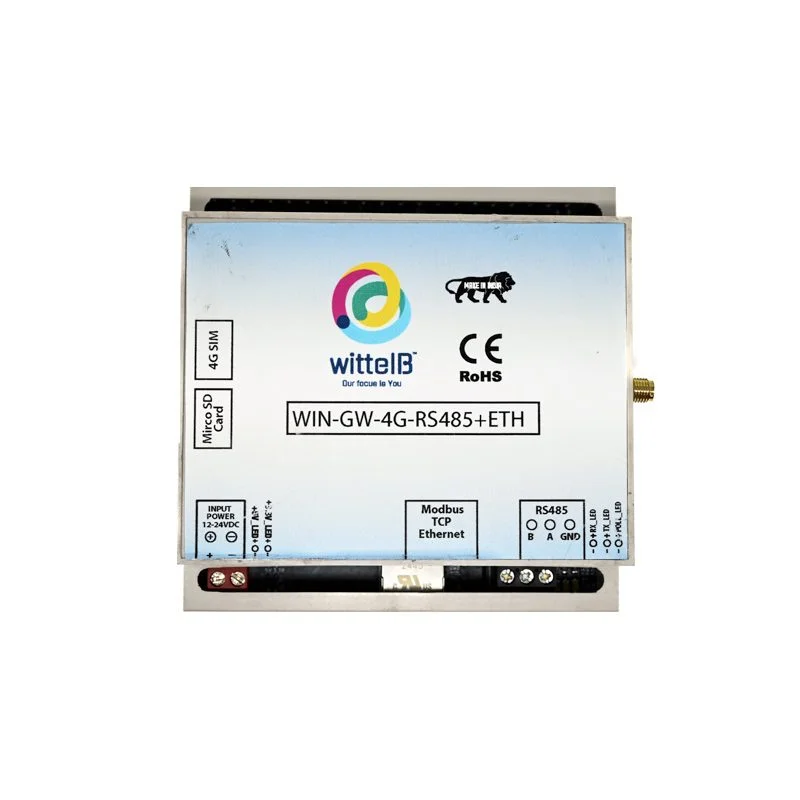

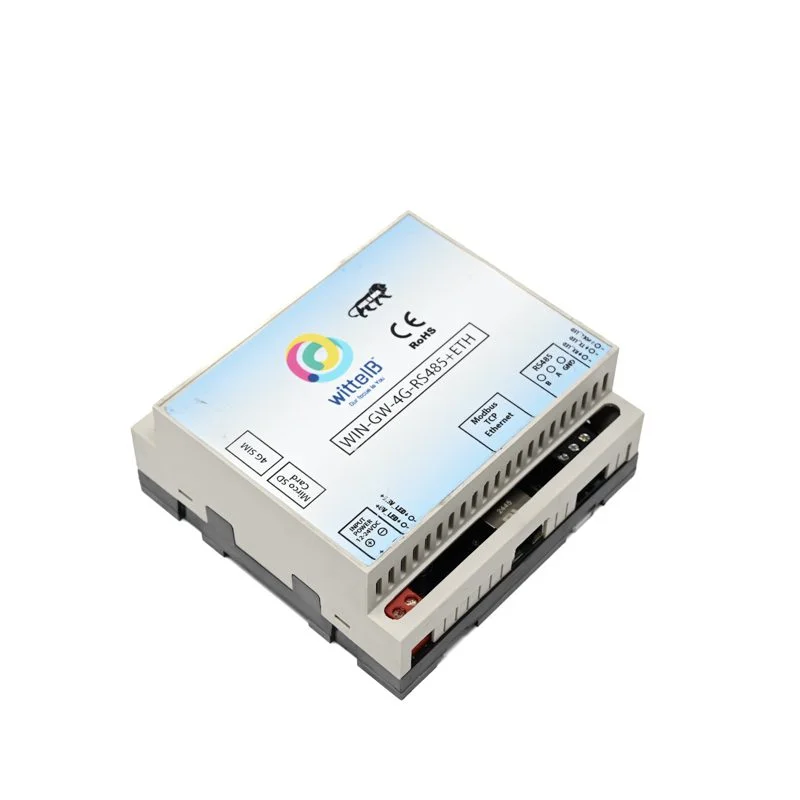

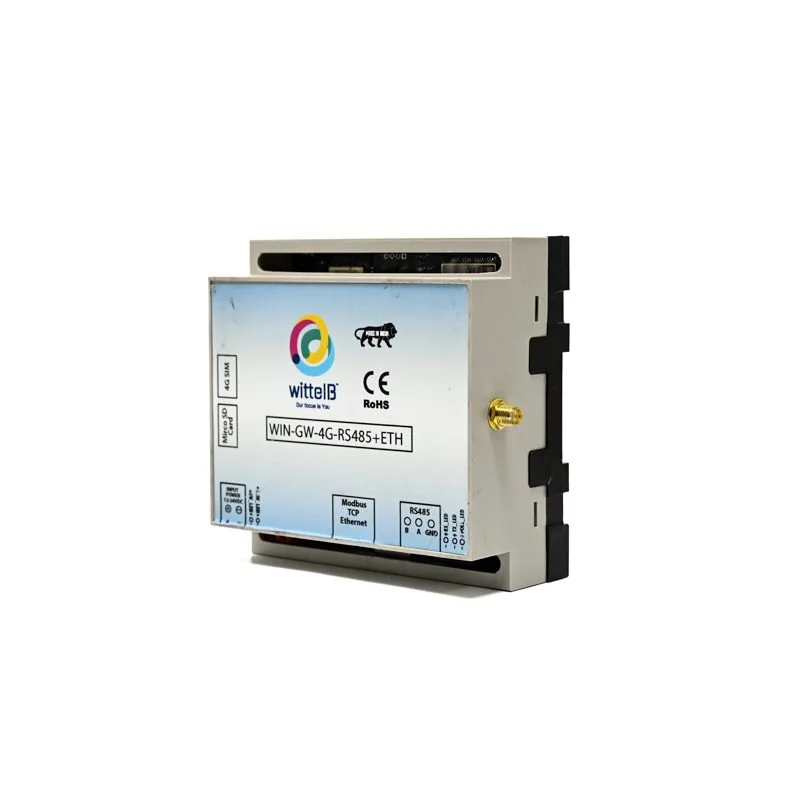

Wittelb WIN-GW 4G + RS485 + Ethernet IoT Gateway
The Wittelb WIN-GW is a 4G LTE to RS485 and Ethernet IoT gateway designed for industrial telemetry and remote monitoring. It supports MQTT cloud connectivity, Modbus RTU/TCP protocols, and includes a microSD slot for local data logging, powered by a 12V DC supply.
Features
- 4G LTE Cellular Backhaul: Provides reliable, high-speed internet connectivity in remote or mobile industrial sites where wired networks are unavailable.
- Industrial Serial & Ethernet Ports: Features a Modbus RS485 port and an Ethernet interface for connecting to PLCs, sensors, and local network equipment.
- MQTT Cloud Protocol Support: Enables seamless, bidirectional data transfer to cloud platforms like AWS IoT, Azure IoT Hub, or private MQTT brokers for centralized monitoring.
- Onboard Storage & Web UI: Includes a microSD card slot for data buffering and an intuitive web-based configuration interface for easy setup and management.
Out of stock
The Wittelb WIN-GW is a robust industrial IoT gateway engineered to bridge legacy serial devices and modern cloud infrastructure. It integrates a 4G LTE modem for primary WAN connectivity, ensuring operational continuity in field deployments. The gateway translates Modbus RTU data from connected RS485 sensors and controllers into TCP/IP packets, which can be routed locally via Ethernet or transmitted to the cloud using the lightweight MQTT protocol.
Built for 24/7 operation in challenging environments, the device supports a wide 12V DC input range (15-40VDC) and operates within a 0–60°C temperature range. Its integrated web server provides a configuration portal for setting APN details, MQTT broker parameters, and Modbus register mappings, eliminating the need for proprietary software. This makes it an ideal drop-in solution for upgrading existing SCADA, telemetry, and asset monitoring systems to cellular and cloud-based architectures.
Additional Information
| Weight | 0.177 kg |
|---|---|
| Dimensions | 11 × 11 × 6 cm |
