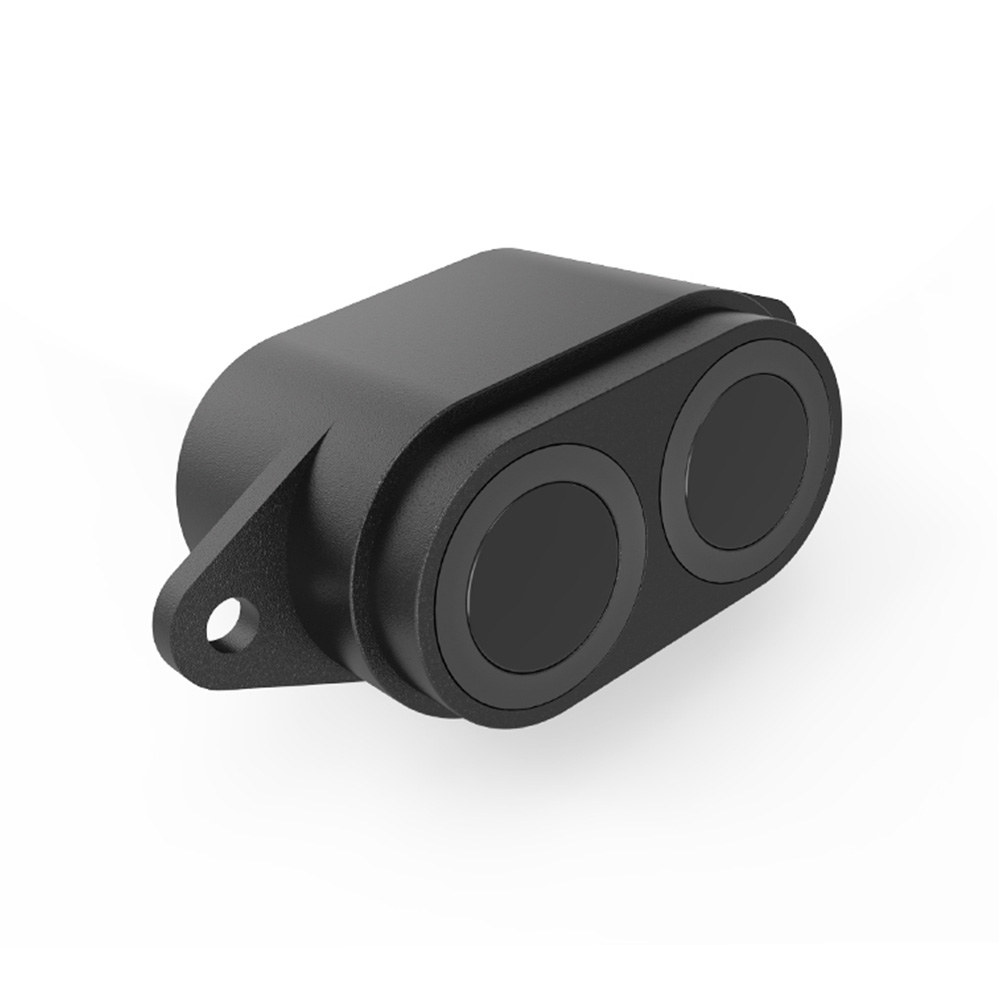

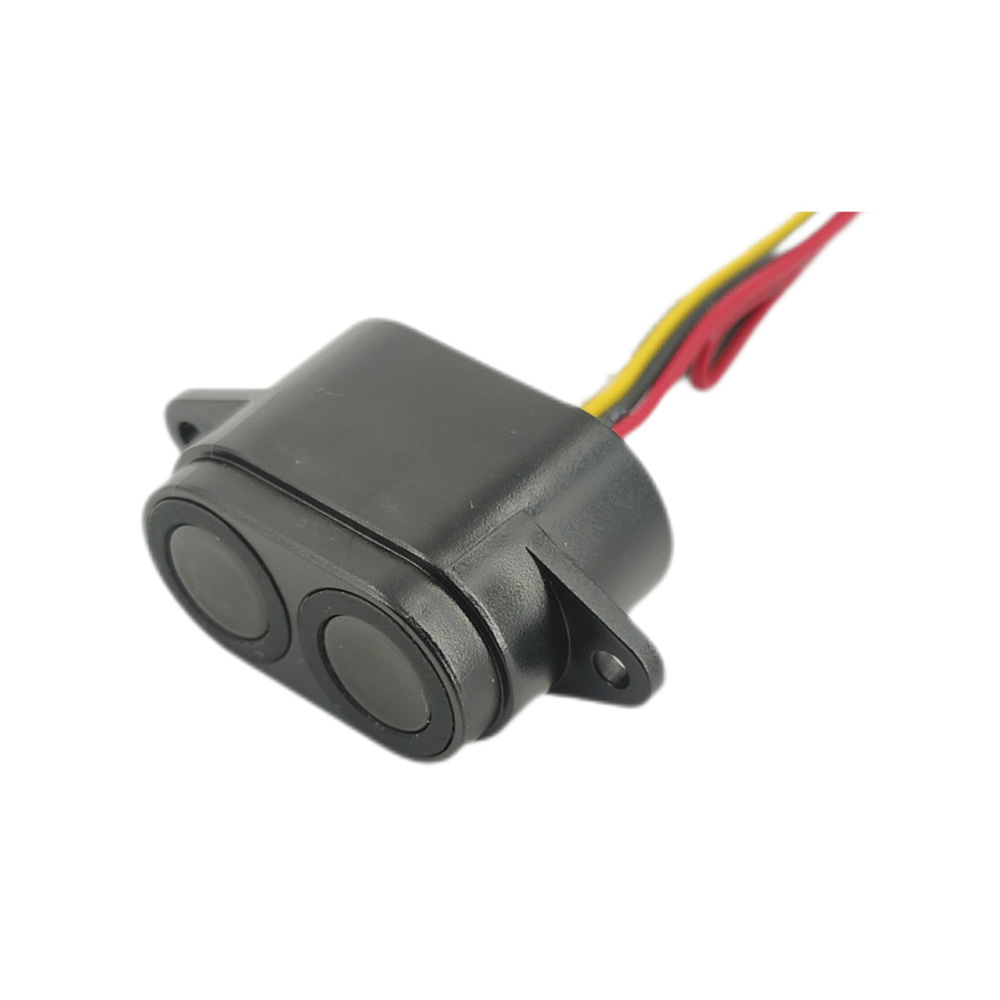

DYP-A22YYMW-V1.0 PWM Ultrasonic Obstacle Avoidance Sensor Module (2-300cm Range)
The DYP-A22YYMW-V1.0 is a compact, high-performance ultrasonic ranging module offering a 2cm to 300cm detection range with PWM output. Designed for robust operation from 3.3V to 12V, it integrates seamlessly with microcontrollers like Arduino, Raspberry Pi, and ESP32 for robotics and automation projects.
Features
- Wide 2cm to 300cm (2m to 3M) ultrasonic ranging capability with a minimal blind spot ≤2cm.
- Flexible 3.3V to 12V DC supply voltage compatible with 3.3V and 5V logic systems.
- PWM (Pulse Width Modulation) output for direct distance measurement with high accuracy: 1% + (S × 0.3%).
- High environmental durability with dust and waterproof rating, operating from -25°C to +65°C.
- Low average operating current ≤9mA and intelligent acoustic filtering to reduce co-frequency interference.
Out of stock
The DYP-A22YYMW-V1.0 ultrasonic sensor module employs advanced acoustic processing technology to deliver stable and reliable distance measurements in complex environments. Its design specifically addresses common issues in robotic control, such as large blind spots, wide measurement angles, and slow response times, providing a compact, adaptable solution with a narrow detection beam.
Engineered for high reliability, the module features robust electrostatic protection and operates across an extended temperature range. The integrated signal conditioning outputs a clean PWM signal proportional to the measured distance, simplifying integration into feedback control loops for obstacle avoidance, positioning, and automated systems.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 2 × 4.5 × 1.5 cm |
