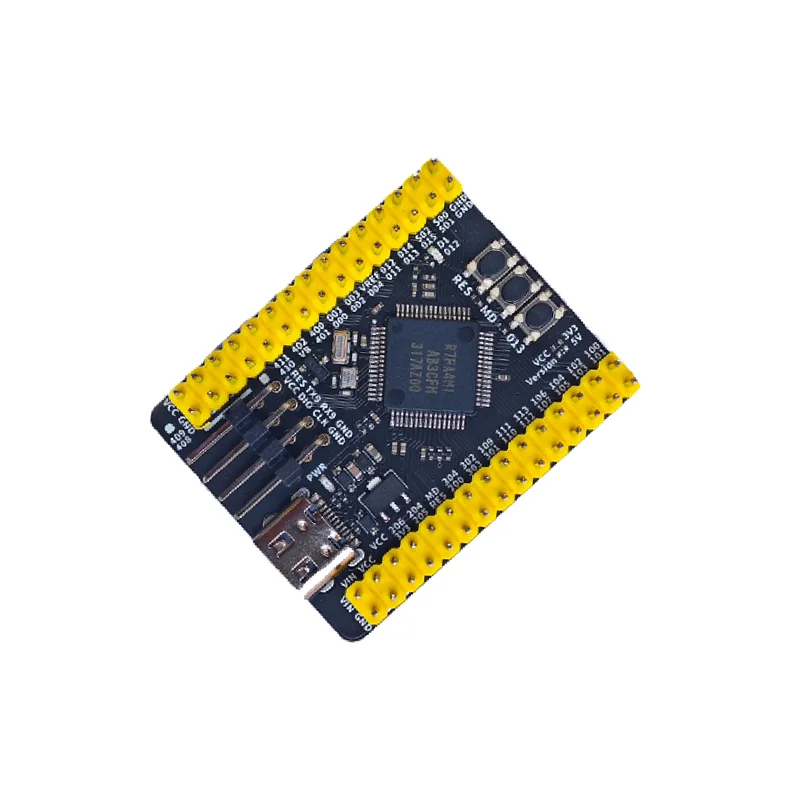

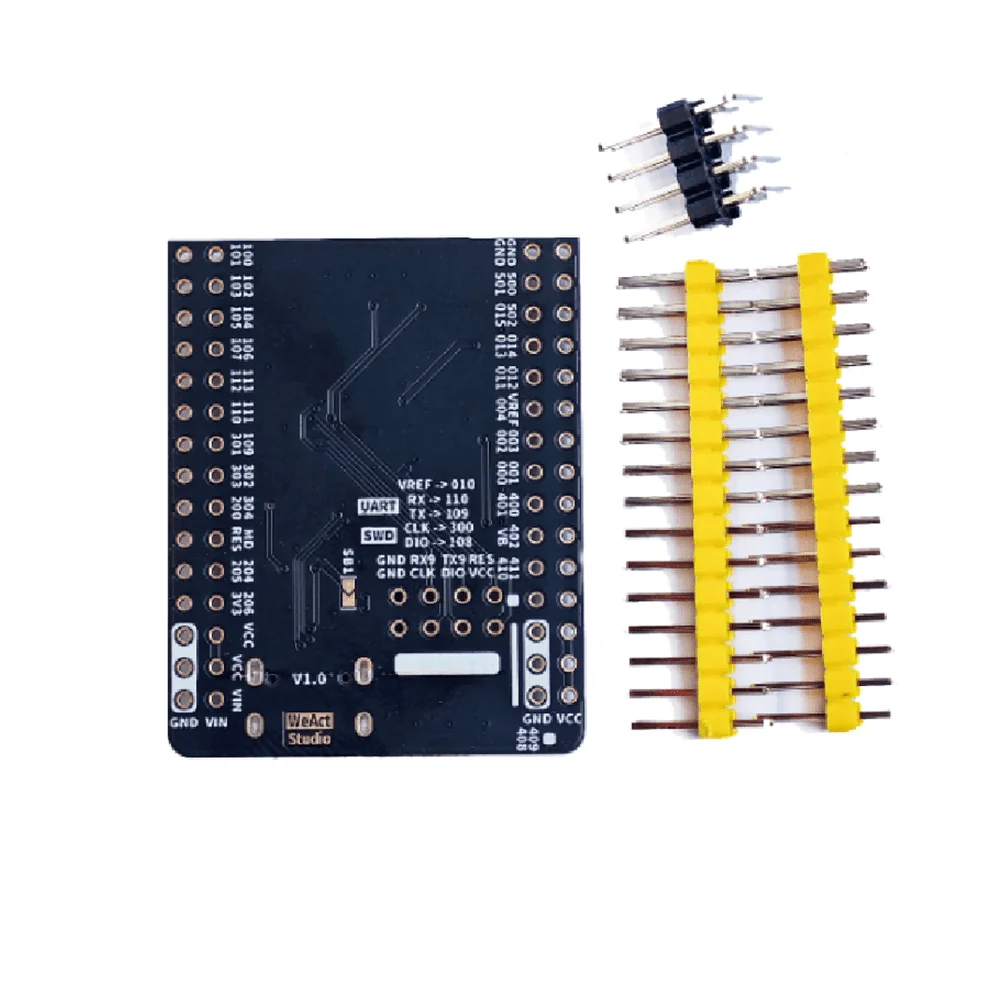

WeAct Studio RA4M1 Renesas R7FA4M1AB3CFM Core Demo Board
The WeAct Studio RA4M1 Core Demo Board features the Renesas R7FA4M1AB3CFM microcontroller, built around a 48MHz Arm Cortex-M4 core with 256KB Flash and extensive analog and communication peripherals, ideal for advanced HMI and embedded system prototyping.
Features
- 48MHz Arm Cortex-M4 core delivers efficient processing for complex control algorithms and user interfaces.
- 256KB Code Flash and 32KB total SRAM (16KB Parity + 16KB ECC) provide ample memory for application code and data.
- Integrated HMI features include a segment LCD controller and a 27-channel capacitive touch sensing unit for modern interface designs.
- Comprehensive analog suite: 25-channel 14-bit ADC, 12-bit DAC, 4-channel op-amp, and low-power comparators.
- Supported by Renesas Flexible Software Package (FSP) for streamlined development in professional embedded environments.
Out of stock
This development board showcases the capabilities of the Renesas RA4M1 microcontroller, designed for demanding embedded applications requiring robust processing, rich human-machine interfaces, and secure connectivity. The MCU’s 48MHz Cortex-M4 core balances performance with power efficiency, while its integrated segment LCD controller and capacitive touch unit enable the creation of sophisticated displays and control panels without external components.
The board provides full access to the microcontroller’s extensive peripheral set, including high-resolution analog converters, multiple timer blocks for motor control or PWM generation, and a full suite of serial communication interfaces like USB 2.0 Full-Speed, CAN, SPI, I2C, and UART (SCI). Security features such as AES hardware acceleration and a True Random Number Generator (TRNG) are built-in, making it suitable for applications requiring data protection and secure boot.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 8 × 2 cm |
