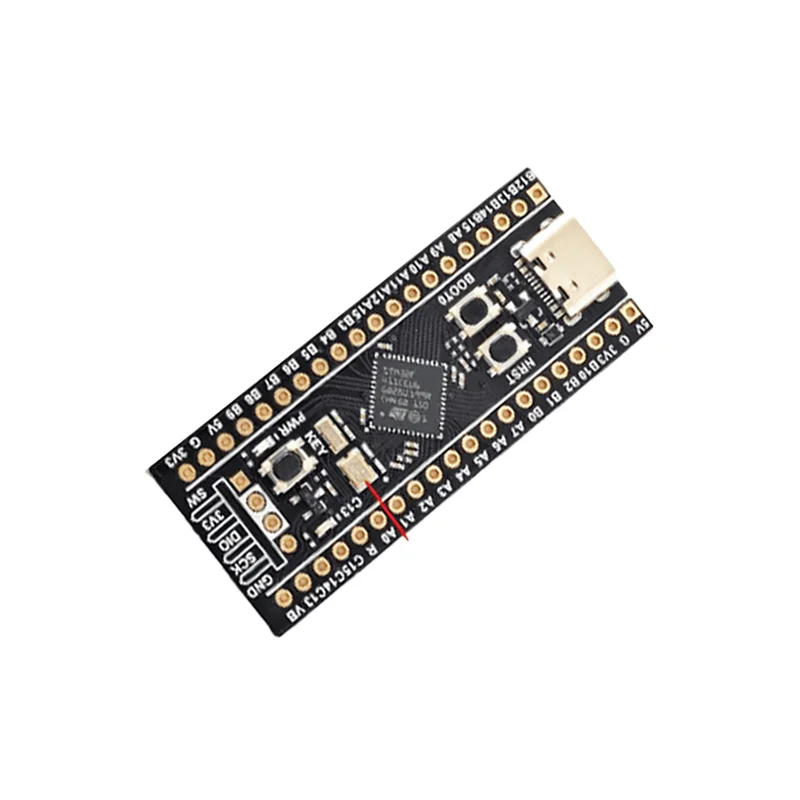

WeAct Studio BlackPill STM32F411CEU6 F411 25MHz HSE Core Board

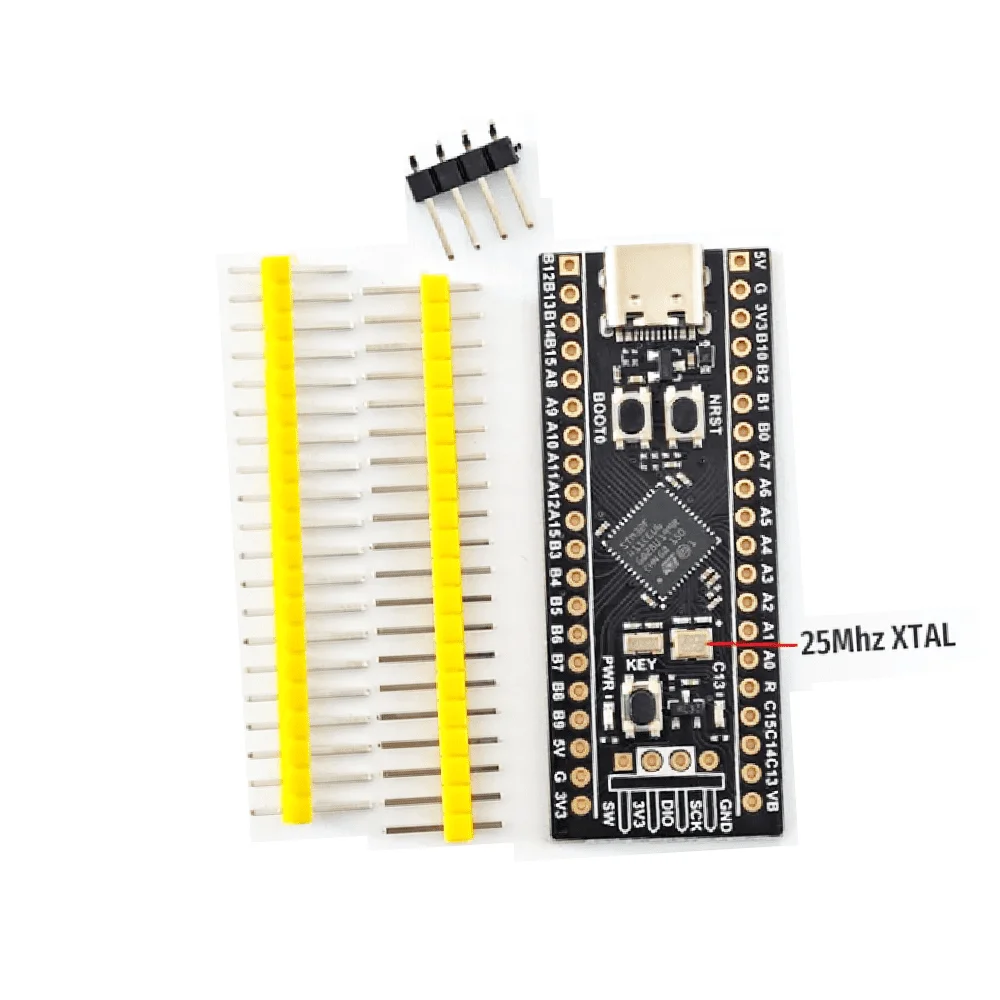

WeAct Studio BlackPill STM32F411CEU6 F411 25MHz HSE Core Board - Image 2

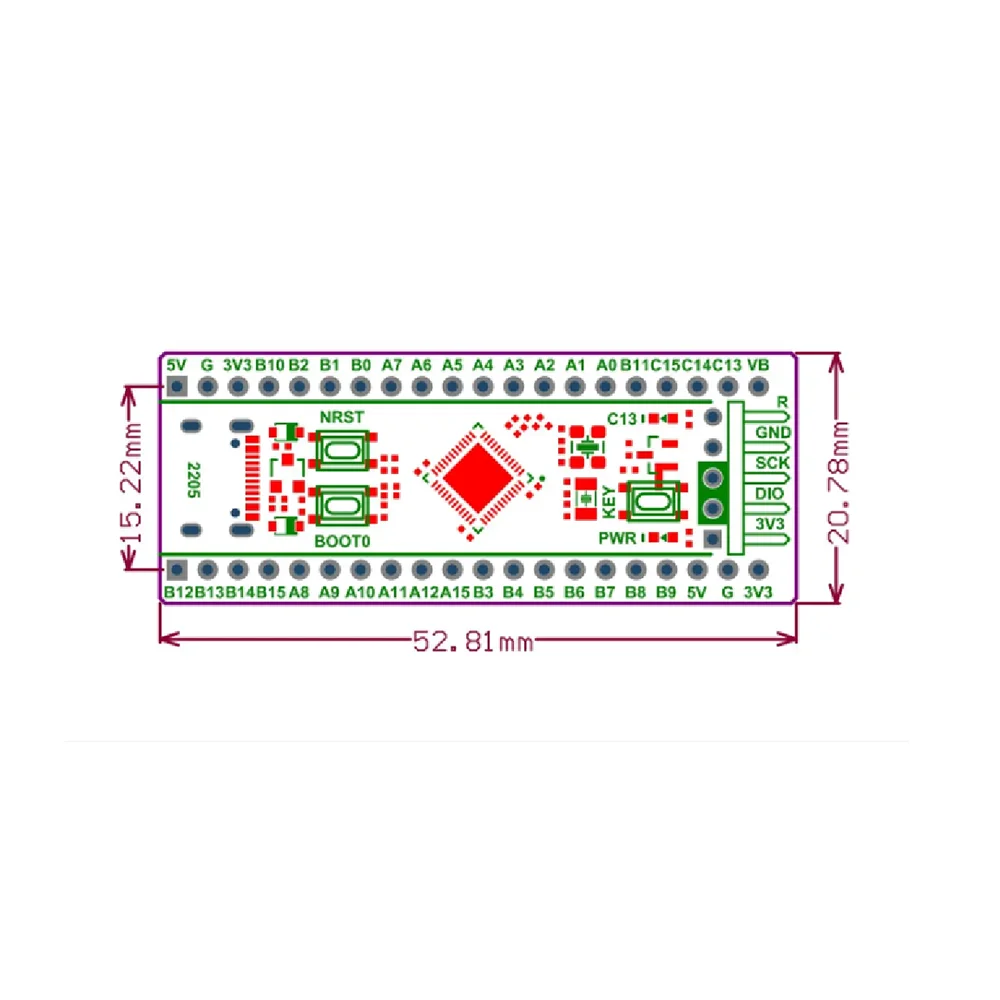

WeAct Studio BlackPill STM32F411CEU6 F411 25MHz HSE Core Board - Image 3
SKU: IOWC-1283
📋 GST Invoice Available

WeAct Studio BlackPill STM32F411CEU6 F411 25MHz HSE Core Board

₹599.00 (Inclusive of all taxes)
Out of Stock

The WeAct Studio BlackPill is a compact STM32F411CEU6 development board featuring a 100MHz ARM Cortex-M4 core, 512KB Flash, and 128KB SRAM, designed for embedded systems prototyping with MicroPython and C programming via USB-C connectivity.

Features

  • High-performance STM32F411CEU6 MCU with ARM Cortex-M4 core running at 100MHz for demanding embedded applications.
  • Generous 512KB Flash and 128KB SRAM memory for complex program logic and data buffering.
  • Includes 25MHz high-speed and 32.768kHz low-speed external crystal oscillators for precise timing and RTC functions.
  • USB Type-C interface provides robust power delivery and high-speed programming/debugging connectivity.
  • Gold-plated PCB with lead-free soldering ensures long-term reliability and excellent signal integrity for professional projects.

Out of stock

Description

The WeAct Studio BlackPill STM32F411CEU6 development board delivers a powerful, ARM Cortex-M4 based microcontroller platform optimized for embedded developers and makers. Its 100MHz processing speed, combined with substantial 512KB Flash and 128KB SRAM, handles complex algorithms, sensor data processing, and real-time control tasks efficiently.

Engineered for durability, the board utilizes a gold-sink PCB and lead-free manufacturing process, enhancing signal integrity and long-term reliability in varied environments. The integrated 25MHz HSE and 32.768kHz LSE crystals support accurate timing peripherals and low-power Real-Time Clock (RTC) operations, crucial for battery-powered IoT nodes.

With a user-friendly layout featuring reset/boot keys, accessible GPIOs, and a modern USB-C port, the BlackPill simplifies firmware uploading via ST-Link or DFU bootloader and integrates seamlessly into prototypes. It is fully supported by STM32CubeIDE, Arduino Core, and MicroPython, offering a versatile foundation for motor control, digital signal processing, and custom embedded systems.

Key Features

  • ARM Cortex-M4 Core: 32-bit processor with DSP instructions and single-precision FPU for efficient mathematical computations.
  • Comprehensive Peripheral Set: Integrated ADC, DAC, I2C, SPI, I2S, multiple TIMs, and USARTs for extensive sensor and actuator interfacing.
  • Dual Crystal Design: 25MHz HSE for main clock and 32.768kHz LSE for low-power RTC and watchdog functions.
  • Robust Power Design: Stable 3.3V regulation from USB 5V input, supporting a wide range of external peripherals.
  • Developer-Friendly Interface: Dedicated user and reset buttons, boot0 selector, and exposed SWD debugging pins for easy programming.
  • Gold-Plated PCB: Enhances corrosion resistance and ensures reliable electrical connections over the product lifecycle.
  • Multi-Framework Support: Compatible with STM32Cube HAL/LL, Arduino IDE via STM32 core, and MicroPython for rapid prototyping.

Applications

  • Embedded systems prototyping and educational core learning platforms.
  • Motor control and robotics projects utilizing PWM and encoder interfaces.
  • Digital audio processing and synthesis with I2S and DAC peripherals.
  • Data acquisition and sensor logging systems leveraging high-speed ADC.
  • Custom IoT device development with potential for adding wireless modules via serial ports.

Technical Specifications

Microcontroller / SoCSTM32F411CEU6 (ARM Cortex-M4)
Core Clock Speed100 MHz
Flash Memory512 KB
SRAM128 KB
High-Speed External (HSE) Crystal25 MHz
Low-Speed External (LSE) Crystal32.768 kHz
Programming/Debug InterfaceUSB Type-C (DFU), SWD (via exposed pins)
Operating Voltage3.3V (regulated from 5V USB input)
GPIO PinsMultiple accessible via edge headers
Key PeripheralsADC, DAC, I2C, SPI, I2S, USART, TIM, CRC
PCB FinishGold-plated (Immersion Gold)
Dimensions (approx.)53mm x 23mm (BlackPill form factor)

Frequently Asked Questions

How do I program the WeAct BlackPill STM32F411CEU6 board?

You can program the board using several methods. Connect via the USB-C port and use the built-in DFU bootloader with STM32CubeProgrammer. For debugging, connect an ST-Link V2 programmer to the exposed SWDIO and SWCLK pins. The board is also supported by the Arduino IDE with the STM32duino core and can run MicroPython firmware flashed via DFU. Ensure boot0 is set correctly for the desired mode.

What is the purpose of the two crystals on the board?

The 25MHz high-speed external (HSE) crystal provides the primary clock source for the microcontroller core and peripherals, enabling stable operation at 100MHz. The 32.768kHz low-speed external (LSE) crystal is dedicated to the Real-Time Clock (RTC) and low-power sleep modes, allowing for accurate timekeeping and wake-up events in battery-powered applications without consuming significant current.

Can I power the board externally without the USB connection?

Yes, you can supply power externally. The board includes a 3.3V voltage regulator. You can provide 5V power to the '5V' pin on the header or 3.3V directly to the '3V3' pin. Ensure the external supply is clean and within the specified voltage limits to avoid damaging the onboard regulator or the STM32 microcontroller. The USB port can be used simultaneously for communication.

Package Includes

  • 1 x WeAct Studio BlackPill STM32F411CEU6 Development Board

Additional Information

Weight 0.01 kg
Dimensions 8 × 6 × 2 cm
