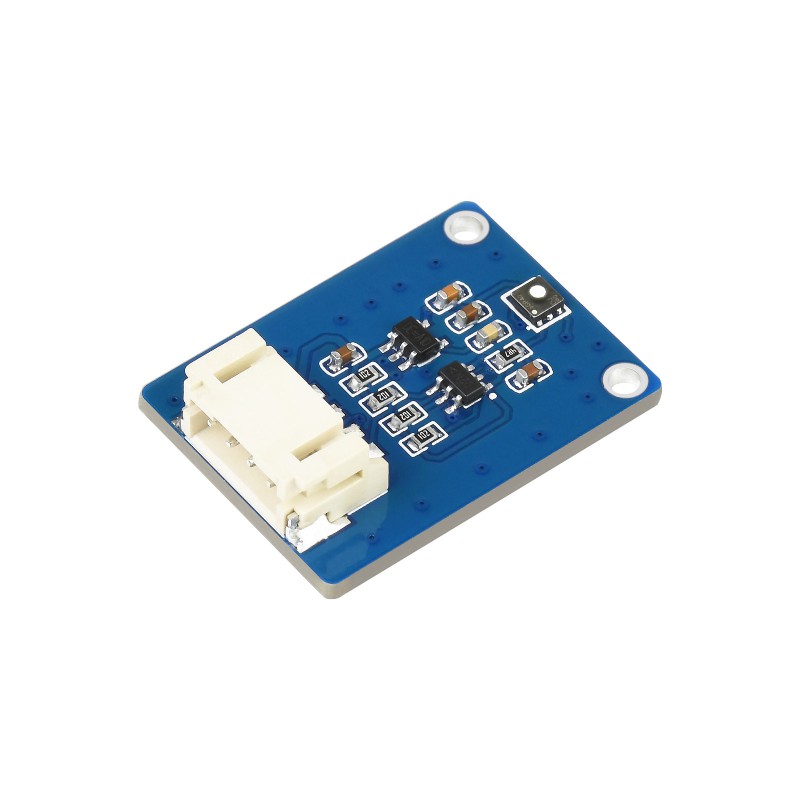

Waveshare SGP40 VOC Gas Sensor I2C Module
The Waveshare SGP40 VOC Gas Sensor Module integrates the Sensirion SGP40 digital VOC sensor for air quality monitoring via I2C communication. It features onboard voltage translation for seamless 3.3V or 5V system compatibility with microcontrollers like Arduino, Raspberry Pi, and STM32.
Features
- Sensirion SGP40 digital VOC sensor for ethanol-equivalent measurement (0–1000 ppm).
- Integrated humidity compensation for enhanced accuracy across varying environmental conditions.
- I2C digital output ensures stable, noise-resistant signal transmission.
- Onboard voltage translator supports both 3.3V and 5V logic levels for broad microcontroller compatibility.
- Compact form factor (20 x 27 mm) with 2mm mounting holes for easy integration into air treatment devices and monitors.
Out of stock
The Waveshare SGP40 module is a digital VOC (Volatile Organic Compounds) sensing solution based on Sensirion’s SGP40 metal-oxide (MOX) sensor. It employs a micro-hotplate structure for low-power operation and features integrated on-chip humidity and temperature compensation via a built-in SHT3x-A1 sensor, ensuring reliable VOC index readings independent of ambient conditions. The sensor outputs a digital VOC Index (VOC_Index) signal directly via the I2C interface.
Designed for integration into air quality monitoring systems, the module includes a level-shifting circuit, making it plug-and-play compatible with 3.3V and 5V logic families common in development platforms like Arduino, ESP32, Raspberry Pi, and STM32. Its compact PCB and low thermal footprint allow for deployment in confined spaces within air purifiers, smart HVAC systems, and indoor environmental monitors.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.7 × 2 cm |
