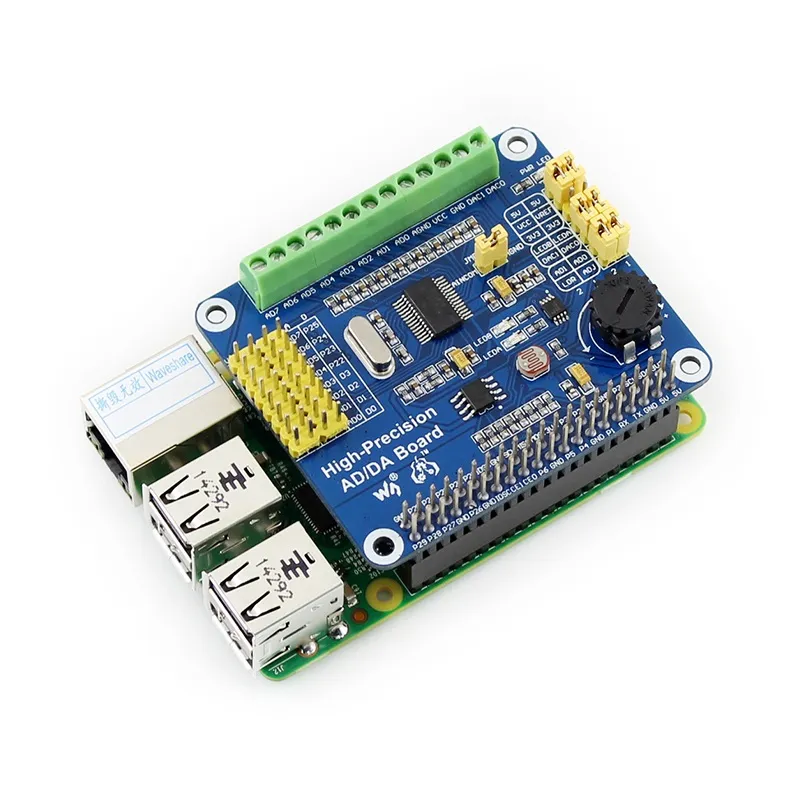

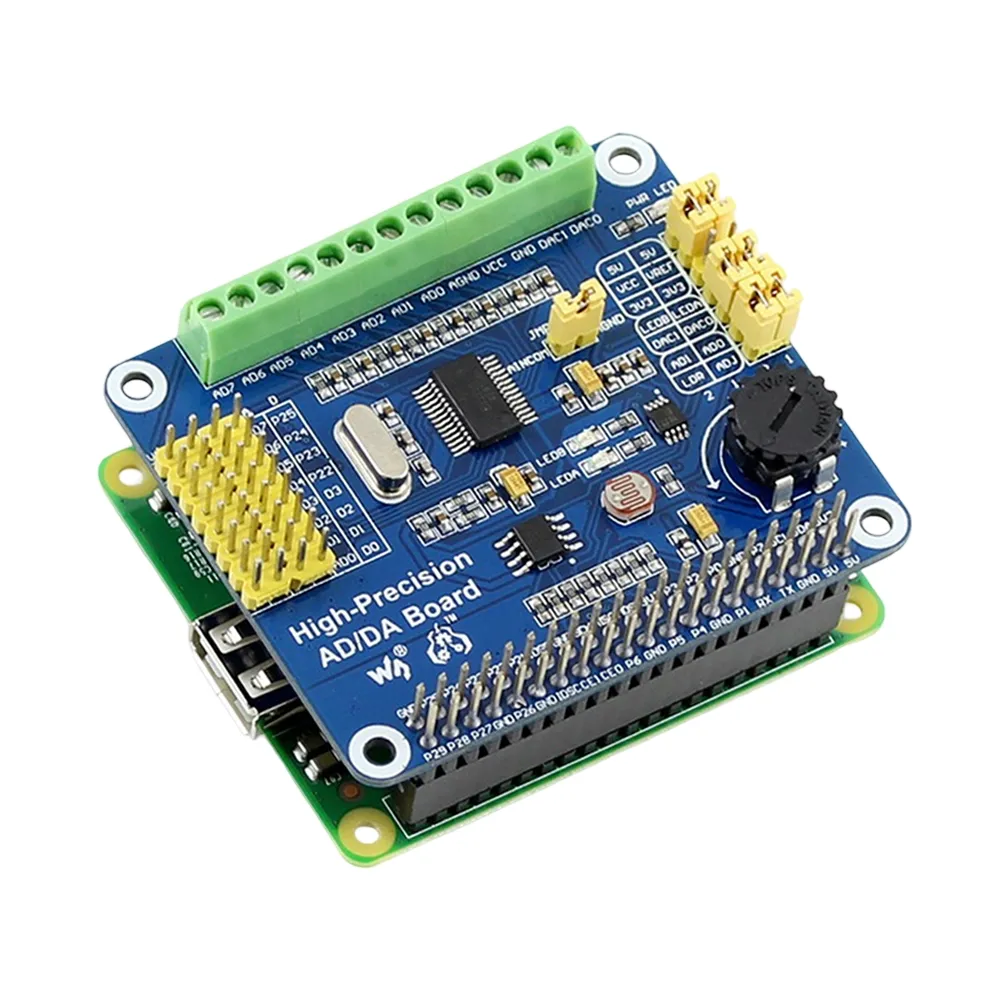

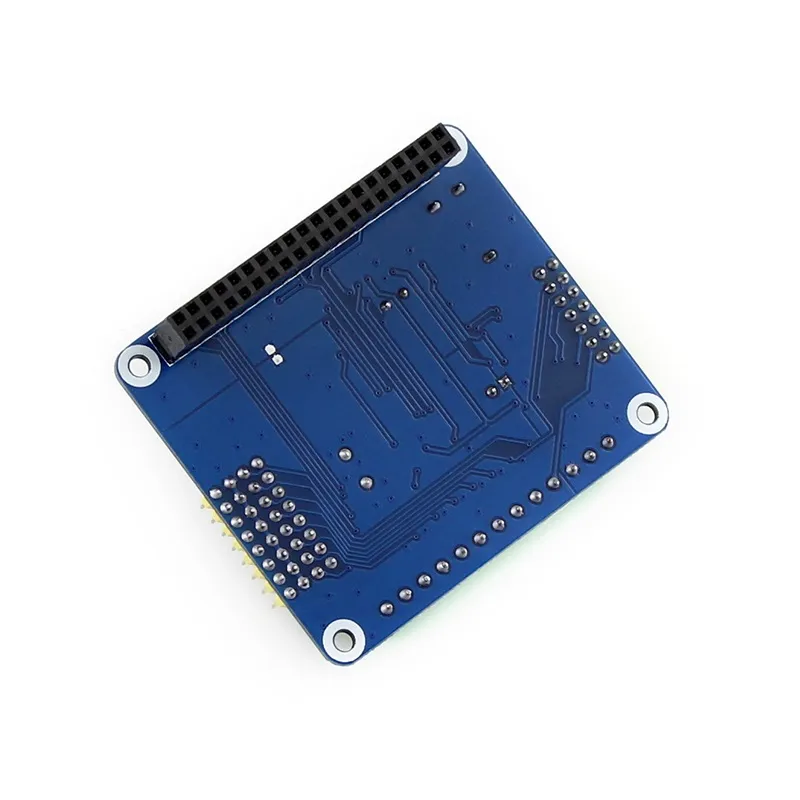

Waveshare Raspberry Pi High-Precision AD/DA Board
Expand your Raspberry Pi’s capabilities with the Waveshare High-Precision AD/DA Expansion Board, featuring an 8-channel, 24-bit ADS1256 ADC and a 2-channel, 16-bit DAC8552, ideal for advanced data acquisition and control applications.
Features
- Integrates 8-channel 24-bit ADS1256 ADC with up to 30ksps sampling rate.
- Features 2-channel 16-bit DAC8552 for high-resolution analog output.
- Standard Raspberry Pi 40PIN GPIO header for broad compatibility.
- Supports Raspberry Pi series boards and Jetson Nano.
- Provides both screw terminals and pin headers for versatile analog input connections.
Out of stock
The Waveshare High-Precision AD/DA Expansion Board addresses the lack of integrated analog-to-digital and digital-to-analog conversion capabilities on the Raspberry Pi’s GPIO interface. This robust expansion board equips your Raspberry Pi with a powerful 24-bit ADS1256 ADC, offering 8 channels (including 4 differential inputs) with an impressive 30ksps sampling rate, alongside a 16-bit DAC8552 providing 2 channels of high-resolution analog output.

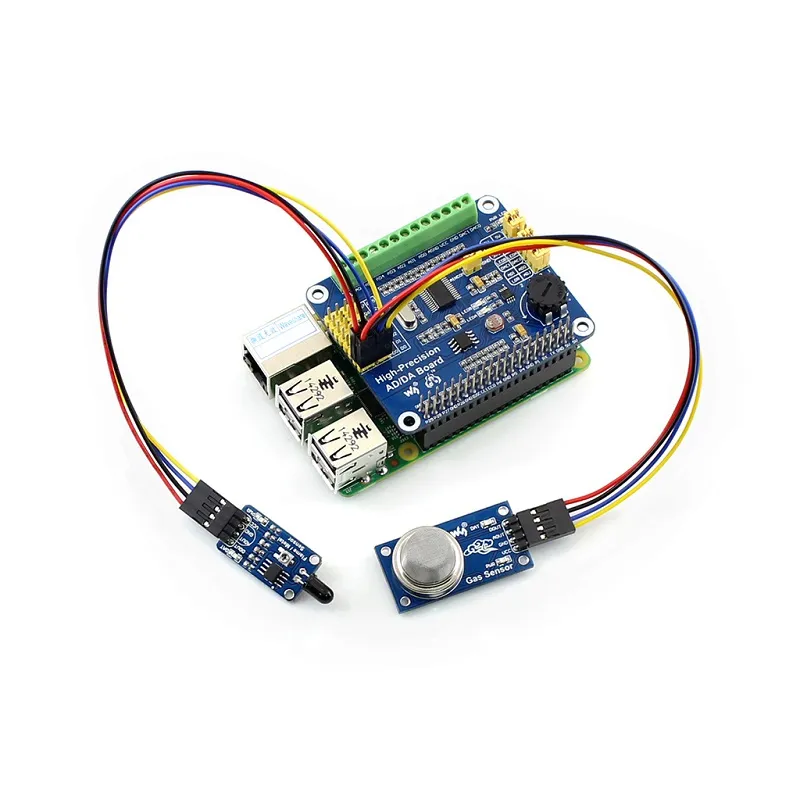

Designed for engineers and makers, the board features a standard Raspberry Pi 40PIN GPIO extension header, ensuring wide compatibility with various Raspberry Pi models and the Jetson Nano. It includes screw terminals and pin headers for flexible analog signal input, with the pinout aligning with the Waveshare sensor interface standard for easy integration of analog sensor modules. Onboard components like a 7.68M crystal, LM285-2.5 reference voltage, and test jumpers facilitate reliable and straightforward signal demonstration and development.
Additional Information
| Weight | 0.032 kg |
|---|---|
| Dimensions | 6.5 × 5.62 cm |
