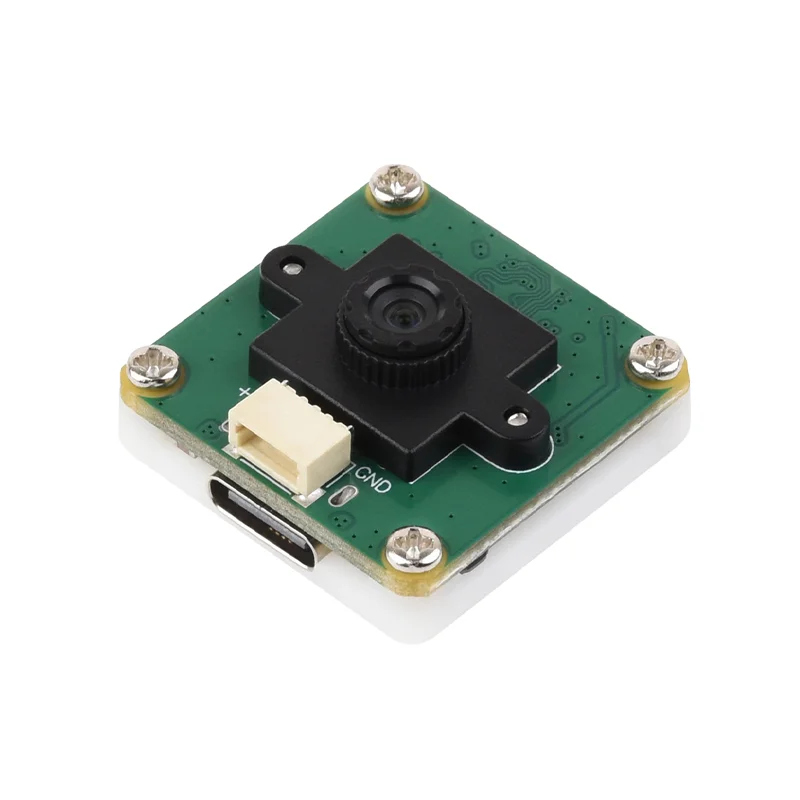

Waveshare OV9281 1MP Mono USB Camera (A) w/ Global Shutter

The camera is compatible with standard USB Video Class (UVC) drivers, making it plug-and-play with most operating systems. You can use it with OpenCV, ROS (Robot Operating System), MATLAB, or standard webcam software on Windows, Linux, and Raspberry Pi OS. For AI applications, it integrates seamlessly with frameworks like TensorFlow Lite and PyTorch on NVIDIA Jetson platforms using its MJPG or YUY2 video streams.

Yes, the camera features a standard M12 lens mount thread. You can unscrew the default 1.65mm F2.2 lens and replace it with other M12-mount lenses to change the focal length, field of view, or aperture. This is useful for applications requiring telephoto, macro, or different low-light performance. Ensure any replacement lens is compatible with the sensor's 1/4-inch format and provides proper focusing.

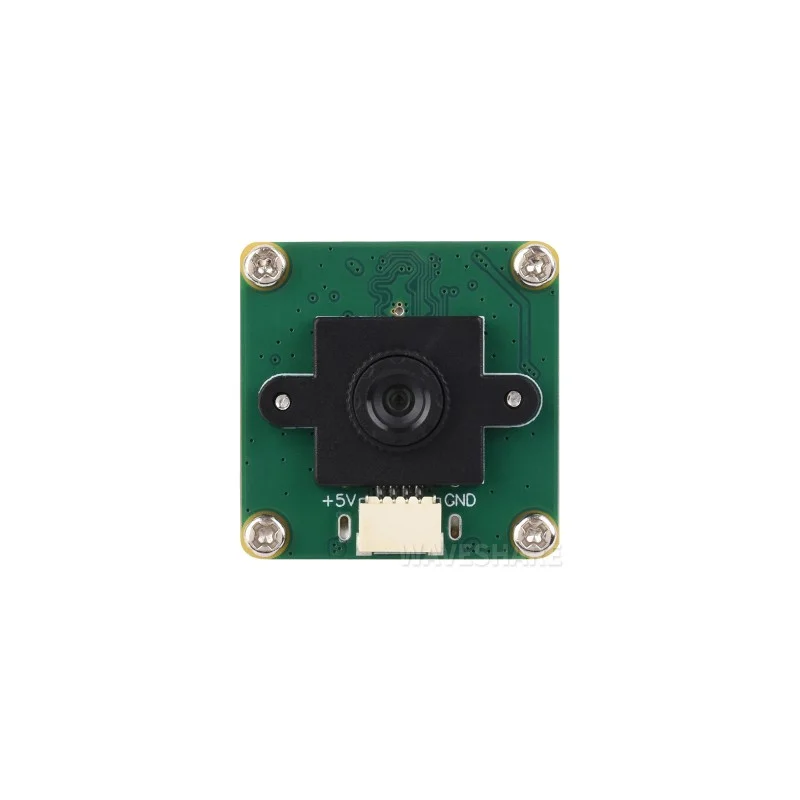

The 4-pin SH1.0 connector provides an alternative integration path for custom embedded systems. You will need to supply 5V DC power to the appropriate pins (refer to the pinout diagram) and handle the USB D+ and D- differential data lines directly. This typically requires a USB PHY or direct connection to a microcontroller with USB host capability. The included cable facilitates this connection to compatible carrier boards or custom PCBs.

A global shutter exposes all pixels of the sensor simultaneously, capturing an instantaneous snapshot of a scene. This eliminates the skew, wobble, and partial exposure artifacts (rolling shutter effect) common when imaging fast-moving objects or when the camera itself is in motion. If your application involves high-speed robotics, industrial inspection on a moving conveyor, or drone vision, the global shutter is essential for accurate, blur-free image capture and precise machine vision analysis.
