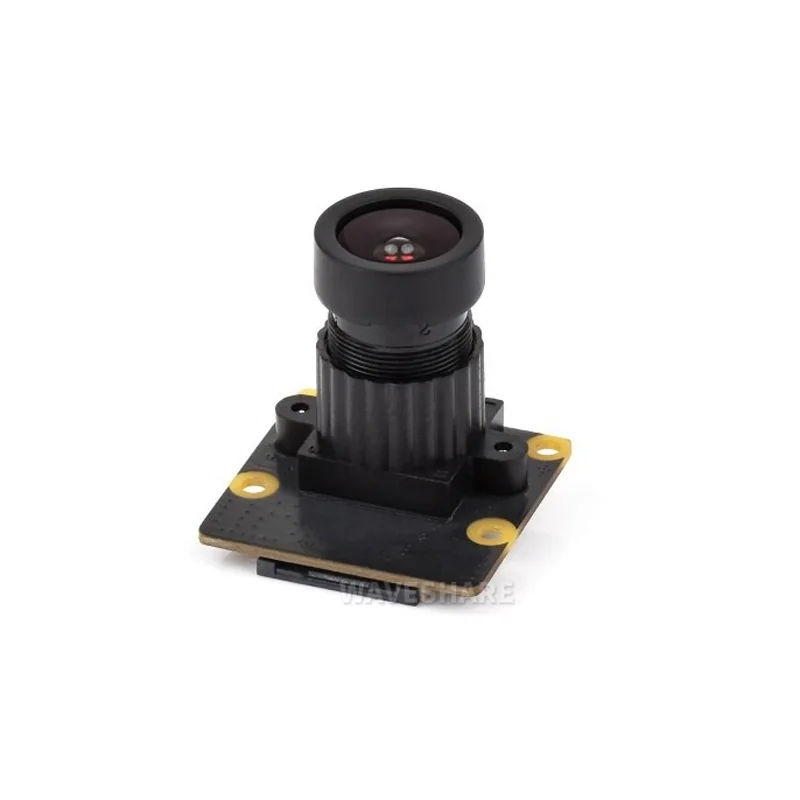

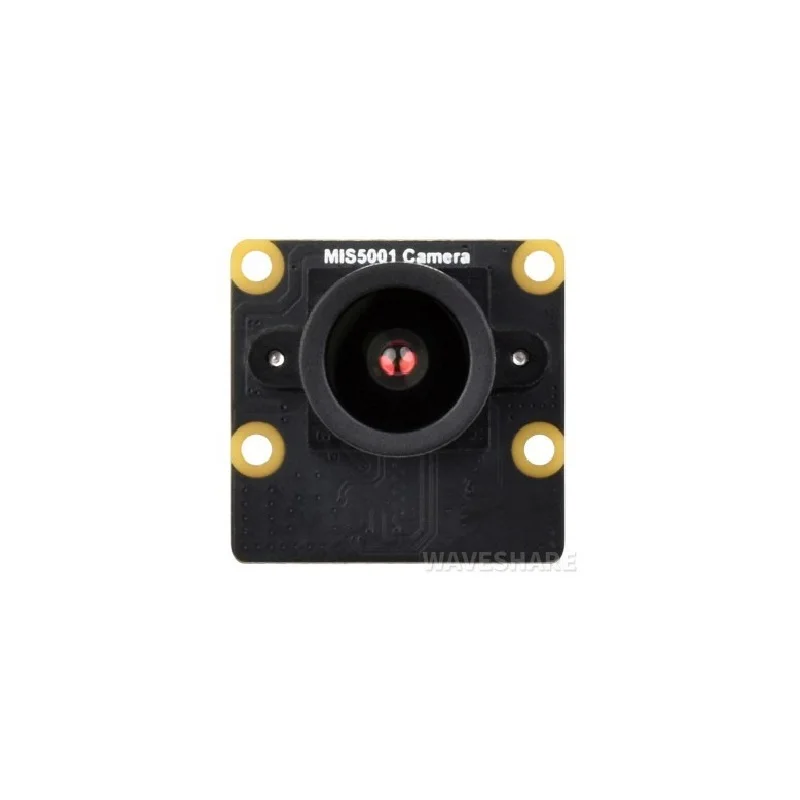

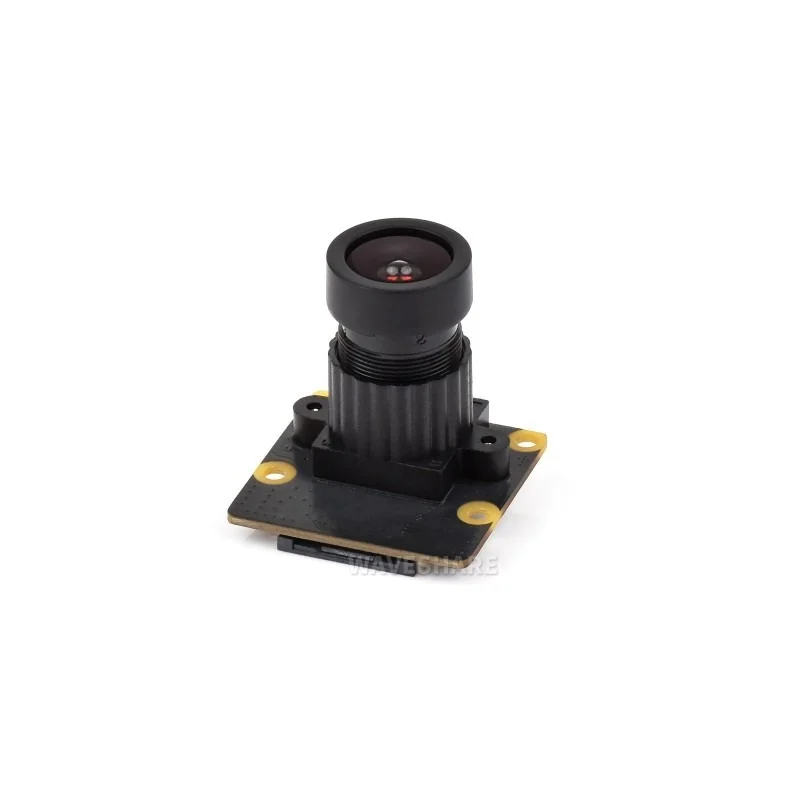

Waveshare MIS5001 5MP Wide-Angle Lens Camera Module for RV1106 Luckfox Pico
The Waveshare MIS5001 5MP Wide-Angle Lens Camera Module is a high-sensitivity embedded vision sensor designed for the RV1106-based Luckfox Pico series. It provides detailed 2592 x 1944 resolution imaging via a 2-lane MIPI CSI-2 interface, ideal for robotics, AI edge vision, and low-light applications.
Features
- 5MP MIS5001 CMOS sensor delivers 2592 x 1944 resolution with high sensitivity and low noise for clear imaging.
- Wide-angle lens with 4.15mm focal length, F1.6 aperture, and ~93° field of view for broad scene capture.
- 2-lane MIPI CSI-2 interface ensures high-speed data transfer to RV1106 hosts like Luckfox Pico Pro/Max/Ultra.
- Low dark current sensor design minimizes noise, preserving image fidelity in challenging lighting conditions.

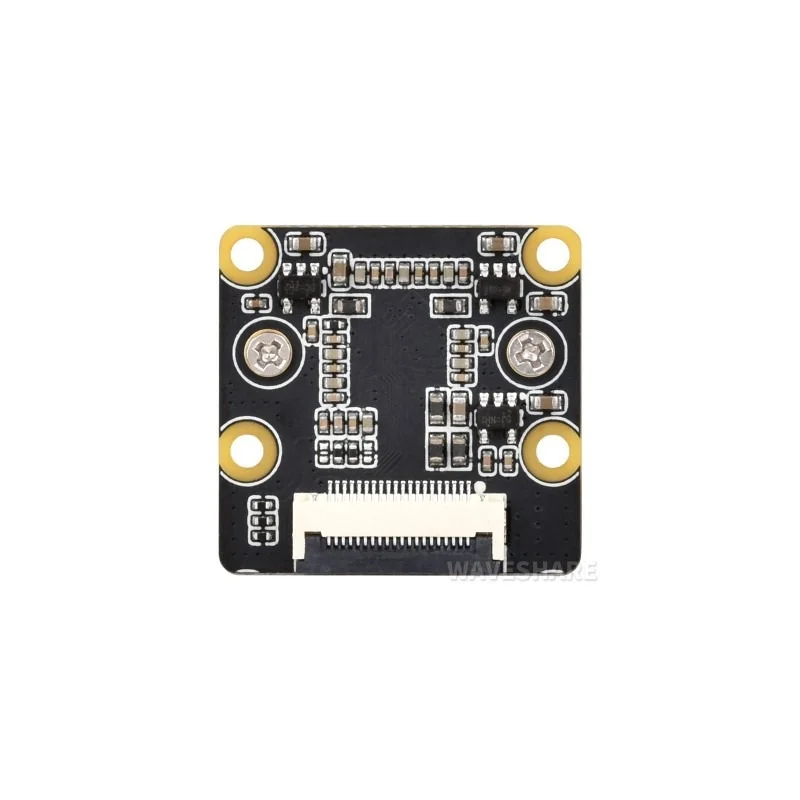

- Compact form factor with standard 20-pin FFC connector for easy integration into embedded vision and robotics projects.
Out of stock
The Waveshare MIS5001 5MP Camera Module is an embedded imaging solution engineered for performance-critical vision applications. Its core component is the MIS5001 CMOS sensor, featuring a 1/2.7″ optical format and a rolling shutter architecture that supports high frame rates for dynamic scene capture. The module’s high sensitivity and optimized pixel design enable it to deliver detailed, low-noise color images even in low-light environments, making it suitable for 24/7 monitoring and edge AI inference.
Integration is streamlined through a 2-lane MIPI CSI-2 serial interface, providing efficient, high-bandwidth data transfer directly to RV1106-based host processors like the Luckfox Pico series. The included wide-angle lens variant offers a 4.15mm focal length with an F1.6 aperture, balancing light intake with a distortion-corrected, approximately 93-degree horizontal field of view. This combination of sensor performance and optical design makes the module a versatile choice for developers building compact vision systems for robotics, machine vision, and smart IoT devices.
Additional Information
| Weight | 0.019 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
