Description

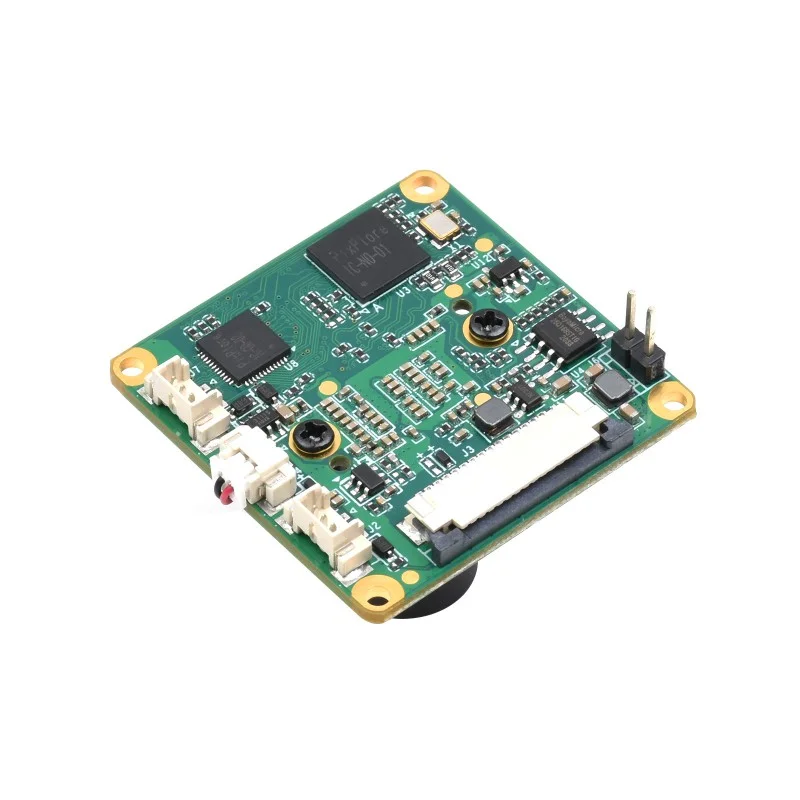

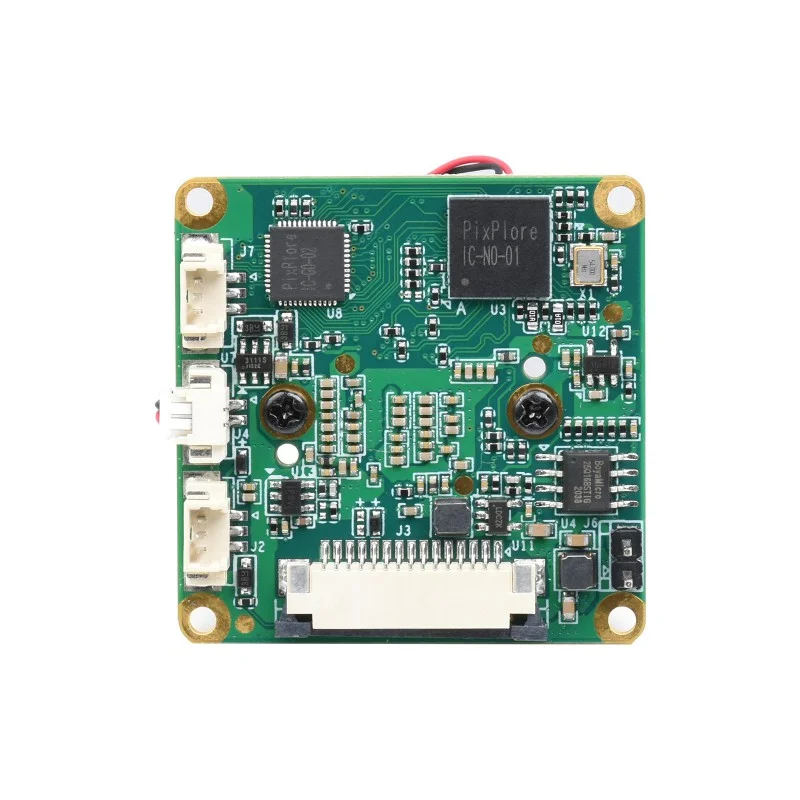

The Waveshare IMX462-127 camera module is engineered for developers and integrators requiring reliable, high-quality vision in low-light IoT and embedded applications. Its core is the Sony IMX462 starlight sensor, which utilizes back-illuminated pixel technology to achieve high sensitivity and detailed imaging across both visible and near-infrared spectra. The onboard ISP (Image Signal Processor) handles critical tasks like noise reduction and color correction, delivering a cleaner video stream directly to the host processor.

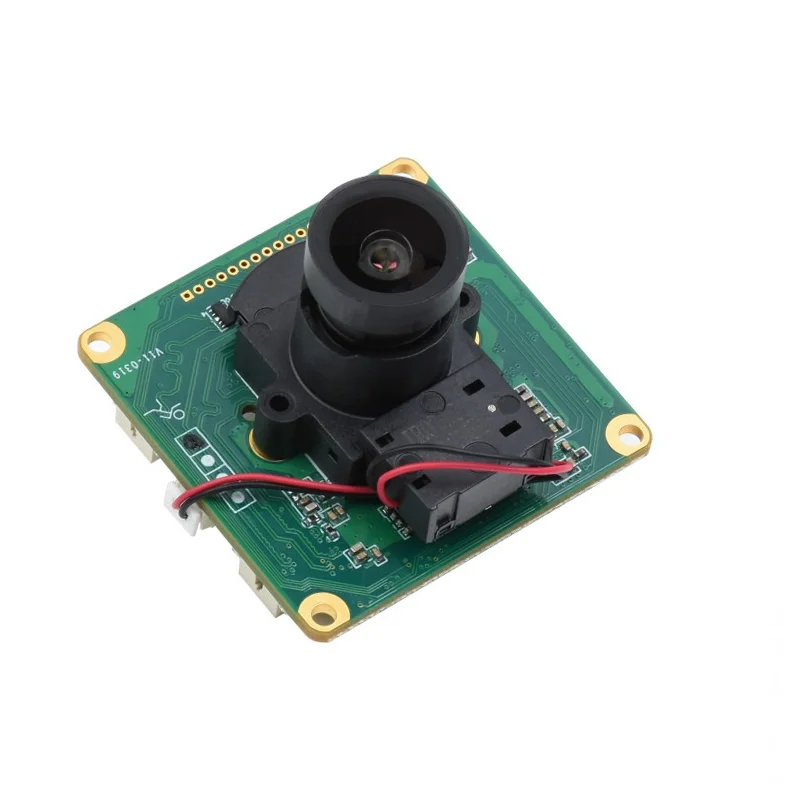

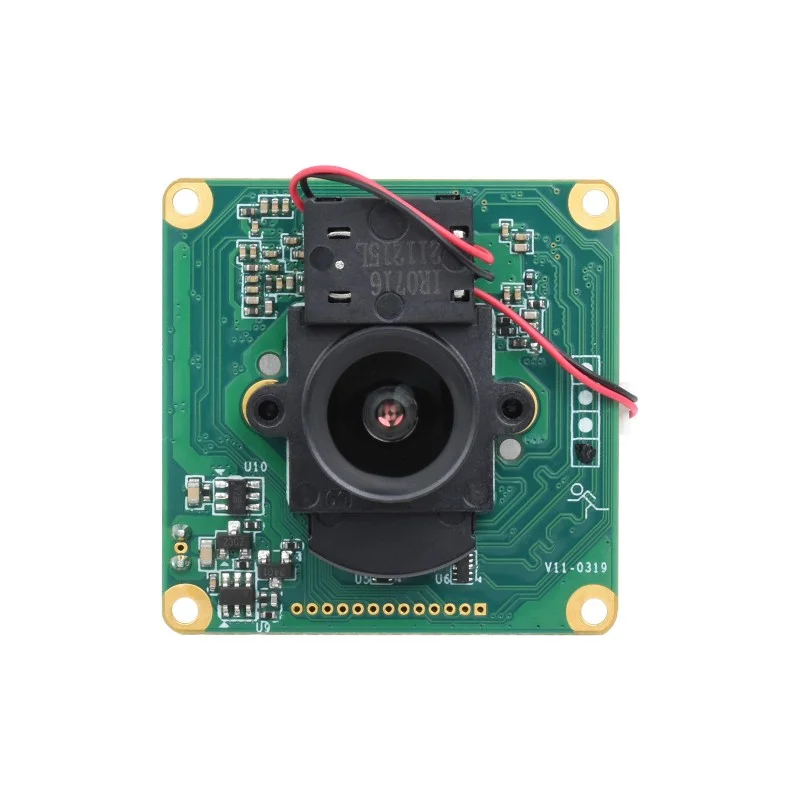

Designed for seamless integration, the module operates at 3.3V and connects via a standard flat flex cable (FFC) interface. The fixed-focus lens assembly, with an F1.61 aperture and 3.18mm focal length, is calibrated for a balanced depth of field, making it suitable for applications where manual focus adjustment is impractical. The inclusion of an IR-CUT filter mechanically switches to block infrared light during the day for natural colors and opens at night to allow full sensor sensitivity, enabling true 24/7 surveillance capability.
