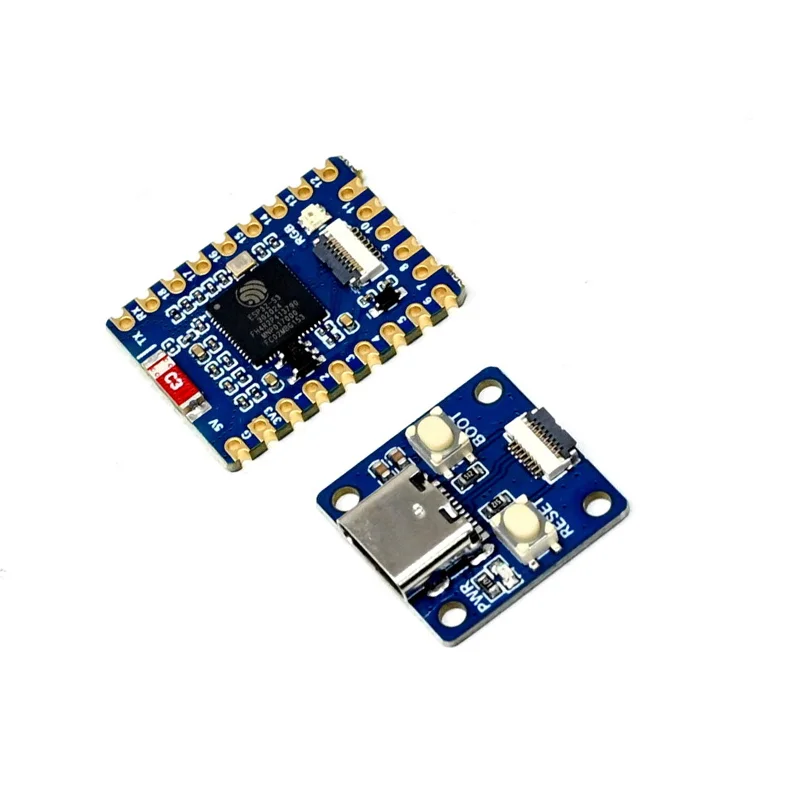

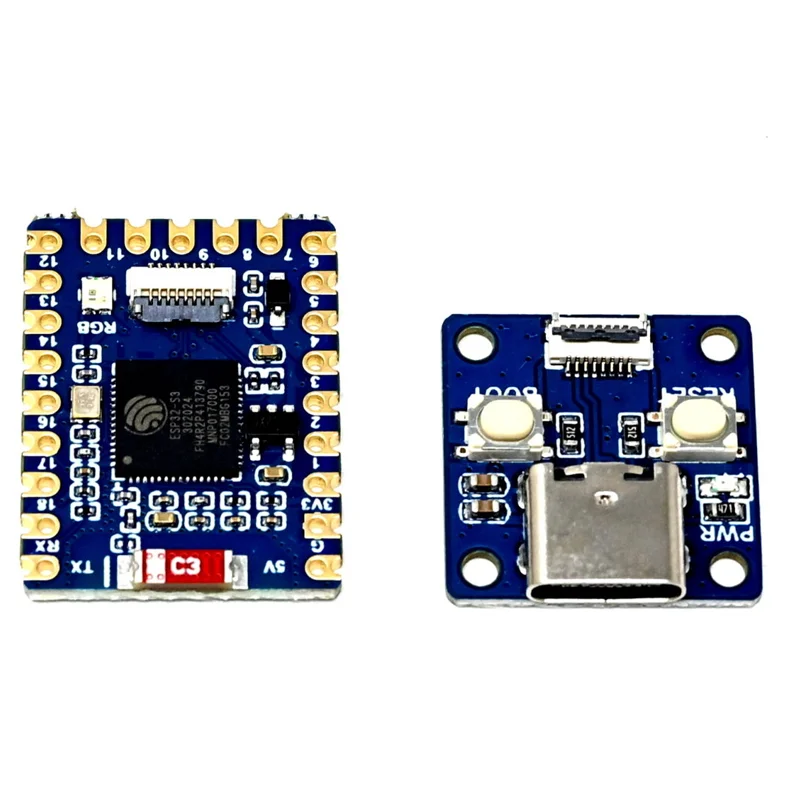

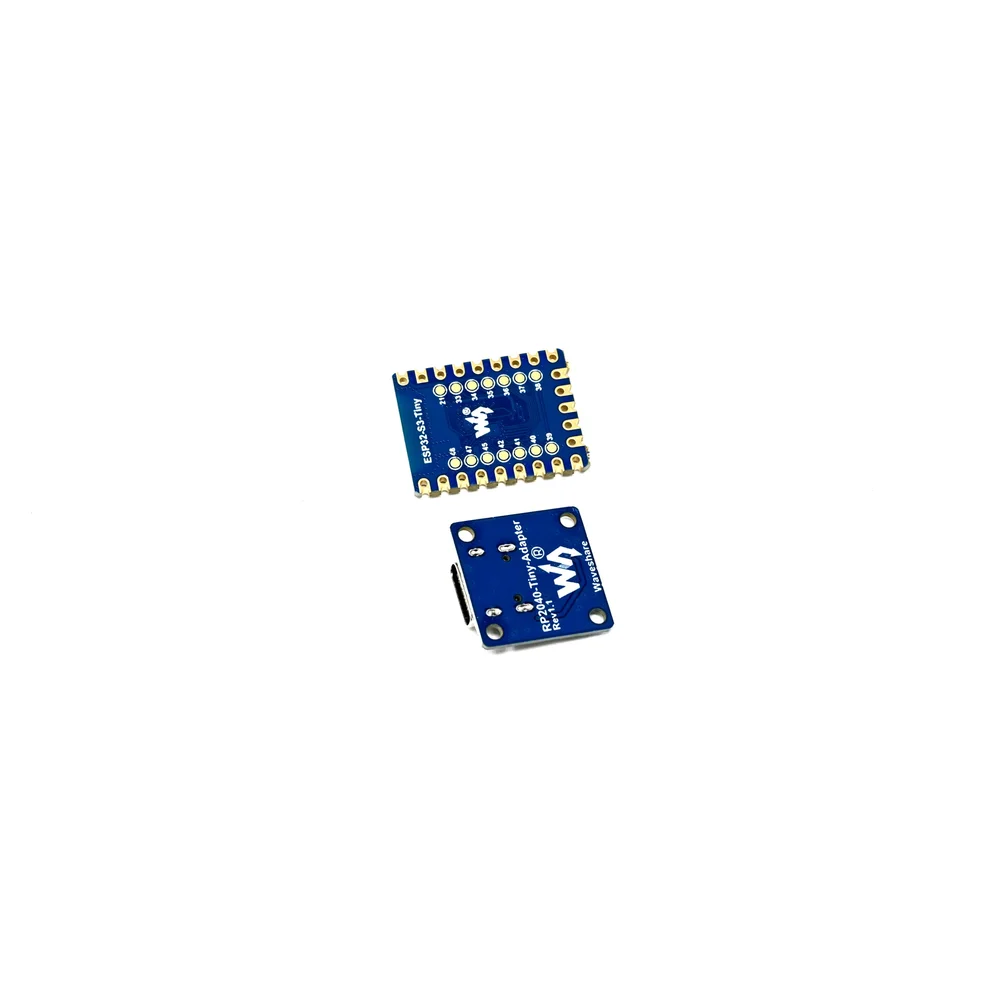

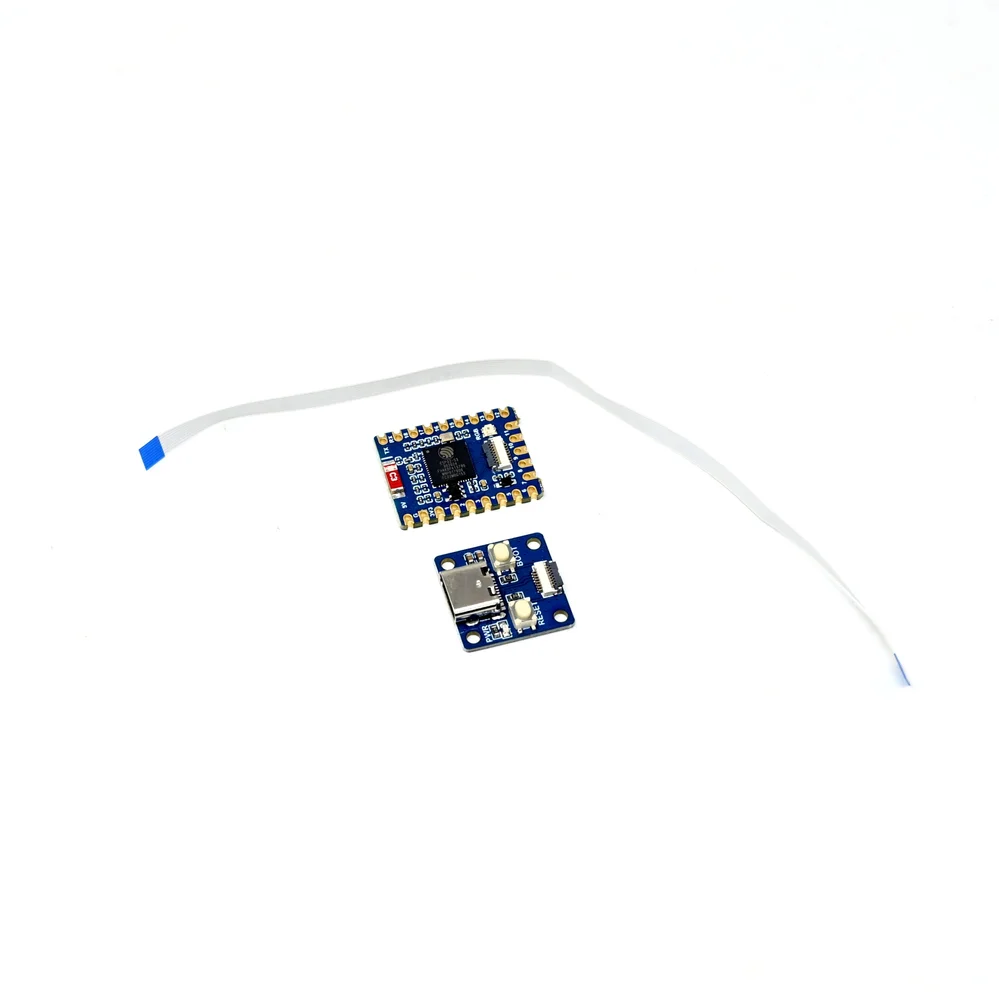

Waveshare ESP32-S3 Mini Development Board w/ ESP32-S3FH4R2

You can program the board using the Espressif ESP-IDF framework, Arduino IDE with the ESP32 board package, or MicroPython. Connect via the optional USB Type-C adapter board to your computer for serial communication and firmware flashing. Ensure you select the correct COM port and board target (e.g., ESP32-S3 Dev Module) in your development environment.

The 2MB PSRAM (Pseudo Static RAM) provides additional volatile memory for data-intensive operations. It is useful for buffering camera frames, audio data, graphics buffers, or complex network packets, which helps prevent heap fragmentation and improves performance in applications that exceed the internal 512KB SRAM.

Yes, the ESP32-S3 chip supports multiple low-power modes including Deep Sleep, Light Sleep, and modem sleep. You can power the board via the 3.3V pin, and by utilizing these sleep states, you can significantly reduce average current consumption for battery-powered IoT sensor nodes and remote monitoring applications.

No, the GPIO pins of the ESP32-S3 are 3.3V logic level only. Connecting them directly to 5V signals can damage the microcontroller. For interfacing with 5V components such as some sensors or displays, you must use a logic level converter or voltage divider circuit to ensure safe and reliable communication.
