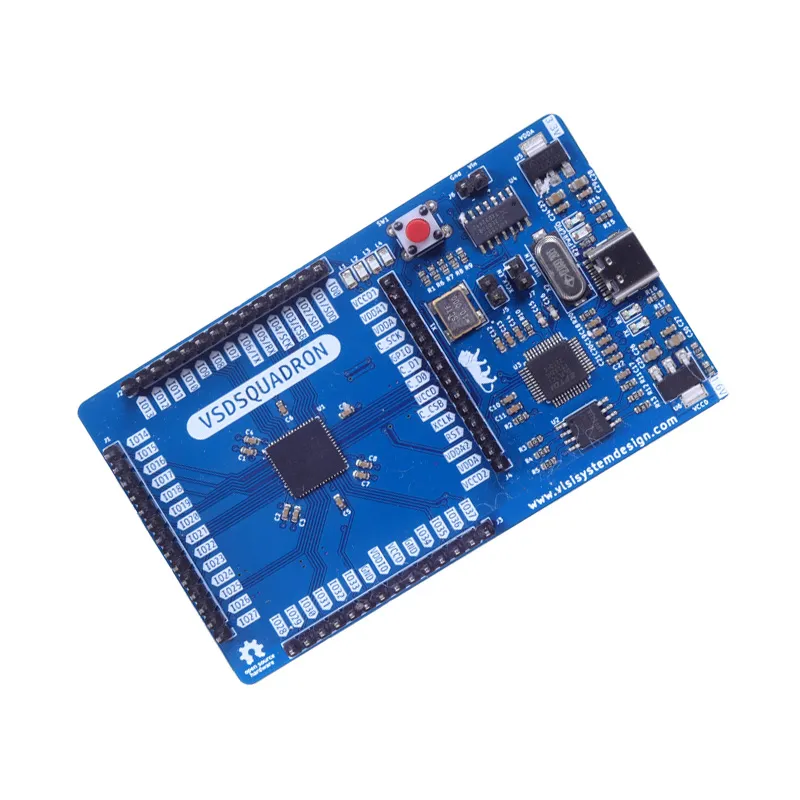

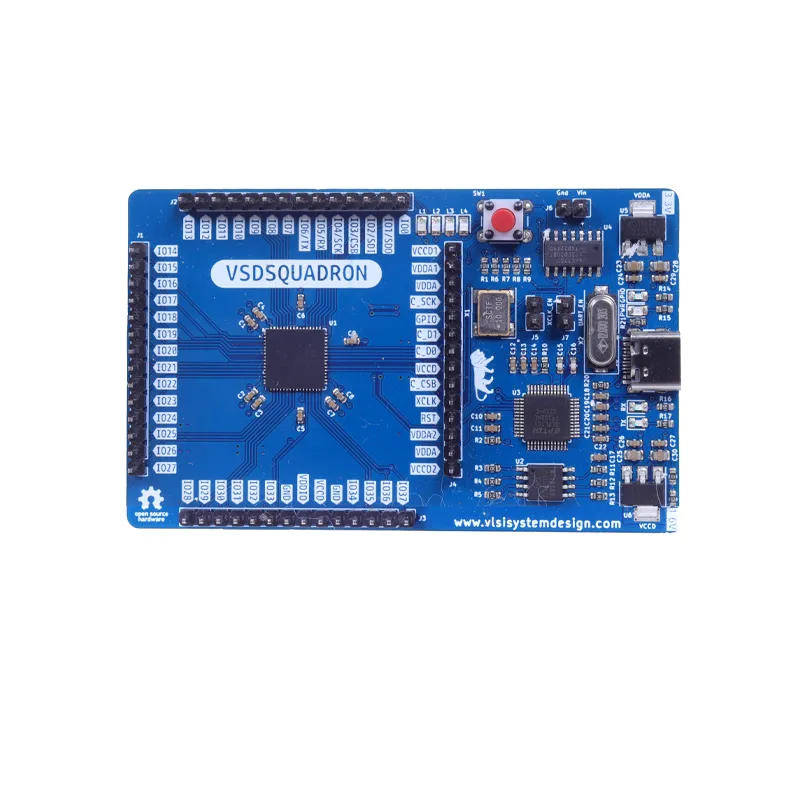

VSDSquadron RISC-V VLSI Educational Board
The VSDSquadron RISC-V VLSI Educational Board is an ideal platform for students and engineers to explore the open-source RISC-V architecture. Featuring the Caravel SoC with an RV32I processor, it provides essential peripherals and USB programming support for hands-on VLSI design and embedded firmware development.
Features
- Features Caravel RISC-V SoC with RV32I ISA for open-source processor exploration.
- Integrates 38 versatile GPIOs, UART, and SPI interfaces for extensive peripheral connectivity.
- Equipped with 4MB SPI flash memory for ample firmware storage.
- Enables easy USB programming via FTDI, supporting seamless development on Linux systems.
- Comes with preloaded GPIO test firmware for immediate, out-of-the-box functionality.
Out of stock
The VSDSquadron RISC-V SoC Educational VLSI Board serves as a comprehensive educational and development platform, meticulously engineered for enthusiasts, students, and engineers delving into the capabilities of the open-source RISC-V architecture. This board is centered around the Caravel SoC, which incorporates a VexRISC processor, providing a robust foundation for embedded systems and VLSI design education.
It integrates a suite of essential peripherals, including a UART for serial communication, SPI for high-speed peripheral interfacing, 38 general-purpose GPIOs for versatile control, and efficient USB-based FTDI programming. Its compact 84x52mm form factor and USB power simplify setup, making it suitable for academic labs, workshops, or personal projects. The board supports seamless programming via Linux, facilitating GPIO testing, UART communication, and advanced VLSI experiments.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 8.4 × 7 × 0.8 cm |
