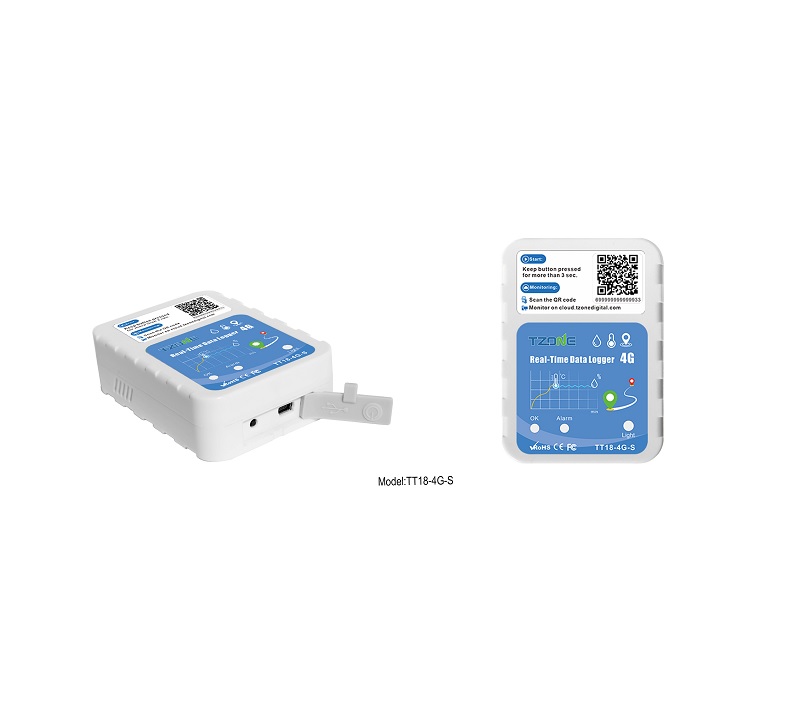

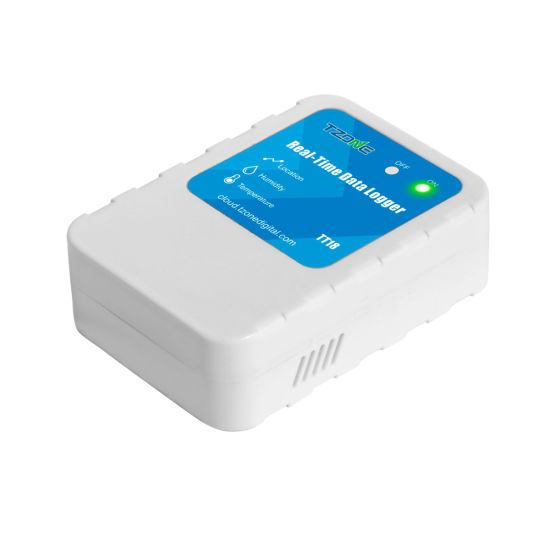

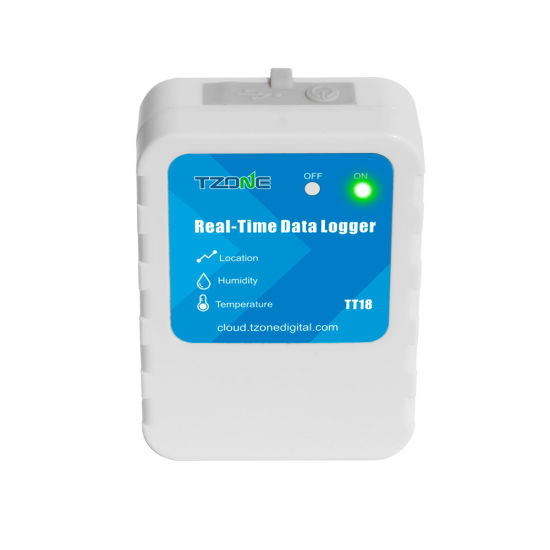

TZONE TZ-TT18-4G-S GSM Real-Time Temperature, Humidity & Location Data Logger

Name: TZONE TZ-TT18-4G-S GSM Real-Time Temperature, Humidity &amp; Location Data Logger
Brand: TZONE
SKU: SENS-3441
Price: 3299.00 INR
Availability: OutOfStock

₹3,299.00 (Inclusive of all taxes)

Out of Stock

The TZONE TZ-TT18-4G-S is a professional-grade GSM/GPRS data logger for real-time monitoring of temperature, relative humidity, and GPS location. It transmits data via 4G/2G networks for remote access and is engineered for cold chain logistics, warehouse environmental control, and asset tracking applications.

Features

Real-time monitoring of temperature, relative humidity, and GPS location data.
Dual-band 4G/2G GSM/GPRS connectivity for wide-area remote data transmission.
Robust IP-rated housing suitable for -20°C to +60°C operating environments.
Integrated high-capacity 3.7V/3000mAh lithium battery for extended field deployment.
Local memory stores up to 20,000 readings for backup and historical analysis.

Out of stock

Get Notified When Available

Description

The TZONE TZ-TT18-4G-S integrates precision temperature and humidity sensing with GPS positioning and cellular communication into a single, compact logger. It employs GSM/GPRS technology on 4G and 2G bands to provide reliable, real-time data transmission to cloud platforms or central monitoring systems, enabling immediate alerts and oversight.

Designed for industrial and logistical applications, its robust construction ensures reliable operation across a wide temperature range from -20°C to +60°C. The built-in 3000mAh lithium battery supports long-term deployment in transit or remote sites, while the onboard memory of 20,000 readings guarantees data integrity even during network outages.

Key Features

Triple-function monitoring: temperature, relative humidity, and GPS coordinates.
Global 4G/2G GSM/GPRS module ensures reliable data transmission in most regions.
High-capacity 3000mAh rechargeable lithium battery for extended standalone operation.
Substantial onboard memory (20,000 readings) for data logging during communication gaps.
Compact, ruggedized enclosure designed for harsh environmental conditions.
Configurable alert thresholds for temperature and humidity via SMS or cloud platform.
Ideal for compliance logging in pharmaceutical, food, and perishable goods logistics.

Applications

Cold chain and pharmaceutical logistics temperature/humidity monitoring.
Warehouse and storage facility environmental condition tracking.
Real-time asset tracking and condition monitoring during transportation.
Food safety compliance and perishable goods quality assurance.
Remote site environmental data logging for HVAC system validation.

Technical Specifications

Model	TZ-TT18-4G-S
Brand	TZONE
Primary Functions	Temperature, Relative Humidity, GPS Location
Communication	4G/2G GSM/GPRS
Operating Temperature	-20°C to +60°C
Power Source	Built-in 3.7V / 3000mAh Lithium Battery
Memory Capacity	20,000 readings
Dimensions (L x W x H)	90 mm x 64 mm x 27 mm
Weight	138 g
Additional Sensor	Light Sensor

Frequently Asked Questions

What communication networks does the TZ-TT18-4G-S support?

The logger supports dual-band 4G and 2G GSM/GPRS networks for data transmission. This ensures wide compatibility and reliable connectivity in most regions for sending real-time temperature, humidity, and location data to a configured server or cloud platform.

What is the battery life of the built-in 3000mAh battery?

Battery life depends on the reporting interval and network signal strength. With typical hourly reporting and good GSM coverage, the 3000mAh lithium battery can support several weeks to months of continuous operation. The device is designed for long-term deployment in field or transit applications.

How is the data accessed and configured?

Data is transmitted via GPRS to a web-based cloud platform or a private server. Configuration, including alarm thresholds and reporting intervals, is typically done through SMS commands or via the manufacturer's web portal, allowing for remote setup and management without physical retrieval of the device.
