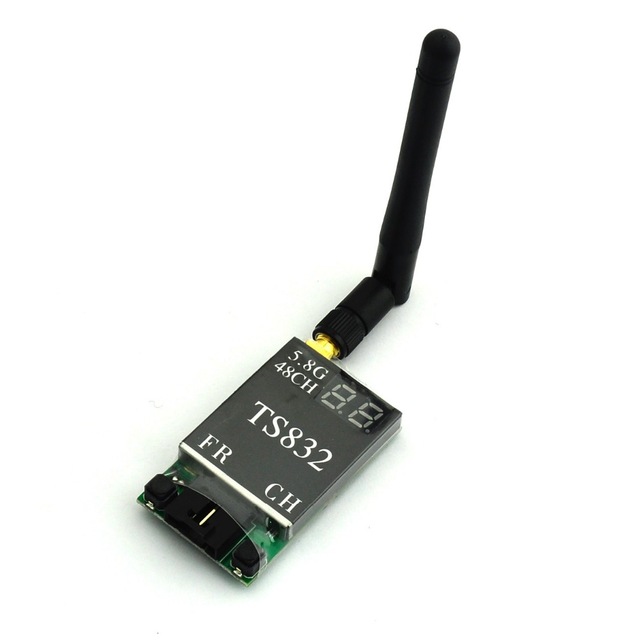

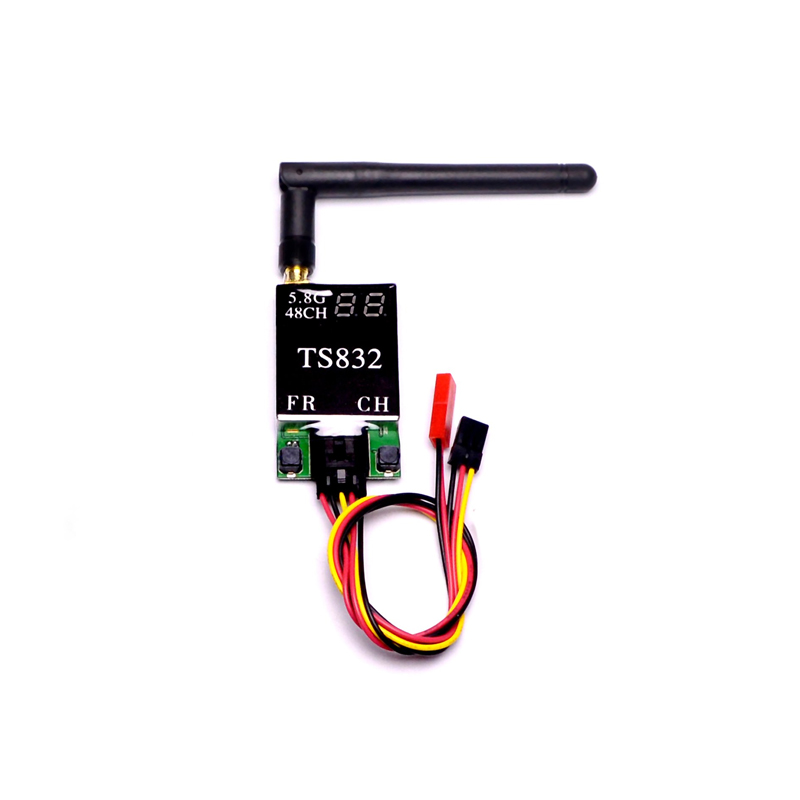

TS832 48Ch 5.8G 600mW Wireless Audio/Video Transmitter - Female RP-SMA
The TS832 is a 5.8GHz 600mW analog video transmitter (VTX) featuring 48 selectable channels and a wide 7-24V input range for flexible integration into FPV drones and RC models. It includes a built-in digital display and push-button for on-the-fly channel selection.
Features
- 600mW output power with 48 channels across A, B, E, and F bands for clear signal transmission.
- Wide 7-24V input voltage range compatible with 2S to 6S LiPo battery configurations.
- Integrated digital display and button for easy channel selection and memory retention.
- Low 220mA operating current for efficient power consumption during flight.
- Includes Female RP-SMA transmitter module and Male RP-SMA antenna connector for direct setup.
Out of stock
The TS832 5.8GHz video transmitter delivers a robust 600mW RF output, designed for reliable analog FPV feed transmission in open areas. Its 48-channel spectrum provides flexibility to avoid interference, compatible with all standard 5.8GHz FPV receivers. The unit operates on a broad 7-24V DC input, making it suitable for a wide array of multirotor and fixed-wing platforms.

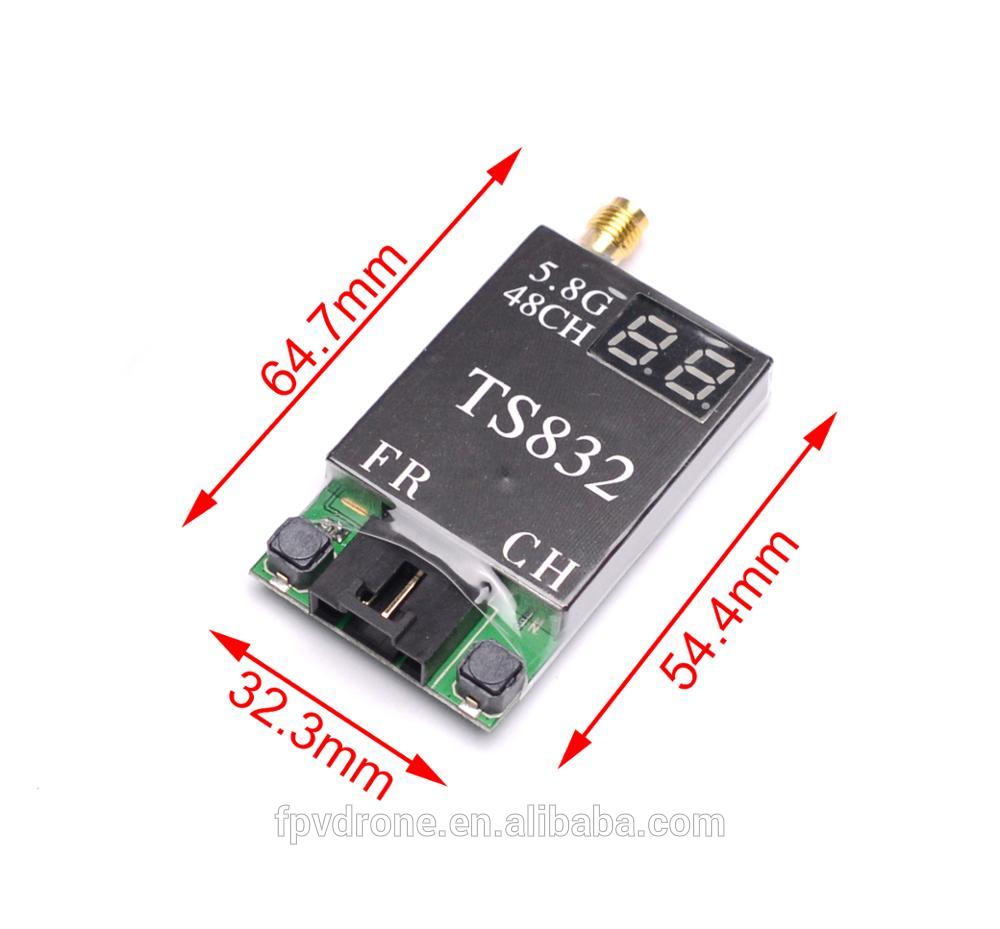

Engineered for user convenience, the VTX incorporates a digital display and tactile button for straightforward channel switching without requiring additional configuration software. Its compact 54x32mm footprint and 22g weight ensure minimal impact on the drone’s center of gravity and overall build profile.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 5.4 × 3.2 cm |
