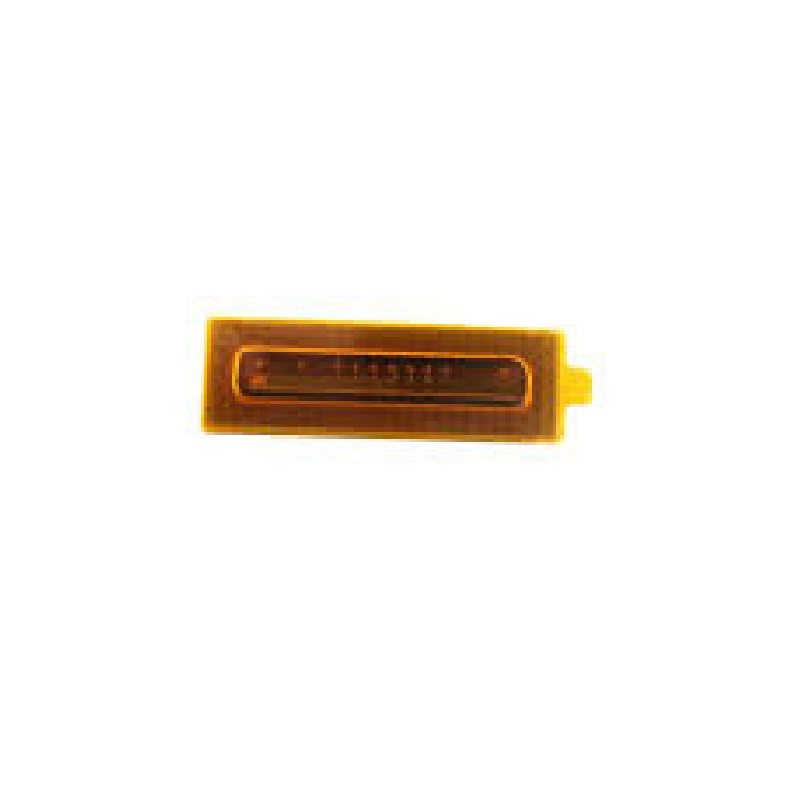

Toshiba TCD1254GFG(8Z,AA2) CCD Image Sensor - QFN-16 Package
The Toshiba TCD1254GFG is a high-sensitivity CCD image sensor in a compact QFN-16 package, designed for precise linear imaging applications. It operates from a 3V supply and is suitable for integration into scanners, spectrometers, and optical measurement systems requiring accurate light capture and signal conversion.
Features
- High-sensitivity CCD linear image sensor for accurate light capture.
- Compact QFN-16 (6x19mm) package for space-constrained designs.
- Wide operating temperature range from -25°C to +60°C.
- Single 3V DC supply voltage simplifies power system design.
- RoHS compliant, meeting environmental and safety standards.
Out of stock
The Toshiba TCD1254GFG is a Charge-Coupled Device (CCD) linear image sensor engineered for high-fidelity optical detection. It converts incident light into precise electrical charge packets, which are sequentially read out through its integrated circuitry, offering excellent signal-to-noise ratio and dynamic range for demanding imaging applications.
Housed in a robust QFN-16 package, the sensor is designed for reliable operation across an industrial temperature range. Its 3V operation makes it compatible with modern low-voltage digital systems, while the specific pin configuration supports direct interfacing with dedicated CCD driver ICs or microcontroller-based timing generation circuits for system integration.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
