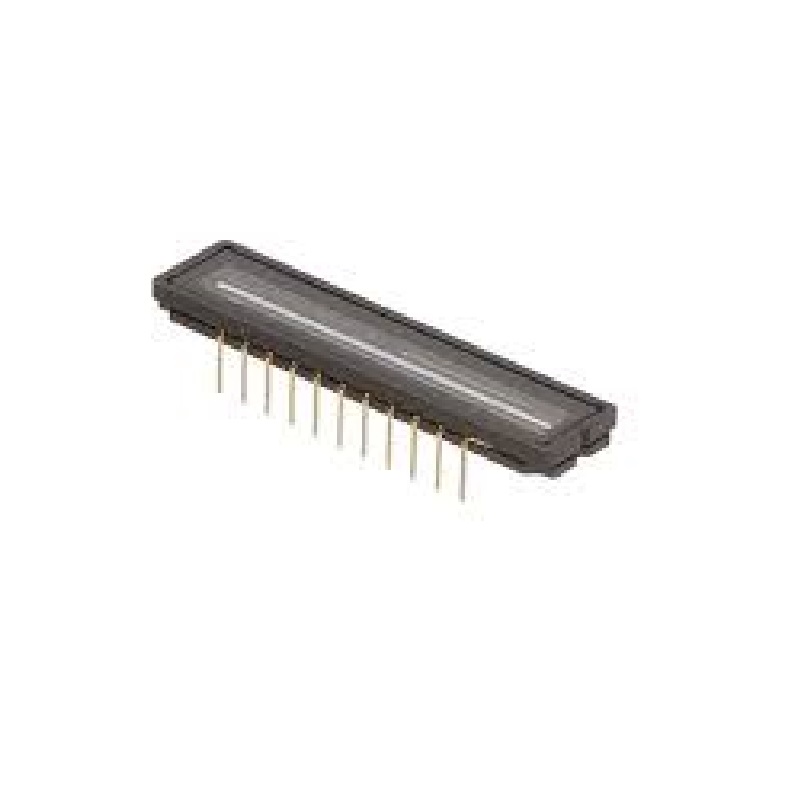

Toshiba TCD1209DG(8Z.W) CCD Image Sensor CDIP-22
The Toshiba TCD1209DG(8Z.W) is a high-sensitivity CCD image sensor in a 22-pin CDIP package, designed for precision imaging applications requiring accurate color capture and a wide dynamic range. It is suitable for integration into industrial inspection systems, scientific instrumentation, and legacy camera designs.
Features
- Toshiba CCD Image Sensor with 22-pin CDIP ceramic package for robust, hermetic sealing.
- High sensitivity and wide dynamic range for accurate image capture in varying light conditions.
- Operates within an industrial temperature range of -25°C to +60°C.
- Moderate power consumption of 400mW, suitable for line-scan and area imaging applications.
- RoHS compliant, ensuring environmental safety and compatibility with modern manufacturing standards.
Out of stock
The Toshiba TCD1209DG is a Charge-Coupled Device (CCD) image sensor that converts incident light into precise electrical charge packets. Its linear or area-array architecture provides high-fidelity signal transfer with low noise, making it ideal for applications demanding high image quality and color accuracy. The sensor’s performance is characterized by its sensitivity and dynamic range, enabling detailed capture in both low-light and high-contrast scenes.
Housed in a ceramic Dual In-line Package (CDIP-22), the sensor offers excellent thermal stability and protection from environmental factors, supporting reliable operation in industrial settings. The electrical interface through its 22 pins facilitates integration with driver circuits and signal processing units for real-time monitoring and image data acquisition.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
