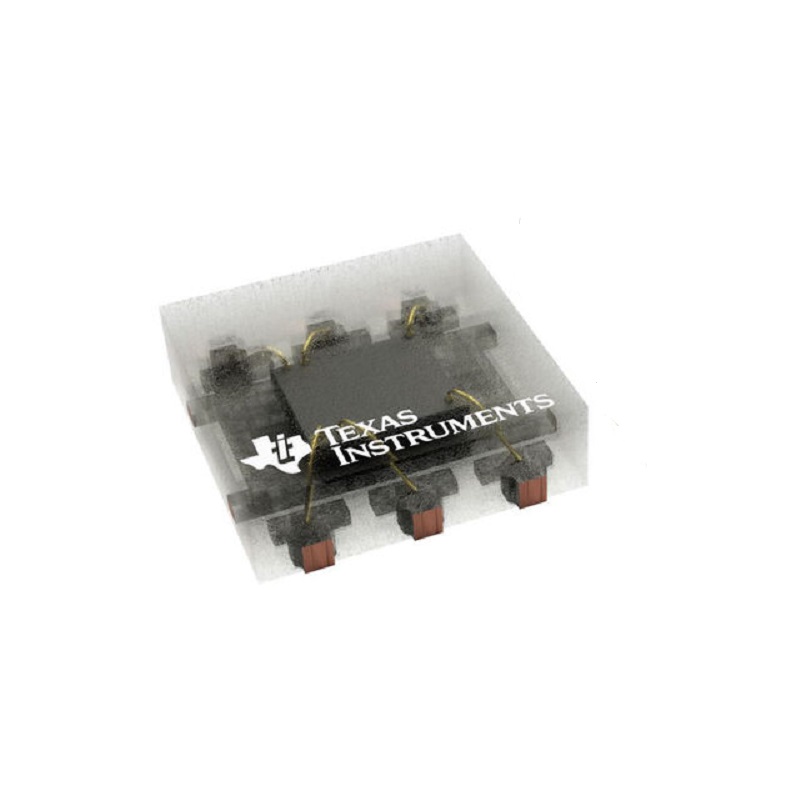

Texas Instruments OPT3001DNPR USON-6-EP Ambient Light Sensor
The Texas Instruments OPT3001DNPR is a high-precision ambient light sensor (ALS) in a USON-6-EP package, designed for 1.6V to 3.6V systems. It provides accurate lux measurements for automatic display brightness control in portable electronics, IoT devices, and industrial systems.
Features
- High-precision ambient light sensor with human-eye spectral response.
- Wide operating voltage range from 1.6V to 3.6V for low-power applications.
- Compact USON-6-EP package (2.1 x 2.1 mm) for space-constrained designs.
- I2C digital interface for easy integration with microcontrollers.
- Extended operating temperature range from -40°C to +85°C.
Out of stock
The OPT3001DNPR is a digital ambient light sensor from Texas Instruments that accurately measures visible light intensity. It features a spectral response closely matched to the human eye, with built-in infrared rejection, ensuring readings are relevant for human-centric applications like display management and lighting control.
This sensor communicates via an I2C interface, providing a direct digital lux output, which simplifies system design by eliminating the need for external signal conditioning or analog-to-digital conversion. Its ultra-compact footprint and low power consumption make it ideal for battery-powered portable devices, smart home sensors, and industrial equipment requiring reliable ambient light monitoring.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 5 cm |
