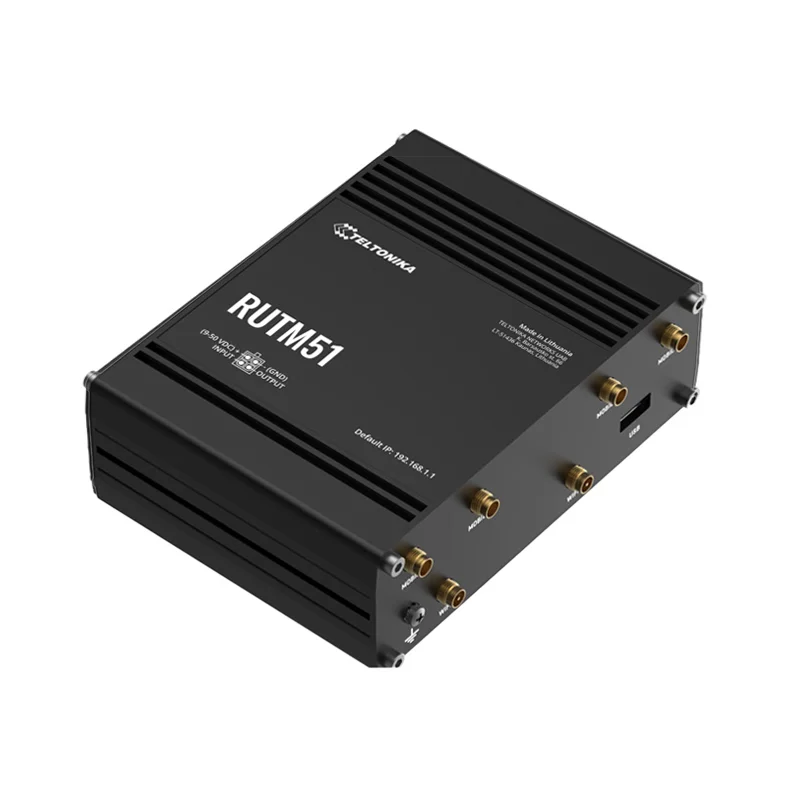

Teltonika RUTM51 Industrial 5G Router w/ 5x Gigabit ETH & Wi-Fi 5

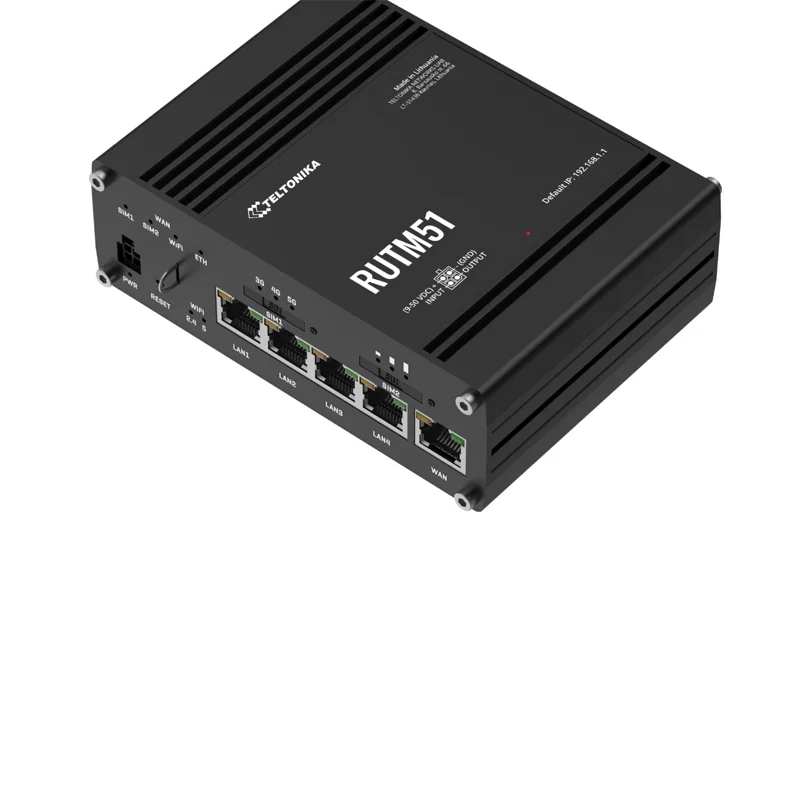

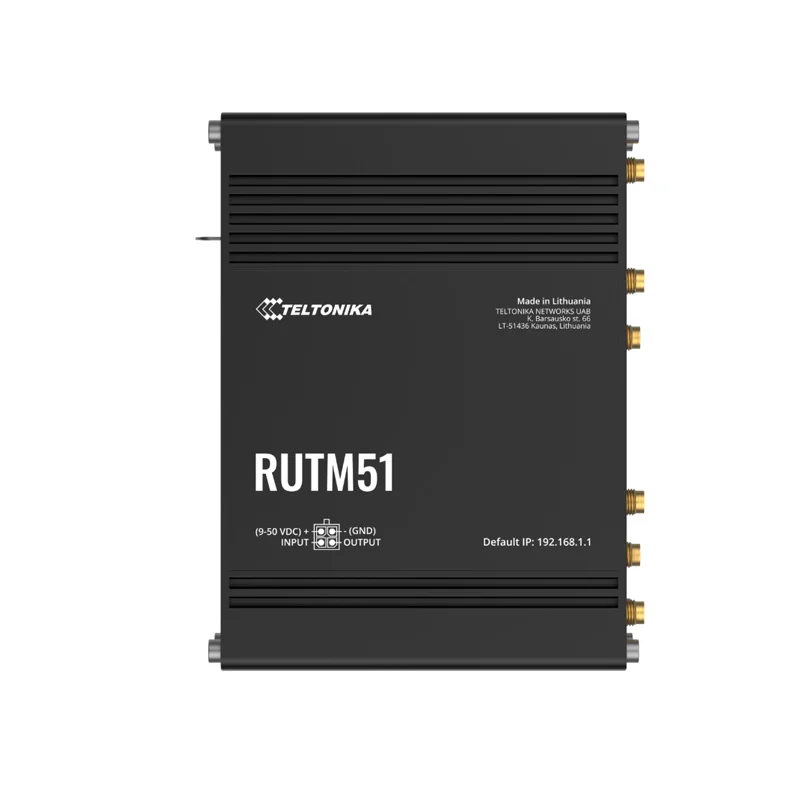

Teltonika RUTM51 Industrial 5G Router w/ 5x Gigabit ETH & Wi-Fi 5 - Image 2
Teltonika RUTM51 Industrial 5G Router w/ 5x Gigabit ETH & Wi-Fi 5 - Image 3

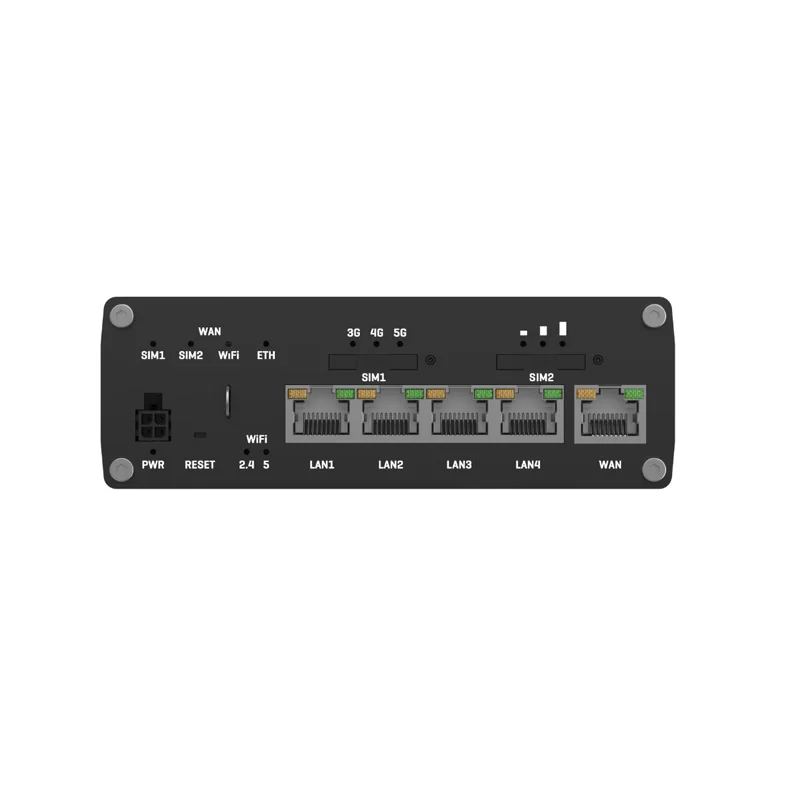

Teltonika RUTM51 Industrial 5G Router w/ 5x Gigabit ETH & Wi-Fi 5 - Image 4

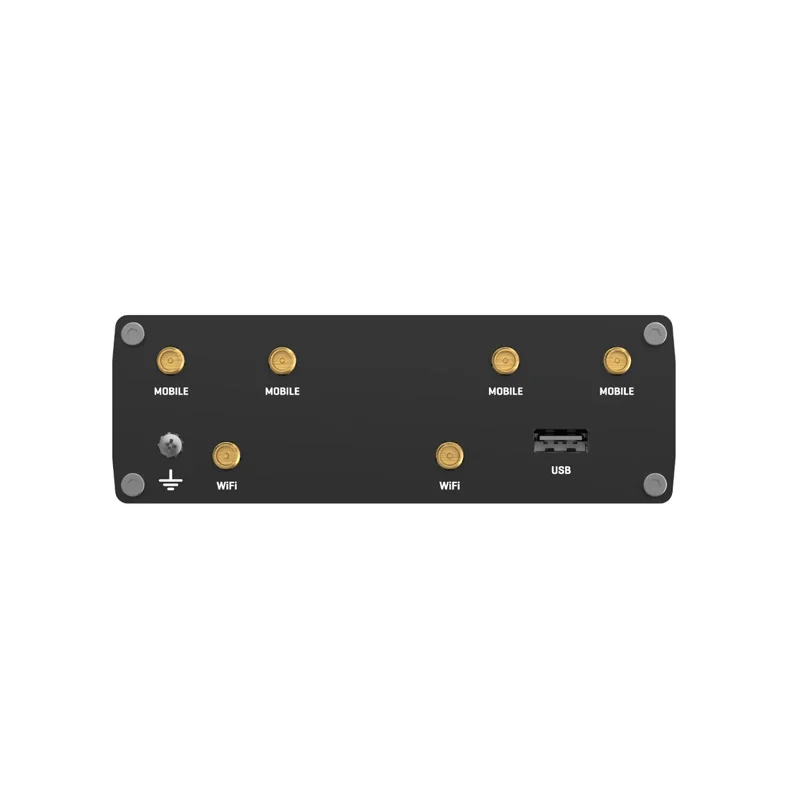

Teltonika RUTM51 Industrial 5G Router w/ 5x Gigabit ETH & Wi-Fi 5 - Image 5
SKU: IOWC-1936
📋 GST Invoice Available

Teltonika RUTM51 Industrial 5G Router w/ 5x Gigabit ETH & Wi-Fi 5

₹45,829.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTM51 is an industrial-grade 5G router powered by RutOS (OpenWrt-based Linux), featuring dual SIM auto-failover, five Gigabit Ethernet ports, and dual-band Wi-Fi 5 for high-speed, reliable connectivity in demanding environments from -40°C to 75°C.

Features

  • Industrial 5G SA/NSA & 4G LTE Cat 12 connectivity with dual SIM auto-failover ensures uninterrupted, high-bandwidth data transfer for critical applications.
  • Five Gigabit Ethernet ports and dual-band Wi-Fi 5 (802.11ac Wave 2) support up to 150 simultaneous users for extensive wired and wireless network deployment.
  • Rugged aluminum housing with IP30 rating and wide operating temperature range (-40°C to 75°C) guarantees reliable performance in harsh industrial settings.
  • Advanced RutOS firmware provides enterprise-grade VPN, firewall, routing, and remote management via Teltonika RMS for secure, configurable network control.
  • Low power consumption (<5W idle) with a wide 9-50 VDC input range and integrated digital I/O (1x DI, 1x DO) supports flexible powering and basic industrial automation tasks.

Out of stock

Description

The Teltonika RUTM51 is engineered as a cost-efficient, high-performance industrial router for data-intensive 5G and LTE applications. Its MediaTek dual-core 880 MHz CPU, coupled with 256 MB RAM and robust RutOS software, delivers advanced routing, VPN tunneling, and security features required for enterprise and IIoT deployments. The router’s architecture prioritizes reliability, with dual SIM slots providing automatic failover to maintain constant WAN connectivity.

Built for resilience, the RUTM51 features an industrial aluminum enclosure rated IP30, capable of operating across an extreme temperature range from -40°C to 75°C. Its comprehensive I/O set includes five Gigabit Ethernet ports for high-speed LAN connectivity, a USB 2.0 port for peripheral expansion, and digital input/output pins for monitoring and control functions. This combination of wireless performance, wired throughput, and physical durability makes it a core networking component for smart cities, remote telemetry, and automated industrial systems.

Key Features

  • Supports 5G Sub-6GHz (Standalone and Non-Standalone modes) with full backward compatibility to 4G LTE Cat 12 for maximum network flexibility and future-proofing.
  • Dual SIM slots with automatic failover and load balancing ensure continuous cellular connectivity, critical for mission-critical industrial and commercial applications.
  • Five Gigabit Ethernet RJ45 ports provide high-speed wired networking for PLCs, IP cameras, servers, and other Ethernet-dependent devices.
  • Dual-band Wi-Fi 5 (802.11ac Wave 2) with MU-MIMO delivers aggregate wireless speeds up to 867 Mbps and supports connections for up to 150 concurrent users.
  • RutOS, a feature-rich OpenWrt-based Linux distribution, offers advanced VPN (OpenVPN, IPsec), firewall, routing protocols, and remote management via Teltonika RMS cloud platform.
  • Industrial-grade design with wide-range 9-50 VDC power input, low idle consumption, aluminum housing, DIN-rail/wall mounting, and extended operating temperature ensures deployment in challenging environments.
  • Integrated digital input and output (1x DI, 1x DO) allow for basic automation tasks like monitoring door sensors or triggering alarms based on network events.

Applications

  • Industrial IoT (IIoT) and SCADA systems for remote monitoring and control of machinery and sensors over 5G/LTE networks.
  • Smart city infrastructure, including traffic management systems, public Wi-Fi hotspots, and environmental monitoring stations.
  • Transportation and fleet management for in-vehicle connectivity, real-time GPS tracking, and CCTV video uplink.
  • Failover and primary WAN connectivity for retail POS systems, branch offices, and temporary construction site networks.
  • Remote telemetry for utilities (water, gas, electricity) and renewable energy sites (solar/wind farms) requiring reliable, high-throughput data backhaul.

Technical Specifications

Model / NameRUTM51
Cellular Connectivity5G Sub-6GHz (SA & NSA), 4G LTE Cat 12
Wi-Fi Protocol802.11 a/b/g/n/ac Wave 2, Dual-Band
CPUMediaTek Dual-Core, 880 MHz
RAM / Flash256 MB DDR3 / 16 MB NOR + 256 MB NAND
Ethernet Ports5 x Gigabit RJ45
USB Port1 x USB 2.0 Type-A
Digital I/O1 x Digital Input, 1 x Digital Output
Antenna Connectors4 x SMA (Cellular), 2 x RP-SMA (Wi-Fi)
Input Voltage9 – 50 VDC
Power Consumption<5 W (Idle), <18 W (Max)
Operating SystemRutOS (OpenWrt-based Linux)
Operating Temperature-40°C to +75°C
Enclosure RatingIP30, Aluminum Housing
Dimensions (L x W x H)132 mm x 44.2 mm
Weight525 g

Frequently Asked Questions

How do I configure the dual SIM functionality on the RUTM51?

Dual SIM setup is managed within the RutOS web interface under the 'Mobile' section. You can configure primary and secondary SIM slots, set failover rules (e.g., switch on signal loss), and define load-balancing policies. The router supports automatic network registration and APN configuration for each SIM. For detailed steps, refer to the Teltonika documentation or RMS cloud platform guides. (Word count: 50)

What is the recommended power supply for the RUTM51 in a vehicle installation?

For vehicle or mobile installations, use a stable 12V or 24V DC source within the router's 9-50 VDC input range. Ensure the power supply is protected against voltage spikes common in automotive environments. The included 18W AC adapter is for stationary use. Connect directly to the terminal block, observing correct polarity. The low idle power consumption (<5W) makes it suitable for battery-backed systems. (Word count: 50)

Can I use the digital input and output for basic automation without programming?

Yes, the digital I/O can be configured via the RutOS web interface without low-level programming. The digital input can monitor a dry contact (e.g., door sensor) and trigger actions like sending an SMS or email alert. The digital output can be controlled manually or set to activate based on network events (e.g., WAN failure) or a schedule. Configuration is done under the 'I/O' section in the system settings. (Word count: 50)

How do I update the RutOS firmware and manage the router remotely?

Firmware updates are performed via the web interface's 'System' > 'Firmware' page, allowing upload of official Teltonika .bin files. For remote management, enable the Teltonika Remote Management System (RMS) service in the router settings. RMS provides cloud-based monitoring, configuration backup, mass deployment tools, and alerts. Ensure the router has an active internet connection and is registered to your RMS account for full remote access. (Word count: 50)

Package Includes

  • 1 x Teltonika RUTM51 Industrial 5G Router
  • 1 x 18 W Power Supply Unit (PSU)
  • 4 x 5G Mobile Antennas (SMA male, swivel)
  • 2 x Wi-Fi Antennas (RP-SMA male, magnetic mount, 1.5 m cable)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x SIM Adapter Kit (Micro-SIM to 3FF/2FF)
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.525 kg
Dimensions 13.2 × 4.42 cm
