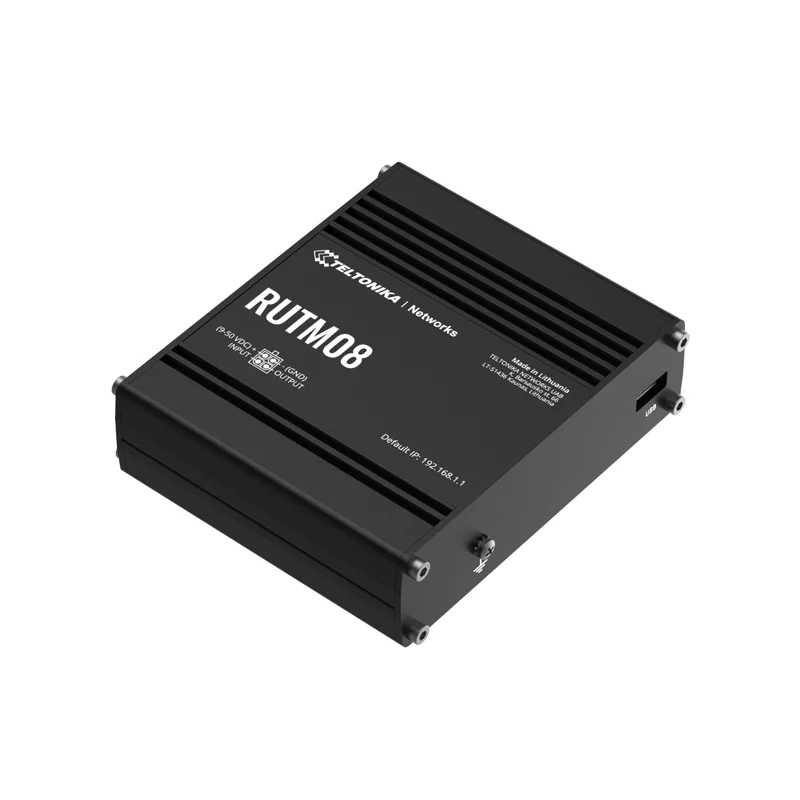

Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet
Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet - Image 2
Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet - Image 3

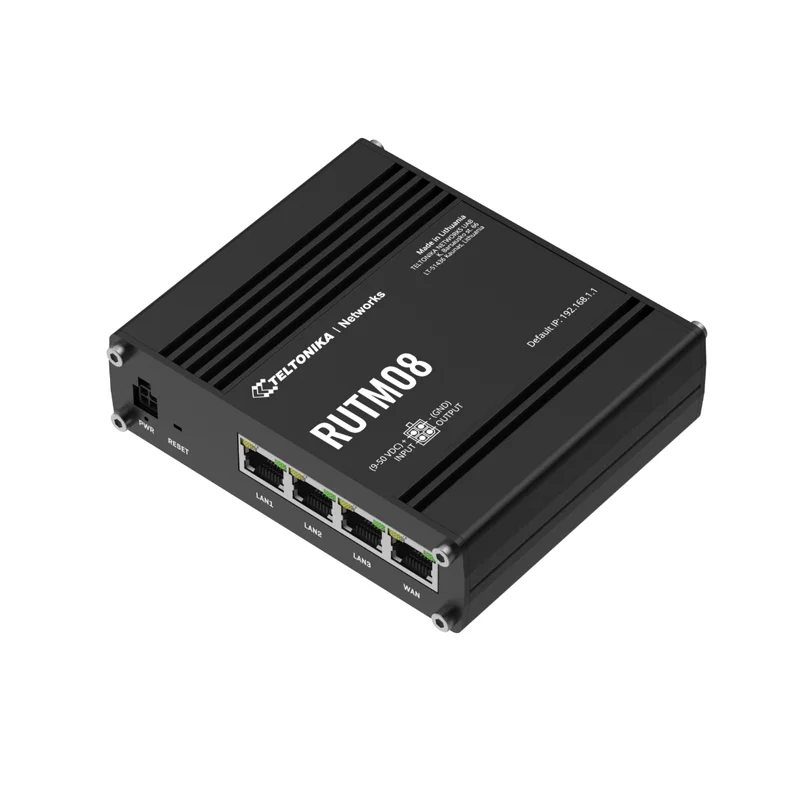

Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet - Image 4

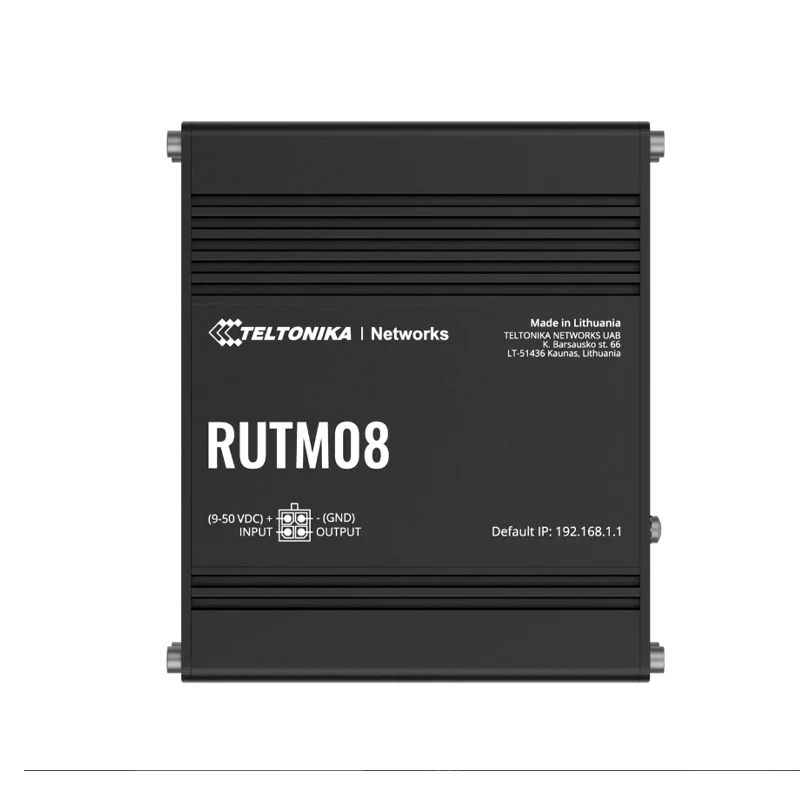

Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet - Image 5
SKU: IOWC-1942
📋 GST Invoice Available

Teltonika RUTM08 Industrial Wired Router, 4-Port Ethernet

₹11,919.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTM08 is an industrial-grade wired router engineered for stable, secure networking in harsh environments. It features four 10/100 Mbps Ethernet ports, supports advanced routing protocols, VPNs, and industrial M2M communication, and is powered by a dual-core 880 MHz CPU for reliable performance.

Features

  • Industrial Wired Networking: Four 10/100 Mbps Ethernet ports (1 WAN, 3 LAN) with support for up to 128 VLANs ensure robust and segmented connectivity for industrial devices.
  • Advanced Routing & VPN: Supports dynamic routing protocols (BGP, OSPF, RIP, EIGRP) and multiple VPN technologies including OpenVPN, IPsec, and WireGuard for secure remote access.
  • Industrial Protocol Gateway: Integrated support for Modbus, MQTT, DNP3, DLMS, and OPC UA enables seamless data exchange between industrial equipment and IT systems.
  • Rugged Industrial Design: Housed in an aluminum chassis with DIN rail and wall-mount options, operating reliably from -40°C to 75°C.
  • Efficient Power Management: Wide 9-50 VDC input range with passive PoE support and low power consumption (<5.5W max) for energy-efficient deployment.

Out of stock

Description

The Teltonika RUTM08 Industrial Wired Router is a dedicated networking core built for automation, energy, transportation, and smart infrastructure projects requiring deterministic wired connectivity. Its MediaTek dual-core 880 MHz processor, coupled with 256 MB of RAM and flash, handles advanced routing tables, multiple VPN tunnels, and industrial protocol translation without bottlenecking data flow between machines and control centers.

Engineered for 24/7 operation in uncontrolled environments, the router’s robust aluminum housing and extended temperature tolerance ensure network availability from factory floors to remote substations. Remote configuration and monitoring are streamlined via the Teltonika Remote Management System (RMS), while integrated firewall, QoS, and load balancing features provide network security and traffic prioritization critical for SCADA and IIoT applications.

Key Features

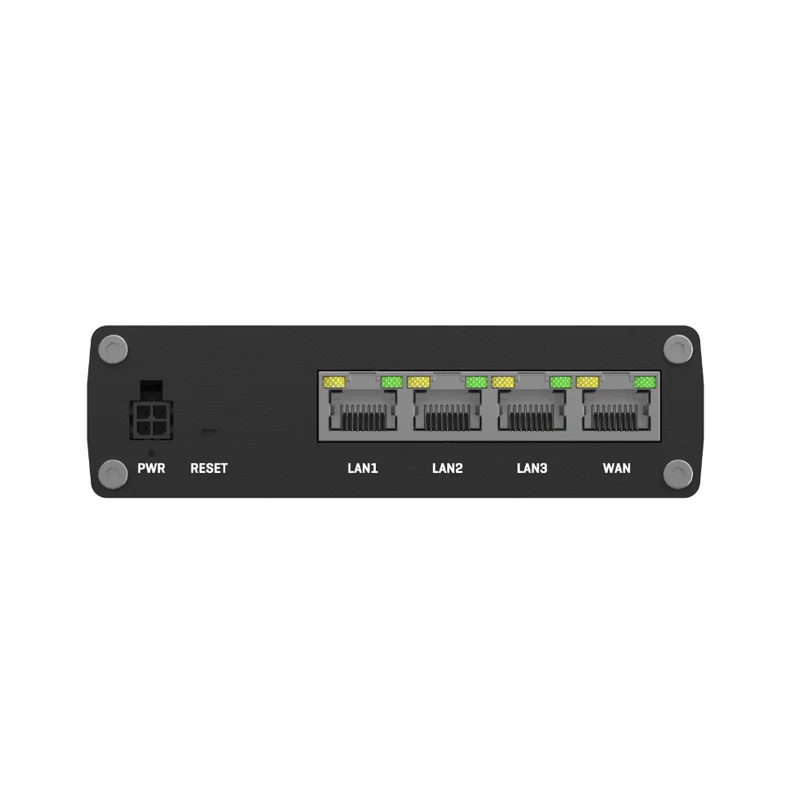

  • Four-port Fast Ethernet switch with dedicated WAN and LAN interfaces for flexible network segmentation.
  • Comprehensive VPN suite supporting OpenVPN, IPsec, WireGuard, ZeroTier, and Tailscale for encrypted site-to-site and remote access tunnels.
  • Native integration of industrial M2M protocols (Modbus TCP/RTU, MQTT, DNP3) acting as a protocol gateway for legacy equipment.
  • Advanced routing engine supporting static routes and dynamic protocols like BGP and OSPF for complex network topologies.
  • Remote device management, monitoring, and firmware updates via Teltonika RMS cloud platform.
  • Robust security features including a stateful firewall, MAC filtering, and access control lists.
  • Wide-range 9-50 VDC power input with passive PoE capability, suitable for various industrial power sources.
  • DIN-rail mountable form factor with wall-mount options for easy installation in control cabinets and enclosures.

Applications

  • Industrial Automation & SCADA: Connects PLCs, HMIs, and sensors in manufacturing plants, providing secure, routed network backbones.
  • Energy & Utility Infrastructure: Serves as a communication gateway in substations, water treatment plants, and renewable energy sites, handling protocols like DNP3 and Modbus.
  • Transportation & Traffic Management: Networks traffic signals, variable message signs, and surveillance cameras in intelligent transportation systems.
  • Building Management Systems (BMS): Integrates HVAC, lighting, and security subsystems over a unified, managed IP network.
  • Smart City & Critical Infrastructure: Provides reliable wired connectivity for public safety networks, environmental monitoring stations, and utility telemetry.

Technical Specifications

Model / NameRUTM08
CPUMediaTek Dual-Core, 880 MHz
RAM256 MB DDR3
Flash Storage16 MB NOR + 256 MB NAND
Ethernet Ports4 × 10/100 Mbps (1 WAN, 3 LAN)
Power over Ethernet (PoE)Passive PoE
Power Input9–50 VDC
Power ConsumptionIdle: < 1.8 W / Max: < 5.5 W
Operating Temperature-40°C to 75°C
MountingDIN Rail, Wall Mount
Dimensions (L×W)115 mm × 95.2 mm
Weight353 g

Frequently Asked Questions

What industrial protocols does the RUTM08 router support natively?

The RUTM08 has built-in support for key industrial M2M protocols including Modbus TCP/RTU for PLC communication, MQTT for lightweight IoT messaging, DNP3 for SCADA in utilities, DLMS for smart metering, and OPC UA for machine-to-machine data exchange. This allows it to act as a protocol converter, bridging legacy industrial equipment to modern IP networks without additional hardware.

How do I configure VPN tunnels on the Teltonika RUTM08?

VPN configuration is managed through the router's web-based interface or via Teltonika RMS. You can set up site-to-site IPsec tunnels, remote access OpenVPN profiles, or modern WireGuard tunnels. Each VPN type has dedicated configuration pages where you input peer addresses, pre-shared keys or certificates, and encryption parameters. The router supports multiple concurrent VPN tunnels for connecting to various remote sites or cloud services securely.

What is the power supply requirement and can it power other devices?

The RUTM08 accepts a wide 9-50 VDC input, compatible with common 12V or 24V industrial power supplies. It features passive PoE output on one of its LAN ports, allowing it to deliver power to a compatible device like a wireless access point or sensor. Ensure the total current draw of the connected device does not exceed the router's power budget, and always use the supplied 18W PSU or a certified equivalent for optimal performance.

Package Includes

  • 1 x Teltonika RUTM08 Industrial Wired Router
  • 1 x 18 W Power Supply Unit (PSU)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x Quick Start Guide / User Manual

Additional Information

Weight 0.353 kg
Dimensions 11.5 × 9.52 cm
