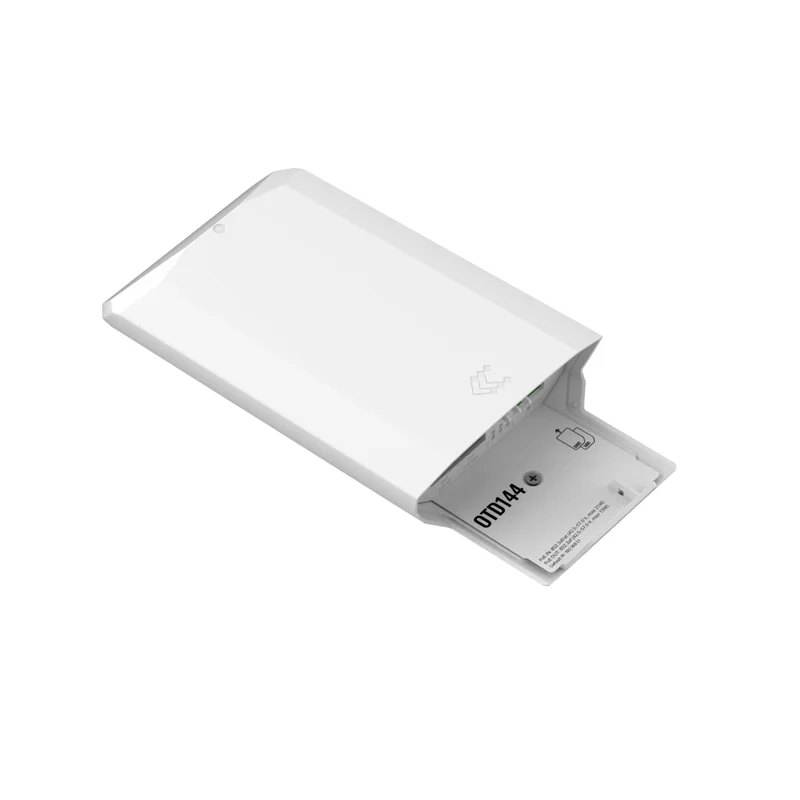

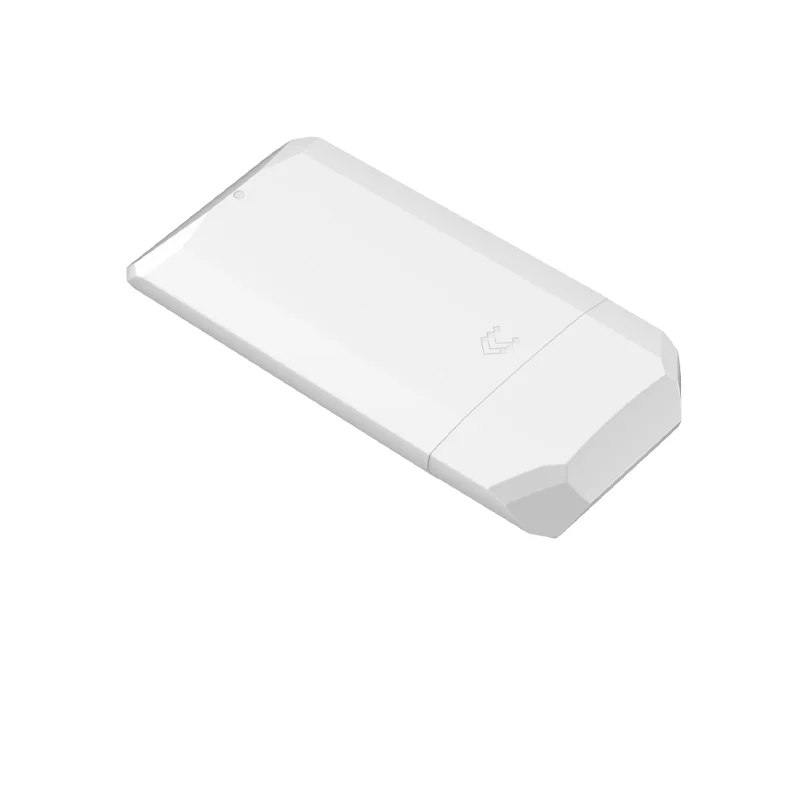

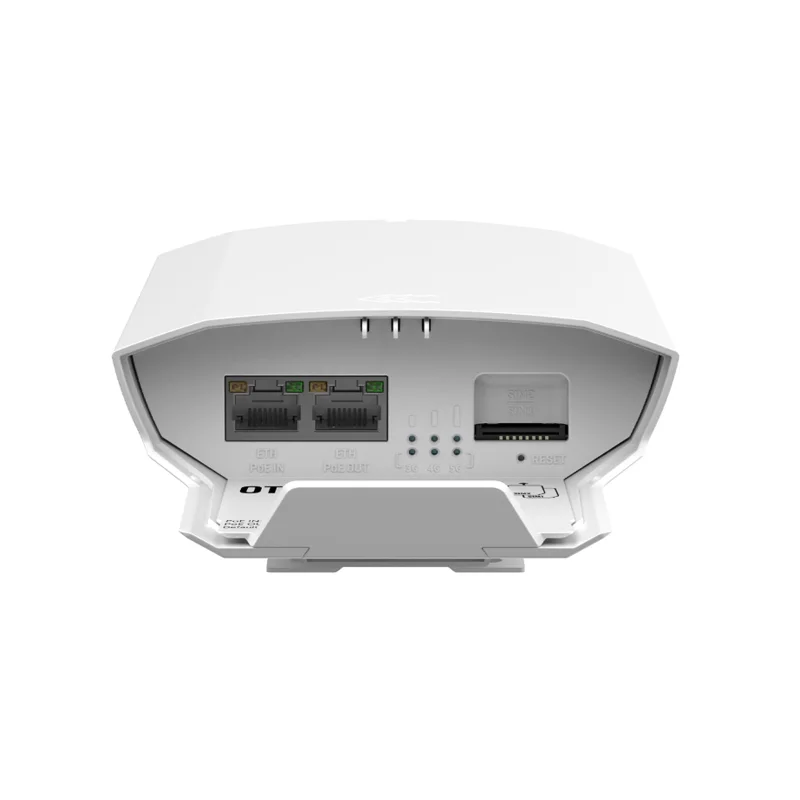

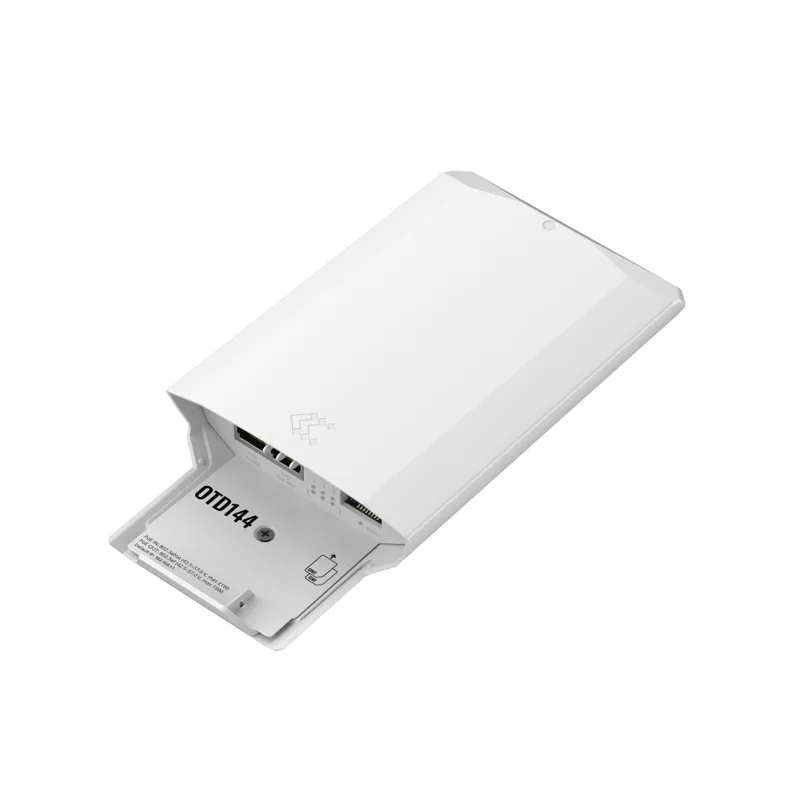

Teltonika OTD144 Outdoor Wi-Fi Router w/ LTE Cat 4, Dual SIM & PoE
Teltonika OTD144 Outdoor Wi-Fi Router w/ LTE Cat 4, Dual SIM & PoE - Image 2
Teltonika OTD144 Outdoor Wi-Fi Router w/ LTE Cat 4, Dual SIM & PoE - Image 3
Teltonika OTD144 Outdoor Wi-Fi Router w/ LTE Cat 4, Dual SIM & PoE - Image 4
SKU: IOWC-1958
📋 GST Invoice Available

Teltonika OTD144 Outdoor Wi-Fi Router w/ LTE Cat 4, Dual SIM & PoE

₹19,709.00 (Inclusive of all taxes)
Out of Stock

The Teltonika OTD144 is an industrial-grade outdoor Wi-Fi router combining LTE Cat 4 cellular backhaul with integrated Wi-Fi 4, designed for reliable internet connectivity in harsh environments. It features dual SIM auto-failover, PoE-powered operation, and remote management via RutOS and Teltonika RMS.

Features

  • Rugged Outdoor Design: IP55-rated enclosure ensures protection against dust and water, with an operating temperature range of -40°C to +75°C for extreme environments.
  • LTE Cat 4 with Dual SIM Failover: Delivers download speeds up to 150 Mbps with automatic SIM switching for maximum network uptime and redundancy.
  • Integrated Wi-Fi & PoE Support: Built-in Wi-Fi 4 supports up to 100 concurrent users, while 802.3af/at PoE-in and PoE-out simplify installation with a single Ethernet cable.
  • Industrial Connectivity: Features two 10/100 Mbps RJ45 Ethernet ports for connecting local devices or networks in remote locations.
  • Advanced Remote Management: Powered by RutOS firmware, offering secure VPN, firewall, hotspot capabilities, and full remote monitoring/configuration via Teltonika RMS.

Out of stock

Description

The Teltonika OTD144 Outdoor Wi-Fi Router is engineered for mission-critical connectivity in industrial, commercial, and remote outdoor settings. Its core architecture integrates a robust LTE Cat 4 modem with dual internal antennas and automatic SIM failover, ensuring a persistent cellular data link even if one network provider fails. This provides a reliable primary or backup internet connection for distributed IoT networks, surveillance systems, and temporary site deployments.

Power and installation are streamlined through Power-over-Ethernet (PoE), supporting both 802.3af/at input and 802.3af output to power the router and potentially another device like a camera. The integrated Wi-Fi 4 access point can handle a significant load of concurrent users, making it suitable for providing guest or operational networks. Managed via the feature-rich RutOS platform, network administrators gain granular control over security policies, VPN tunnels, and traffic routing, all remotely accessible through the Teltonika Remote Management System (RMS) for centralized oversight.

Key Features

  • Industrial Outdoor Resilience: IP55-rated, pole/wall-mountable enclosure built to withstand dust, water ingress, and extreme temperatures from -40°C to +75°C.
  • High-Availability Cellular Connectivity: LTE Cat 4 modem with dual internal antennas and dual SIM slots supporting automatic failover for uninterrupted data service.
  • Simplified PoE-Powered Deployment: Accepts 802.3af/at PoE input (42.5-57 VDC) and provides 802.3af PoE output, enabling single-cable installation for power and data.
  • Integrated Wi-Fi Access Point: Onboard Wi-Fi 4 (802.11n) radio capable of supporting network access for up to 100 concurrent client devices.
  • Secure & Manageable Networking: Runs on Teltonika's RutOS, offering advanced firewall, OpenVPN/IPsec support, hotspot management, and full remote configuration via RMS.
  • Wired Network Expansion: Two 10/100 Mbps Ethernet RJ45 ports for connecting local switches, industrial controllers, or other networked equipment.

Applications

  • Industrial IoT & Remote Telemetry: Provides WAN connectivity for SCADA systems, remote sensors, and telemetry units in oil & gas, utilities, and agriculture.
  • Outdoor Surveillance & Security: Serves as the network backbone for IP camera systems in construction sites, perimeter security, and smart city deployments.
  • Temporary Site Networks: Delivers reliable internet and Wi-Fi for events, pop-up retail locations, and temporary worksites.
  • Transportation & Fleet Connectivity: Enables in-vehicle internet and data logging for public transit, emergency vehicles, and long-haul trucking.
  • Rural & Off-Grid Internet Access: Acts as a primary internet gateway for remote homes, cabins, or community networks using cellular coverage.

Technical Specifications

Cellular Technology4G LTE Cat 4, 3G, 2G
Maximum Data Speed150 Mbps Download / 50 Mbps Upload
SIM SlotsDual Mini-SIM (2FF), Auto Failover
Wi-Fi StandardWi-Fi 4 (802.11n)
Ethernet Ports2 x RJ45 (10/100 Mbps)
PoE SupportPoE In: IEEE 802.3af/at, PoE Out: IEEE 802.3af
Supply Voltage42.5 – 57 V DC (via PoE or DC input)
Power Consumption< 6 W (Router only)
Operating Temperature-40°C to +75°C
Ingress ProtectionIP55
MountingIntegrated Pole/Wall Mount Bracket
Dimensions (LxW)235 mm x 110 mm
Weight315 g

Frequently Asked Questions

How do I power and install the Teltonika OTD144 router?

The OTD144 is designed for simple deployment using Power-over-Ethernet. Connect a standard Ethernet cable from an 802.3af/at compliant PoE switch or injector (providing 42.5-57 VDC) to one of its RJ45 ports. The router can also provide 802.3af PoE output to power another device like a camera. For physical mounting, use the integrated bracket for pole or wall attachment in your desired outdoor location.

How does the dual SIM and automatic failover feature work?

The router has two Mini-SIM (2FF) slots. You can insert SIM cards from two different mobile network operators. The RutOS firmware continuously monitors the primary SIM's connection. If it detects a loss of signal or connectivity failure, it automatically and seamlessly switches the data session to the secondary SIM card, ensuring minimal downtime for critical applications without manual intervention.

What management and configuration options are available for the OTD144?

The device runs Teltonika's proprietary RutOS. You can access the web-based configuration interface locally via its IP address. For remote management, it is fully compatible with the Teltonika Remote Management System (RMS), allowing you to monitor status, update firmware, configure VPN tunnels (OpenVPN/IPsec), set up firewall rules, manage the Wi-Fi hotspot, and adjust all network settings from a centralized cloud dashboard.

Package Includes

  • 1 x Teltonika OTD144 Outdoor Wi-Fi Router
  • 1 x Router Holder / Mounting Bracket
  • 1 x Quick Start Guide

Additional Information

Weight 0.315 kg
Dimensions 23.5 × 11 cm

Related Products

Out of Stock

ODYSSEY-STM32MP135D SBC w/ 4GB eMMC & 4Gb DRAM

5,289.00
Learn More
Out of Stock

EDATEC ED-HMI3020 10.1" Industrial HMI (Pi 5, 4GB, 128G SSD, PoE)

40,359.00
Learn More
Out of Stock

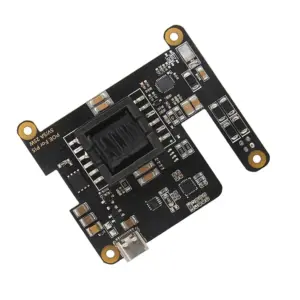

Geekworm Raspberry Pi 5 PoE HAT 802.3af/at (USB-C)
