TE Connectivity SM5391-BCE-S-012.00-451 Differential Pressure Sensor, 0.8-2.49 psi, Dual Analog & I2C Digital Output, SOIC-16 Package
The TE Connectivity SM5391-BCE-S-012.00-451 is a high-precision differential pressure sensor featuring dual analog voltage and 16-bit I2C digital outputs. Designed for 5V systems, its MEMS-based silicon piezoresistive sensing element provides accurate low-pressure measurement for medical, HVAC, and industrial control applications.
Features
- Dual Output Interface: Provides amplified analog voltage and 16-bit digital I2C output for flexible system integration.
- Precision Low-Pressure Sensing: Measures differential pressure from 0.8 psi to 2.49 psi with high accuracy.
- Robust MEMS Technology: Utilizes silicon piezoresistive sensing with CMOS mixed-signal processing for stable, reliable performance.
- Wide Operating Temperature: Functions reliably from -20°C to +85°C, suitable for demanding environments.

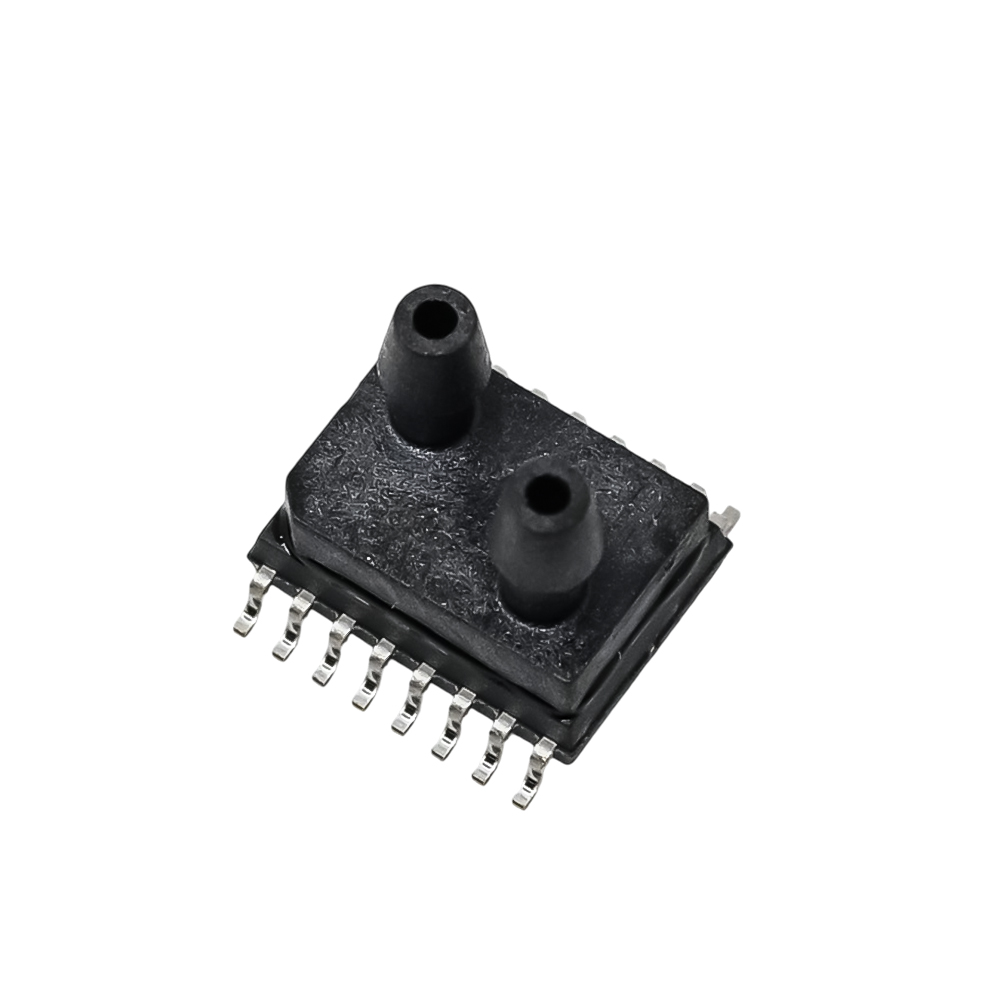

- Surface-Mount Ready: Housed in a compact SOIC-16 package with dual axial barbed ports for easy pneumatic connection.
Out of stock
The SM5391-BCE-S-012.00-451 from TE Connectivity’s SM5000 series is a sophisticated differential pressure sensor engineered for critical low-pressure monitoring. It integrates a MEMS-based silicon piezoresistive sensing element with advanced CMOS mixed-signal circuitry, delivering both a conditioned analog voltage output and a calibrated 16-bit digital signal via I2C interface. This dual-output architecture allows for direct analog connection to data acquisition systems or digital communication with microcontrollers like Arduino, Raspberry Pi, or industrial PLCs.
Operating from a 4.75V to 5.25V supply, the sensor is designed for stability and low total error band across its specified pressure range. The SOIC-16 surface-mount package includes integrated dual barbed ports, facilitating secure tubing connections for pneumatic systems. Its construction ensures long-term reliability and resistance to environmental factors, making it a core component for applications requiring precise differential pressure feedback.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1 cm |
